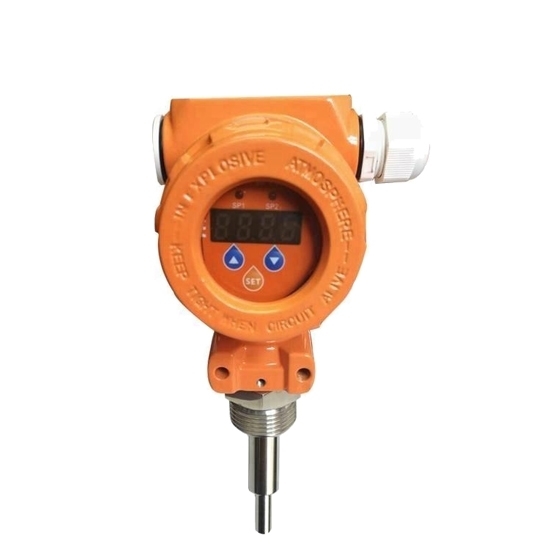

    Thermal Dispersion Flow Switch, G1/2 or G1/4 Thread

    5 out of 5 based on 1 reviews | Write a review
    $152.62
    Buy best thermal flow switch with the measuring range of water 3-300cm/s, gas 200-3000cm/s, oil 3-300cm/s. Liquid, air, oil can be measured, accurate to ±1-±10cm/s. G1/2, G1/4 male thread or G1 thread, 100 bar working pressure, 15-60mm sensor length, PNP/ NPN/ relay/ 4-20mA output signal.
    SKU: ATO-RMD-FE1
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    ATO thermal dispersion flow switch used the precision electronic components, reliable and stable circuit design, which are widely used in aerospace, automotive, military and other high-tech fields, making the flow signal more accurate and stable.

    Specification

    Model ATO-RMD-FE1
    Media type Liquid, Air, Oil
    Measuring range Water 3-300cm/s, Gas 200-3000cm/s, Oil 3-300cm/s
    Accuracy ±1 - ±10cm/s
    Settling time 3 minutes
    Working pressure 100bar
    Medium temperature -20℃ to 80℃
    Thread G1/2, G1/4 Male Thread, G1 Thread
    Power 24VDC, 110VAC, 220VAC
    Output signal PNP/ NPN/ Relay/ 4-20mA
    Sensor length 15mm, 20mm, 30mm, 40mm, 60mm
    Setting Button
    Consumption current <80mA
    Display LED Digital Display
    Response time 2 (2-10)s
    Max.temperature gradient of medium 300K/min
    Protect Reverse/ Short/ Overload
    Protection grade Ip67
    Power connector M12 with 1m cable
    Material

    Sensor: ANSI316L

    Probe: Stainless Steel

    Load

    Current: 250mA

    Relay: 30VDC/5A, 85-265VAC/5A, 120-370VAC/5A

    Net weight 1kg

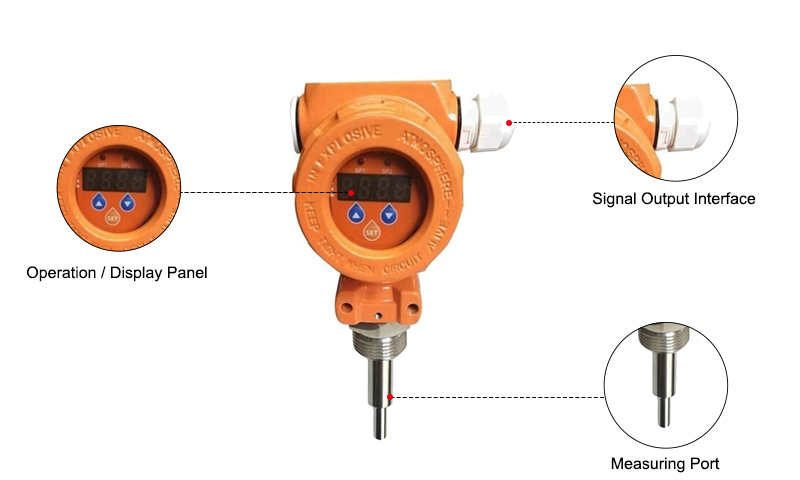

    Details

    Details of ATO thermal dispersion flow switch Details of ATO thermal dispersion flow switch

    Standard terminal

    Simple and quick operation

    Waterproof terminal

    Effectively isolate the outside water vapor into the inside

    Details of thermal dispersion flow switch Details of ATO thermal dispersion flow switch

    High quality protective housing cast aluminum housing

    Good shock resistance applied to harsh working condition

    Exquisite turner technology

    Carefully polished, the thermal dispersion flow switch is more beautiful and scratch resistant

    Thermal dispersion flow switch installation diagram

    Thermal dispersion flow switch installation diagram

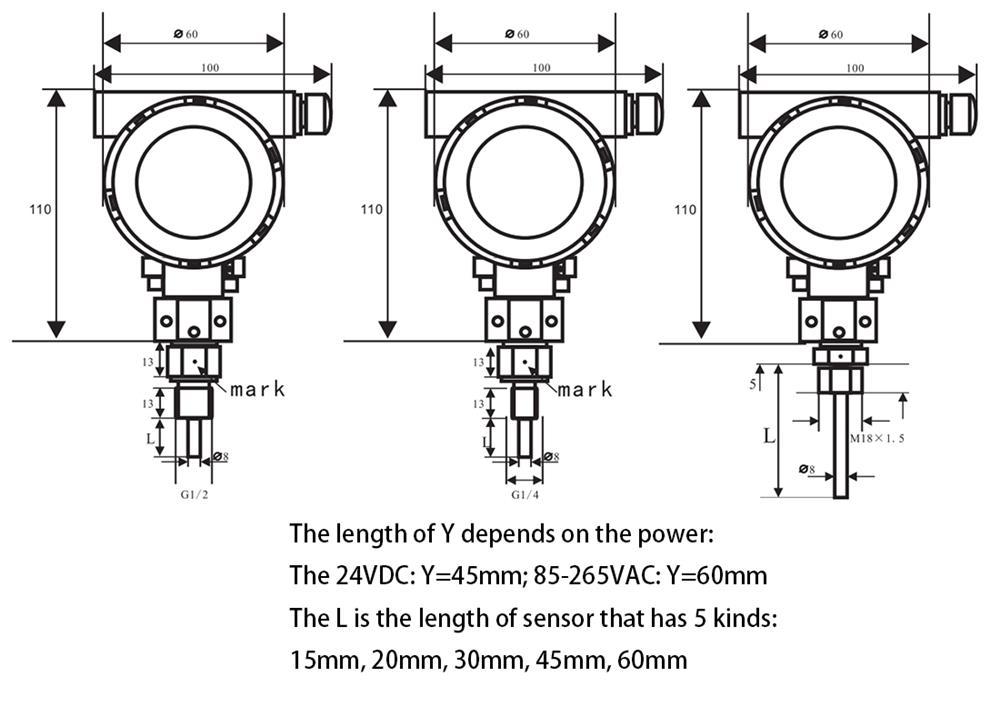

    Thermal dispersion flow switch dimension diagram

    Thermal dispersion flow switch dimension diagram

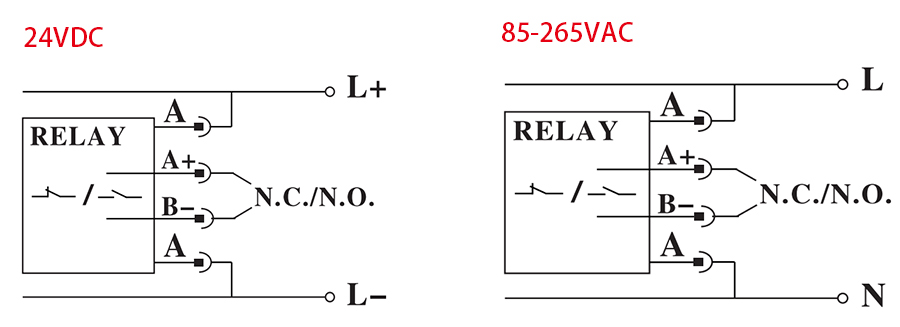

    Thermal dispersion flow switch wiring diagram

    Thermal dispersion flow switch wiring diagram

    Tips: What is ATO thermal dispersion flow switch?

    The ATO thermal dispersion flow switch is designed based on the principle that the temperature change of the probe produces a difference. A self-heating sensor and two thermal sensors are built in the probe, and the probe is in contact with the medium. When the thermal dispersion flow switch is working, the self-heating sensor emits constant heat. When there is no medium flowing in the pipeline, the heat received by the thermal sensor is a constant value. When there is a medium flowing in the pipeline, the heat received by the thermal sensor will change with the flow rate of the medium. The thermal sensor converts the temperature difference signal into an electrical signal. When the flow rate reaches a certain set point, the thermal flow switch outputs signal.

    The thermal dispersion flow switch has the advantages of no movable parts, can be switched at very low flow, withstand high pressure, and can be used for pipes of different nominal diameters. Part of the thermal dispersion flow switch also has the function of simulating and displaying the flow. The thermal dispersion liquid flow switch can be used to monitor the flow rate of the fluid in the pipeline, monitor the flow interruption or prevent the idling of the pump. Thermal dispersion flow switches are widely used in various industries where it is necessary to monitor the flow rate of fluid in the pipeline or protect important equipment when the liquid flow fails, such as protecting water pumps, monitoring lubricating oil circuits, refrigeration and heating circuits, monitoring pipeline rupture, monitoring leakage, etc.
