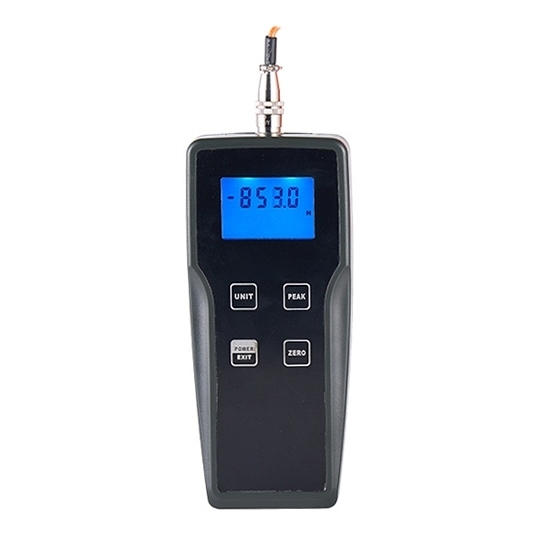

Digital Weld Force Gauge, 10kg/100kg/1000kg

Write a review

$1,428.92

High-precision digital weld force gauge with ±0.2% FS accuracy, peak hold function, and large LCD display for clear readings. Supports unit conversion (kgf, gf, lbf) and real-time/peak value measurement. Ideal for material testing machines, test benches, and automated systems. Available in 10kg, 100kg, and 1000kg ranges with battery or 5V DC power supply.

Measuring Range *

SKU: ATO-FG-WPG

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Digital weld force meter for measuring force (tension/compression) and weight in industrial testing and quality control. Suitable for engineers, technicians, and QC teams in material testing, production lines, test benches, and automated systems. High accuracy and peak hold function for capturing maximum force values.

Specification

Model	ATO-WPG-104-10KG	ATO-WPG-104-100KG	ATO-WPG-104-1000KG
Measurement Range	±10kgf/ ±98N/ ±22Lbf	±100kgf/ ±980N/ ±220Lbf	±1000kgf/ ±9800N/ ±2200Lbf
Resolution	0.01kgf (<100kgf)/ 0.1kgf (≥100kgf)	0.01kgf (<100kgf)/ 0.1kgf (≥100kgf)	0.01kgf (<100kgf)/ 0.1kgf (≥100kgf)
Accuracy	Class 0.2
Precision	±0.2% F.S. (Full Scale) ±1 digit (peak)
Unit	kgf, gf, lbf
Measurable Values	Peak value, Real-time value
Display	Large LCD screen
Power-Off Mode	Auto shut-off after 10 minutes or manual shut-off
Allowable Load	150% F.S. (audible alarm when exceeding 110% F.S.)
Power Supply	2 × AA batteries or 5V DC power supply
Operating Temperature	0–40°C
Operating Humidity	<80%
Working Environment	Free from vibration sources and corrosive media
Dimensions	Main Unit: 170 × 80 × 36 mm; Sensor: 268 × 44.6 mm

Feature

High-Precision Measurement System: Digital weld force gauge is a microcomputer-based digital force measurement system designed for both static and dynamic applications.
Ultra-High Accuracy: Delivers measurement accuracy up to ≤±0.02% for dependable testing and calibration results.
Multi-Sensor Compatibility: Digital weld force meter supports both force gauges (pressure) and load cells (weight/strain) for versatile measurement needs.
Multi-Unit Conversion: Switchable units including N, kg, and lb with automatic conversion for flexible operation.
Peak Hold Function: Weld compression force gauge captures and retains the maximum force value until manually reset for precise analysis.
Clear LCD Display: Large LCD screen ensures clear, easy-to-read results with no parallax error.
Smart Power Management: Weld tension force gauge features automatic shut-off after 10 minutes of inactivity or manual power-off for improved energy efficiency.
Flexible Power Supply: Powered by AA batteries or 5V DC external input for convenient use in different environments.
Wide Industrial Applications: Digital welding force gauge is ideal for material testing machines, test benches, printing equipment, and automation systems.
Stable Long-Term Performance: Anti-thermal drift design combined with 16-bit A/D conversion ensures consistent and stable measurements.

Detail

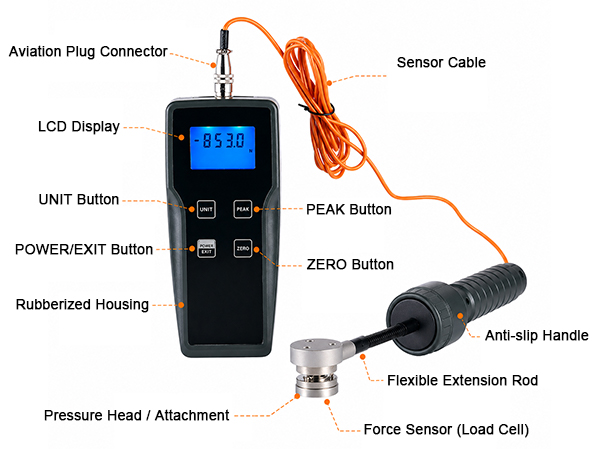

Weld force gauge detail

Packaging

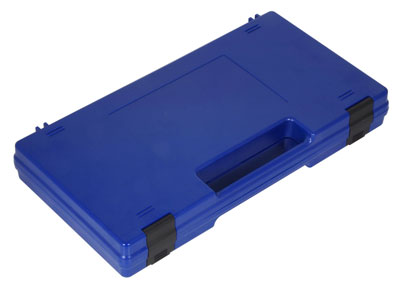

Weld force gauge packaging

Tips: Is the digital weld force gauge easy to operate?

Yes. The digital weld force gauge is designed for simple, plug-and-play operation, making it easy to use even without specialized training. Users can start measuring immediately after power-on, with a straightforward interface that supports fast setup and efficient on-site testing. The clear LCD display with optional backlight ensures excellent visibility in both bright and low-light industrial environments, helping operators read data quickly and accurately during welding or production processes.
