    0.5 HP Pool Pump, 220V / 380V

    5 out of 5 based on 2 reviews | Write a review
    Reasonable price pool pump with 0.5 hp for sale online. 220V and 380V voltage can be chosen. The maximum lift of the swimming pool pump is 8 meters and the port size is 50 mm. Swimming pool with anti rust cast-aluminum motor cover, fast heat dissipation. Pool pump widely used in aquaculture and water project.
    SKU: ATO-PP-05HP
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    0.5 hp pool pump with cheap price for sale. Pool pump adopts 100% copper motor. The medium temperature of swimming pool submersible pump between 5 ℃ and 50 ℃.


    • Magnificent flow rate and lift, the core energy of water circulating, 2-3m suction lift.
    • Free-tool filter cover design, easy to maintenance.
    • IP55 protection level, with none-leaky design.
    • 100% copper wire motor, 24 hours running.
    • Silicone sealing ring, cover all watering section, enhance pump sealing system.
    • Engineering plastic body, pump can be effectively protected under bad weather, long service life.
    • Anti rust cast-aluminum motor cover,fast heat dissipation; PPO plastic steel material impeller, resist high temperature and corrosion.


    • Model: ATO-FQS-370
    • Voltage: 220V (1 or 3 phase) / 380V (3 phase)
    • Frequency: 50 Hz / 60 Hz
    • Power: 0.5 HP (0.37 kW)
    • Hmax: 8m
    • Qmax: 11 m3/h
    • Port Size: 50 mm
    • Motor: copper motor
    • Medium Temperature: 5 ℃ - 50 ℃
    • Protection Level: IP55
    • Weight: 10 kg
    • Certification: CE

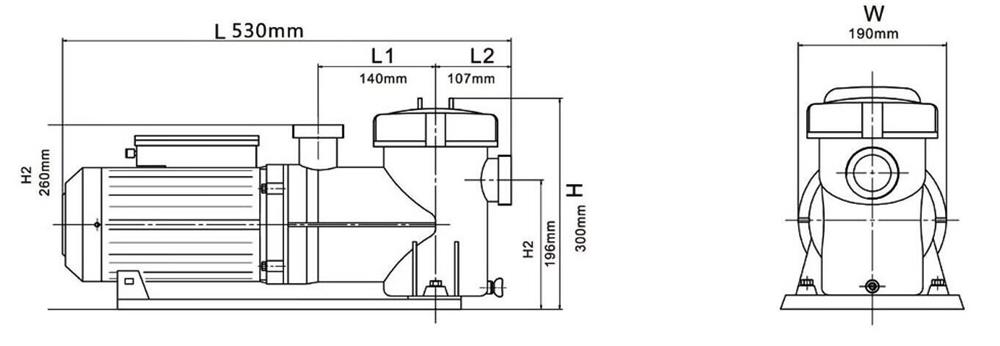

    Dimension (Unit: mm)

    0.5 hp variable speed pool pump structure


    Variable speed pool pump FQS structure

    01: plastic spanner 02: lid lock ring 03: lid 04: O' ring 05: basket
    06: union nut 07: union bushing 08: O' ring 09: pump body 10: O' ring
    11: drain plug 12: nut 13: gasket 14: screw 15: base
    16: O' ring 17: screw 18: diffuser 19: impeller 20: O' ring
    21: shaft seal 22: flange 23: screw 24: flange 25: R ejection water ring
    26: screw 27: motor 28: junction box 29: electric current safeguard


    Flow Diagram:

    FQS series pool pump flow diagram

    Tips: How to Use Pool Pump?

    • Before use, check whether the bolts are loose and the power cables and plugs are intact.
    • In order to prevent electric shock accident, it is necessary to install leakage circuit breaker or electric shock security device and other corresponding security measures.
    • The working voltage range of the pump must be +10%, -10% of the rated voltage, otherwise long-term use will make the motor coil hot, the motor service life is shortened or caused by burning. If the electric pump is far away from the power supply, the power supply line should be thickened appropriately, otherwise the voltage will be used to drop and cannot run.
    • Close the power switch, make the pump idle for about 2 minutes, check the start, operation is normal, steering is correct.
