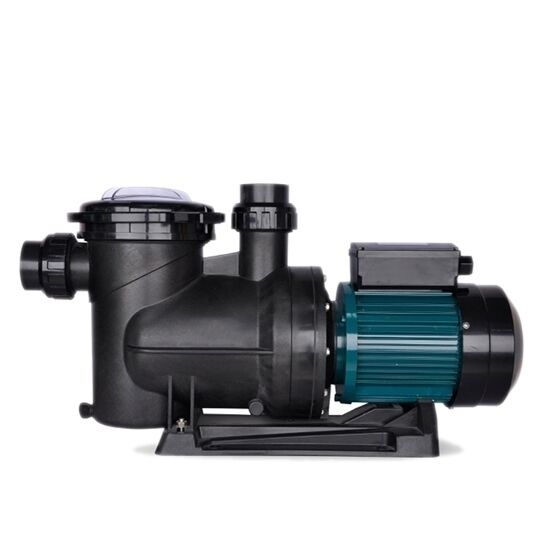

    2 HP Pool Pump, 220V / 380V

    5 out of 5 based on 2 reviews | Write a review
    2 hp pool pump with reasonable price and copper wire motor. Magnificent flow rate and lift, lift can be reach 16m. IP55 protection level and none-leaky design of swimming pool pump. Silicone sealing ring, cover all watering section,enhance swimming pool pump sealing system. Pool pump often used in large size swimming plll and water project.
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    Economical price 2 hp pool pump with 16 meters head for sale. Swimming pool pump often used in large size swimming plll, water park and water project. Silicone sealing ring, cover all watering section, enhance swimming pool pump sealing system.


    • Magnificent flow rate and lift, the core energy of water circulating, 2-3m suction lift.
    • Free-tool filter cover design, easy to maintenance.
    • IP55 protection level, with none-leaky design.
    • 100% copper wire motor, 24 hours running.
    • Silicone sealing ring, cover all watering section, enhance pump sealing system.
    • Engineering plastic body, pump can be effectively protected under bad weather, long service life.
    • Anti rust cast-aluminum motor cover,fast heat dissipation; PPO plastic steel material impeller, resist high temperature and corrosion.


    • Model: ATO-FQS-1500
    • Voltage: 220V (1 or 3 phase) / 380V (3 phase)
    • Frequency: 50 Hz / 60 Hz
    • Power: 2 HP (1.5 kW)
    • Hmax: 16m
    • Qmax: 25 m3/h
    • Port Size: 50 mm
    • Motor: copper motor
    • Medium Temperature: 5 ℃ - 50 ℃
    • Protection Level: IP55
    • Weight: 17 kg

    Dimension (Unit: mm)

    1.5 hp variable speed pool pump structure


    Variable speed pool pump FQS structure

    01: plastic spanner 02: lid lock ring 03: lid 04: O' ring 05: basket
    06: union nut 07: union bushing 08: O' ring 09: pump body 10: O' ring
    11: drain plug 12: nut 13: gasket 14: screw 15: base
    16: O' ring 17: screw 18: diffuser 19: impeller 20: O' ring
    21: shaft seal 22: flange 23: screw 24: flange 25: R ejection water ring
    26: screw 27: motor 28: junction box 29: electric current safeguard


    Flow Diagram:

    FQS series pool pump flow diagram

    Tips: How to Program Pool Pump?

    With modern technology miracles, you can now get pool pumps with built-in programming that support energy-efficient usage.

    The benefit of having automation on your pool pump is that you don't have to think about switching speeds all the time for specific tasks. The pump will automatically change speeds once its completed a task. Say, for example, you want the pump to run on high to give the pool a proper cleaning. After it runs the program to high powered clean, it will go back to a low power setting or turn off for a period.

    And the best part is if you can set a timer on a standard pool pump, then using the built-in programming features shouldn't be any cause for concern. The controls are typically straightforward to comprehend.

    Existing reviews of 2 HP Pool Pump, 220V / 380V
    I am pleased to have purchased a pump that actually performs as advertised.
    The variable pool pump is mounted on a round above ground pool. The pump is certainly powerful enough to turn over water with 1HP. I like the power savings as this pump is on low speed for most of the day.
    From: Hange | Date: 23/11/2022
    Was this review helpful? Yes No (0/0)
    Quiet variable speed pool pump, I love it!
    The variable speed pool pump was easy to set up, super quiet and uses less power than my old pump, but the pool still sparkles. Put it on a bigger above ground pool and if I press one of the other speed buttons it still works well when I vacuum.
    From: Elijah | Date: 22/11/2022
    Was this review helpful? Yes No (0/0)
