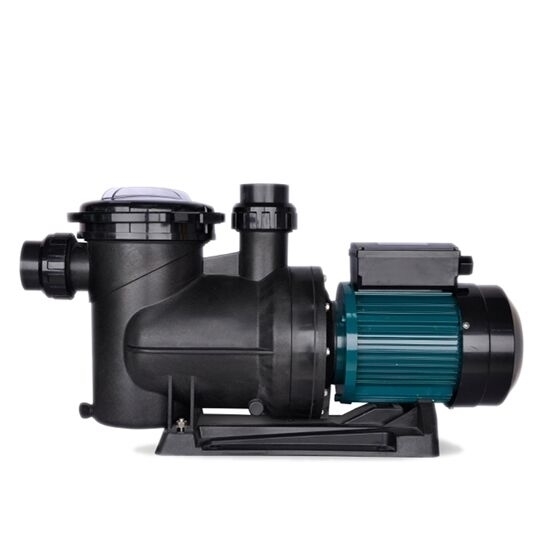

    1.5 HP Pool Pump, 220V / 380V

    5 out of 5 based on 1 reviews | Write a review
    $824.68
    Cheap and high quality 1.5 hp pool pump with copper wire motor for sale online. 1.1 kw pool pump adopts engineering plastic body, swimming pool water pump can be effectively protected under bad weather. Swimming pool pump with anti rust cast-aluminum motor cover, fast heat dissipation. The electric pool pump can reach a maximum head of 15 meters.
    *
    SKU: ATO-FQS-1100
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    Pool pumps are designed to be more energy-efficient than traditional pool pumps. 1.5 hp (1.1 kw) pool pump with PPO plastic steel material impeller, resist high temperature and corrosion. Pool pump can be used in water park and aquaculture.

    Feature:

    • Magnificent flow rate and lift, the core energy of water circulating, 2-3m suction lift.
    • Free-tool filter cover design, easy to maintenance.
    • IP55 protection level, with none-leaky design.
    • 100% copper wire motor, 24 hours running.
    • Silicone sealing ring, cover all watering section, enhance pump sealing system.
    • Engineering plastic body, pump can be effectively protected under bad weather, long service life.
    • Anti rust cast-aluminum motor cover, fast heat dissipation; PPO plastic steel material impeller, resist high temperature and corrosion.

    Specification:

    • Model: ATO-FQS-1100
    • Voltage: 220V (1 or 3 phase) / 380V (3 phase)
    • Frequency: 50 Hz / 60 Hz
    • Power: 1.5 HP (1.1 kW)
    • Hmax: 15m
    • Qmax: 21 m3/h
    • Port Size: 50 mm
    • Motor: copper motor
    • Medium Temperature: 5 ℃ - 50 ℃
    • Protection Level: IP44
    • Weight: 16 kg

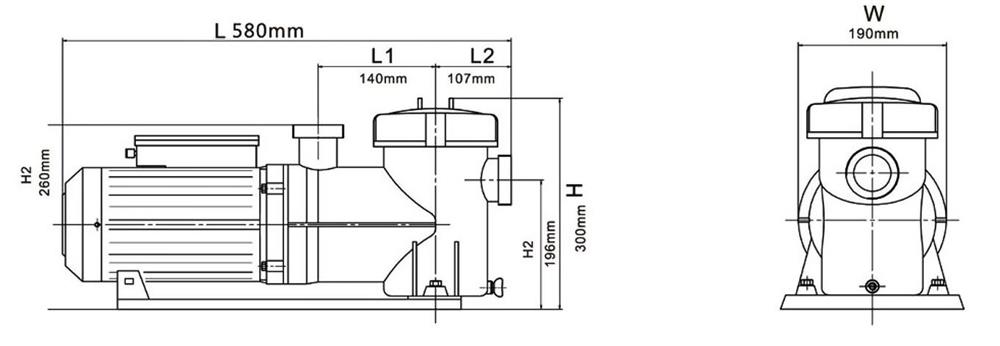

    Dimension (Unit: mm)

    1.5 hp variable speed pool pump structure

    Structure:

    Variable speed pool pump FQS structure

    01: plastic spanner 02: lid lock ring 03: lid 04: O' ring 05: basket
    06: union nut 07: union bushing 08: O' ring 09: pump body 10: O' ring
    11: drain plug 12: nut 13: gasket 14: screw 15: base
    16: O' ring 17: screw 18: diffuser 19: impeller 20: O' ring
    21: shaft seal 22: flange 23: screw 24: flange 25: R ejection water ring
    26: screw 27: motor 28: junction box 29: electric current safeguard



    Details

    Pool Pump Details

    Flow Diagram:

    FQS series pool pump flow diagram

    Tips: How much money can you save with a pool pump?

    A single speed pump can use as much as three times the amount of energy your fridge uses. In other words, the energy used for a pool pump is like running one 60 watt light bulb versus a single speed pool pump's energy consumption, which is like running thirty 100 watt light bulbs at the same time. That's a huge difference.

    A pool pump can use 3,000 to 5,000 kWh per year. If you switch to a swimming pool pump can expect to save 3,796 kWh per year. The difference in energy consumption means that you can save up to $150 or more a month on your hydro bill. Add up all the money you'll save on electricity each month and it’s easy to see that variable speed pool pumps pay for themselves pretty quickly.

    Existing reviews of 1.5 HP Pool Pump, 220V / 380V
    For my water project
    It's been five months since I bought this 1.5 hp variable speed pool pump. I use it for my water projects and it works really well. I would recommend this one to other colleagues.
    From: Farrah | Date: 30/03/2023
    Was this review helpful? Yes No (0/0)
