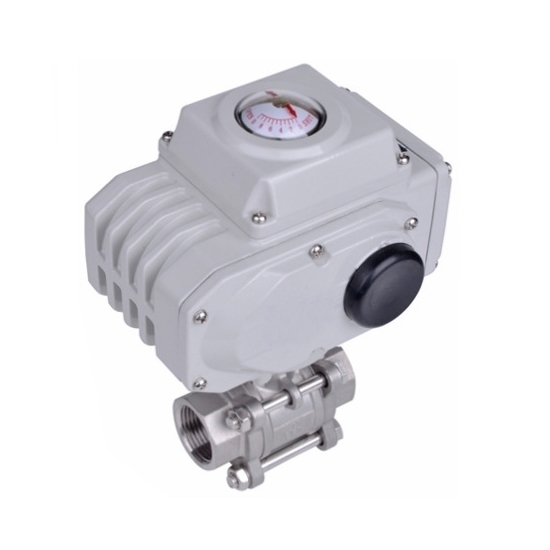

    1-1/2" Electric Ball Valve, 2 Way/ 3 Way

    5 out of 5 based on 1 reviews | Write a review
    1-1/2 inch ball valve with aluminum alloy electric actuator for delivering water, air, gas, oil, liquid and other media, selectable 2 way or 3 way, threaded type, flanged type and PVC true union type. DN40 (40mm) port size, PTFE seat material, 50/ 60Hz 110V AC, 220V AC, 380V AC, and 24V DC power supply. Small in size and light in weight, is convenient for pipeline installation.
    SKU: ATO-EBV-40B
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Compact electric actuated ball valve is high performance and reliable, which can service different medium from low to high temperature. It is widely used for water, oxygen, gas, nitrogen gas, gasoline and other air and fluid control.


    Ball Valve Model ATO-EBV-40B
    Port Size 1-1/2 inch (DN40, 40mm)
    Ball Valve Type (Optional) 2 Way Threaded Type, 2 Way Flanged Type, 2 Way PVC True Union Type, 3 Way Threaded Type, 3 Way Flanged Type
    Body Material Stainless Steel (SS 316/ 304), PVC
    Seat Material Plastic (PTFE)
    Environment Temperature -10°C to 60°C
    Medium Temperature -10°C to 180°C
    Medium Pressure 1.6MPa
    Electric Actuator Model ATO-KLST-05 ATO-KLST-10
    Frequency 50/ 60Hz
    Power Supply (Optional) 110V AC, 220V AC, 380V AC, 24V DC
    Actuator Input 4-20mA DC
    Actuator Type Double Acting
    Output Torque & Response Time 15N.m, 10s
    30N.m, 20s
    50N.m, 30s
    50N.m, 13s/ 15s
    60N.m, 20s
    100N.m, 30s
    Actuator Material Aluminum Alloy

    Note: Threaded ball valve and PVC true union ball valve match with ATO-KLST-05 electric actuator, and flanged ball valve matches with ATO-KLST-10 electric actuator.

    Body Dimension (Unit: mm)

    2 way/ 3 way, stainless steel, threaded type

    2 way 3 way stainless steel threaded type electric ball valve dimension

    φd L1 A1 A2 H1 L2 H2
    38 112 160 160 191 126 188

    2 way/ 3 way stainless steel, flanged type

    2 way / 3 way stainless steel flanged type electric ball valve dimension

    DN L1 T f D B C H1 H2 A1 A2 L2 N-M
    40 180 17 2 145 85 110 232 235 198 198 220 4-φ18

    2 way, PVC true union type

    2 way PVC pneumatic actuated ball valve dimension

    DN D D1 d L1 A H
    40 50 65 38 25 160 240

    Three Way Ball Valve Flow Pattern

    T Type:

    3 way pneumatic ball valve flow patterns t port

    L Type:

    3 way pneumatic ball valve flow patterns l port

    Tips: Electric actuated ball valve basics

    The electric actuated ball valve adopts an integrated structure and is matched with the electric actuator. It can control the operation with an input control signal (4~20mADC or 1-5VDC) and a single-phase power supply. It has strong functions, small size, light weight, reliable performance, and it is especially suitable for occasions where the medium is viscous, contains particles and fibers. The valve is widely used in industrial automatic control systems of food, environmental protection, light industry, petroleum, papermaking, chemical industry, teaching and scientific research equipment, electric power and other industries.

    The electrically operated ball valve has the functions of internal servo operation and opening signal position feedback, position indication, manual operation, etc. It has reliable performance and a simple connection. By inputting current signal or voltage signal, the rotation angle of the ball core can be changed to achieve proportional conditioning action.

    Existing reviews of 1-1/2" Electric Ball Valve, 2 Way/ 3 Way
    The electric actuation feature is convenient
    The electric actuation feature is convenient. It allows for remote control, which can be especially useful in certain applications where manual valve operation is challenging. The valve responds to commands reasonably quickly, and the 2-way version worked fine for diverting or stopping the flow of fluids in my system.
