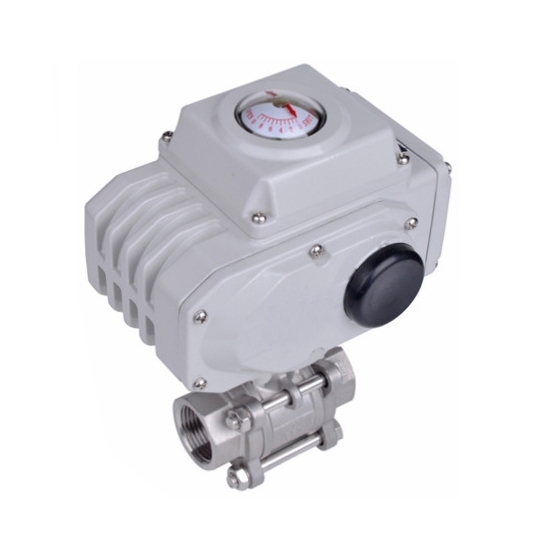

    2" Electric Ball Valve, 2 Way/ 3 Way

    $611.19
    Economical price 2 way, 3 way, 2 inch electric actuated ball valve with DN50 port and PTFE seat. Ball valve type of threaded, flanged and PVC true union available. The electric actuator works at 50/ 60Hz 110V AC, 220V AC, 380V AC, and 24V DC power supply, high performance and reliable for delivering air and liquid.
    SKU: ATO-EBV-50B
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Compact electric actuated ball valve is high performance and reliable, which can service different medium from low to high temperature. It is widely used for water, oxygen, gas, nitrogen gas, gasoline and other air and fluid control.

    Specification

    Ball Valve Model ATO-EBV-50B
    Port Size 2 inch (DN50, 50mm)
    Ball Valve Type (Optional) 2 Way Threaded Type, 2 Way Flanged Type, 2 Way PVC True Union Type, 3 Way Threaded Type, 3 Way Flanged Type
    Body Material Stainless Steel (SS 316/ 304), PVC
    Seat Material Plastic (PTFE)
    Environment Temperature -10°C to 60°C
    Medium Temperature -10°C to 180°C
    Electric Actuator Model ATO-KLST-10
    Frequency 50/ 60Hz
    Power Supply (Optional) 110V AC, 220V AC, 380V AC, 24V DC
    Actuator Input 4-20mA DC
    Actuator Type Double Acting
    Output Torque & Response Time 50N.m, 13s/ 15s
    60N.m, 20s
    100N.m, 30s
    Actuator Material Aluminum Alloy


    Body Dimension (Unit: mm)

    2 way/ 3 way, stainless steel, threaded type

    2 way 3 way stainless steel threaded type electric ball valve dimension

    φd L1 A1 A2 H1 L2 H2
    50 130 198 198 236 143 230

    2 way/ 3 way stainless steel, flanged type

    2 way / 3 way stainless steel flanged type electric ball valve dimension

    DN L1 T f D B C H1 H2 A1 A2 L2 N-M
    50 200 18 2 160 100 125 240 265 198 198 240 4-φ18

    2 way, PVC true union type

    2 way PVC pneumatic actuated ball valve dimension

    DN D D1 d L1 A H
    50 63 79 48 28 198 278


    Three Way Ball Valve Flow Pattern

    T Type:

    3 way pneumatic ball valve flow patterns t port

    L Type:

    3 way pneumatic ball valve flow patterns l port

    Tips: Difference between T type and L type 3 way electric ball valve

    Electric 3 way ball valve can be used to control the direction, diversion or confluence of three pipeline media. According to the different structure of the ball core, it can be divided into T type or L type. The difference between these two kinds of ball valves lies in the difference in internal structure. The T-type ball valve can connect three orthogonal pipelines with each other and cut off the third channel, and play the role of diversion and confluence, while the L-type ball valve can only connect two mutually orthogonal pipelines, and cannot maintain the mutual connection of the third pipeline at the same time. Connectivity only plays a distributive role.

    The T-type ball valve is mainly used for the diversion or mixing of the medium, and the L-type ball valve is mainly used for reversing. L-type 3 way ball valve is used for distribution and switching that does not require 3 way, and the operation is more convenient. The T-type 3 way ball valve has a wide selection of channels and many valve positions. Generally, there is no positioning. If it replaces the L-type, it needs to be rotated 180 degrees.
