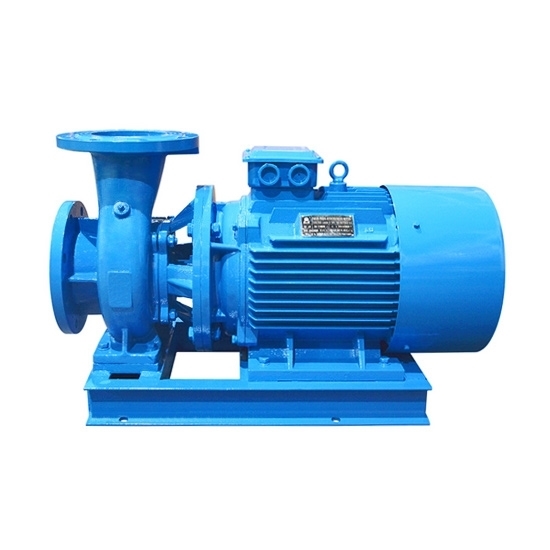

    1.5 hp Horizontal Centrifugal Pump, Single Stage

    5 out of 5 based on 1 reviews | Write a review
    Factory price horizontal centrifugal pump with motor power 1.5 hp, 3 phase, centrifugal water pump has the same diameter of inlet and outlet 25mm (1 inch). High pressure centrifugal pump has input voltage AC 220V to 480V for selection. Small centrifugal pump can be used for garden sprinkler irrigation, HVAC & refrigeration water circulation, etc.
    SKU: ATO-HCP-1100W
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Cost-effective centrifugal water pump with minimum flow 2.9 m³/ h, maximum flow 4.9 m³/ h (21.6 gpm), minimun head 26m (85ft) and maximum head 29m (95ft).


    1. The centrifugal pump has the horizontal structure. The diameter of the inlet and outlet are the same. If a protective cover is added, it can be used in the open air.
    2. It is easy to install and maintain. No need to dismantle pipeline system, just lifting off the conjunction flat nut of vertical pump. Then all the rotor parts can be taken out.
    3. Horizontal centrifugal pump can be operating in series and parallel connection according to the requirements of flow and head.
    4. The installation angle of pump outlet can be 0°, 90° and 180° to meet different connection occasions.


    • Model: ATO-HCP-25-160A
    • Power: 1.5 hp
    • Number of stages: Single stage
    • Input voltage: AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V
    • Input frequency: 50Hz/ 60Hz
    • Inlet diameter: 25mm (1 inch)
    • Outlet diameter: 25mm (1 inch)
    • Flow (min. flow to max. flow): 2.9 m³/ h (12.8gpm), 3.7 m³/ h (16.3gpm), 4.9 m³/ h (21.6gpm)
    • Head (max. head to min. head): 29m (95ft), 28m (92ft), 26m (85ft)
    • Efficiency: 27%, 31%, 29%
    • Nominal diameter of impeller: 160mm
    • Size: 355*420*200mm
    • Weight: 65kg

    Dimension (mm)

    Boundary dimension h H L a A
    210 355 420 80 55
    Base dimension L1 B I b h1 4-φd1
    320 200 270 100 80 4-φ14
    Flange dimension D D1 n-φd
    φ115 φ85 4-φ14

    Horizontal centrifugal pump dimension

    Tips: Classification of Centrifugal Pump.

    1. Classify by the number of the working impellers

    1. Single-stage pump: there is only one impeller on the pump shaft
    2. Multiple-stage pump: there are two or more than two impellers on the pump shaft. Then, the total head of the pump is the sum of the head of the n impellers.

    2. Classify according to the working pressure

    1. Low-voltage pump: pressure below 10000mmH2O.
    2. Middle-voltage pump: pressure within 10000~65000mmH2O.
    3. High-voltage pump: pressure higher than 65000mmH2O.

    3. Classify according to the impeller's water feeding means

    1. One-sided water feeding pump: namely, the single end suction centrifugal pump, the impeller has only one water inlet.
    2. Two-sided water feeding pump: namely, the double suction centrifugal pump, the impeller has one water inlet on each side. Its flow doubles that of the single-suction pump. It can be approximately regarded that two single end suction impellers are placed back to back.

    4. Classify according to the pump shaft position

    1. Horizontal centrifugal pump: the pump shaft is in the horizontal position.
    2. Vertical centrifugal pump: the pump shaft is in the vertical position.

    5. Classify according to the means of leading the water out of the impeller to the delivery chamber

    1. Volute shell pump: the water directly goes into the pump shell with the spiral line shape after coming out of the impeller.
    2. Guide vane pump: the water enters the externally set guide vane after coming out of the impeller, and then enters the next stage or flows into the outlet.

    6. Classify according to the application

    According to the application, it is can be divided into sewage centrifugal pump, hot water centrifugal pump, anti-corrosion chemical centrifugal pump, anti-explosion centrifugal oil pump and so on.

    Phase 3 phase
    Input voltage AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V
    Input frequency 50Hz, 60Hz
    Installation angle of outlet 0°, 90° and 180°
    Pump type Booster pump
    Number of stages Single stage
    Motor type Y/ Y2 series motor
    Motor speed 2900rpm
    Impeller material 304/ 316 stainless steel
    Seal material 304 stainless steel, tungsten carbide, fluorine rubber
    Inlet max. pressure 1MPa (145 psi)
    (NPSH)r 2.3m
    Usage Water, or liquids compatible with pump component materials.
    1. The volume of solid particles should be less than 0.1% in unit volume, and the granularity should be less than 0.2mm.
    2. The temperature should be lower than 60℃.
    Environment Temperature: <40℃, humidity: <95%, altitude<1000m
    Warranty 12 months

    Different types of centrifugal pumps

    This video explains different types of centrifugal pumps that can be selected according to one's own needs.

    Principles and functionality explained

    This video tells us what a centrifugal pump is and its working principle, and you will have a general understanding of it.

    Components of centrifugal pumps

    This video is an explanation of the components of a centrifugal pump, and we can learn the basic knowledge of the eight components of a centrifugal pump from it.
