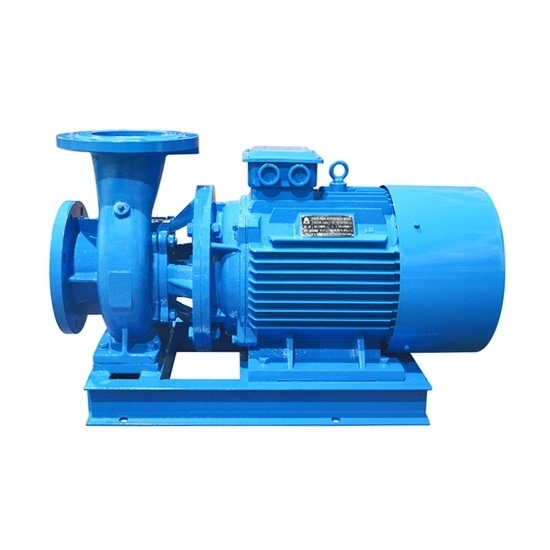

    3 hp Horizontal Centrifugal Pump, Single Stage

    5 out of 5 based on 1 reviews | Write a review
    $1,396.83
    Single stage centrifugal pump with horizontal structure, 2kW motor power. Centrifugal water pump with maximum flow 15.2 m³/ h (66.9 gpm), maximum head 29m (95ft) and same diameter of inlet and outlet 50mm (2 inch). 3 phase centrifugal pump has advantages of stable operation, low noise, low failure rate, convenient maintenance and less land occupation.
    *
    *
    SKU: ATO-HCP-2200W
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    3-phase centrifugal water pump has optional input voltage 3 phase AC 220V/ 230V/ 240V, 380V/ 400V/ 415V to 440V/ 460V/ 480V and optional input frequency 50Hz/ 60Hz for sale. The 3-phase centrifugal pump can be used for high-rise building pressurized water supply, HVAC & refrigeration water circulation, etc.

    Features:

    1. The centrifugal pump has the horizontal structure. The diameter of the inlet and outlet are the same. If a protective cover is added, it can be used in the open air.
    2. It is easy to install and maintain. No need to dismantle pipeline system, just lifting off the conjunction flat nut of vertical pump. Then all the rotor parts can be taken out.
    3. Horizontal centrifugal pump can be operating in series and parallel connection according to the requirements of flow and head.
    4. The installation angle of pump outlet can be 0°, 90° and 180° to meet different connection occasions.

    Specification

    • Model: ATO-HCP-50-160A
    • Power: 3 hp (2kW)
    • Number of stages: Single stage
    • Input voltage: AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V
    • Input frequency: 50Hz/ 60Hz
    • Inlet diameter: 50mm (2 inch)
    • Outlet diameter: 50mm (2 inch)
    • Flow (min. flow to max. flow): 8.2 m³/ h (36gpm), 11.7 m³/ h (51.5gpm), 15.2 m³/ h (66.9gpm)
    • Head (max. head to min. head): 29m (95ft), 28m (92ft), 26m (85ft)
    • Efficiency: 44%/ 51%/ 50%
    • Nominal diameter of impeller: 160mm
    • Size: 370*525*250mm
    • Weight: 75kg

    Dimension (mm)

    Boundary dimension h H L a A
    210 370 525 80 55
    Base dimension L1 B I b h1 4-φd1
    380 250 330 150 80 4-φ14
    Flange dimension D D1 n-φd
    φ165 φ125 4-φ18

    Horizontal centrifugal pump dimension

    Tips: How to Confirm the Flow of the Centrifugal Pump?

    The flow is the amount of liquid delivered per unit time. Its most universal unit is m³/ h or gpm. After calculation, 1m³/ h=4.4gpm. It represents the centrifugal pump can deliver liquid 1m³ per hour or 4.4 gallons per minute.

    If the design institute provides the normal flow, minimum flow, and maximum flows together. The maximum flow shall be regarded as the basis in model selection, with the normal flow being taken into account. When there is no maximum flow, 1.1 times the normal flow can be taken as the maximum flow.

    If there is no calculation of the design institute, it can calculate by the daily infusion volume divided by the pump working time. For example, if you need to transport liquids 80-100 m³ per day and the working time is 10 hours, then the pump flow is 8-10 m³/h.

    If the flow indicated on the nameplate is the rated flow of centrifugal pump, that is, the intermediate value of the flow. The working efficiency of the water pump under this flow data is the highest. If it deviates from this flow during use, the efficiency of the water pump will be greatly reduced. If the deviation is rather serious, the motor will be burn out. For example, the rated flow of a pipeline centrifugal pump is 100m³/ h (440 gpm). In actual use, the flow of the pump is preferably set as this data. If the flow exceeds 120m³/ h (528 gpm), special attention should be paid to whether the motor current has exceeded the current data indicated on the pump nameplate. If the current goes beyond the rated value, the opening of the pump outlet valve should be used to control the flow of the pump in the rated flow range. In order to save energy and reduce the operation cost, the flow of the centrifugal pump should be run under the designed flow position as much as possible.

    Phase 3 phase
    Input voltage AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V
    Input frequency 50Hz, 60Hz
    Installation angle of outlet 0°, 90° and 180°
    Pump type Booster pump
    Number of stages Single stage
    Motor type Y/ Y2 series motor
    Motor speed 2900rpm
    Impeller material 304/ 316 stainless steel
    Seal material 304 stainless steel, tungsten carbide, fluorine rubber
    Inlet max. pressure 1MPa (145 psi)
    (NPSH)r 2.3m
    Usage Water, or liquids compatible with pump component materials.
    1. The volume of solid particles should be less than 0.1% in unit volume, and the granularity should be less than 0.2mm.
    2. The temperature should be lower than 60℃.
    Environment Temperature: <40℃, humidity: <95%, altitude<1000m
    Warranty 12 months

    Different types of centrifugal pumps

    This video explains different types of centrifugal pumps that can be selected according to one's own needs.

    Principles and functionality explained

    This video tells us what a centrifugal pump is and its working principle, and you will have a general understanding of it.

    Components of centrifugal pumps

    This video is an explanation of the components of a centrifugal pump, and we can learn the basic knowledge of the eight components of a centrifugal pump from it.

    Existing reviews of 3 hp Horizontal Centrifugal Pump, Single Stage
    Good purchase
    So far, so good. Works very well with a high output of water volume emptying sump pit quickly. Two of these 3 hp horizontal centrifugal pump installed in my yard as we flood, they do an awesome job. I will order more pumps in ATO.
    From: Daye | Date: 07/06/2022
    Was this review helpful? Yes No (0/0)
    Load more reviews...
    Write your review for 3 hp Horizontal Centrifugal Pump, Single Stage
    • Only registered users can write reviews
    • Bad
    • Excellent
    Customers who bought this item also bought

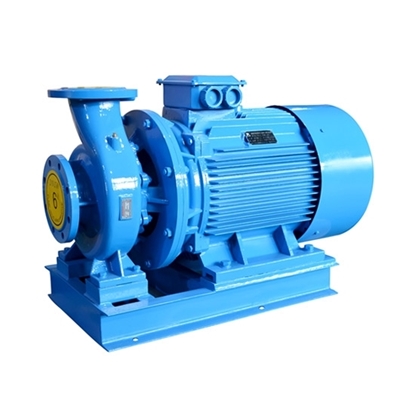

    15 hp Horizontal Centrifugal Pump, Single Stage
