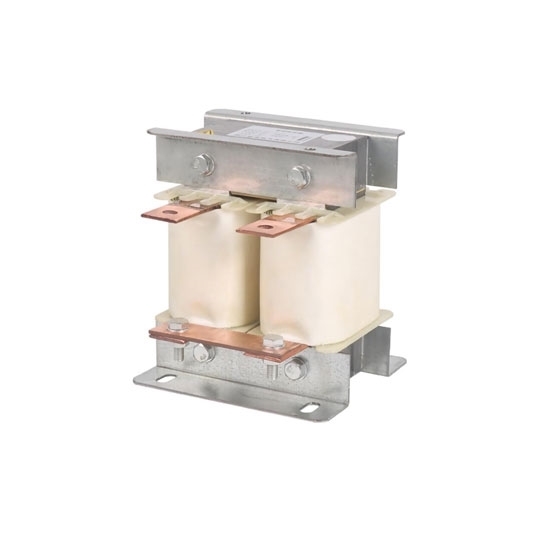

    10 hp (7.5 kW) DC Reactor, Single Phase

    10 hp power DC reactor for reducing harmonic interference, single phase, DC output voltage 220V, 380V, 400V is available, other voltage can be customized, DC smoothing reactor for vfd, material aluminum or copper.
    SKU: ATO-DCR-10
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Light weight DC line reactor in vfd, 7.5 kW power, rated current 20 amp, single phase line reactor can reduce the current ripple value, improve the input power factor, and can suppress the harmonics generated by the converter device.


    Model ATO-DCL-20
    Phase 1 Phase
    Power Adapter 7.5 kW (10 hp)
    VFD Voltage Adapter 2200V-1200V (Contact us for other voltages)
    Rated Current 20A
    Inductance 3.18
    Insulation Grade F.H
    Dimension 100*120*85mm (L*W*H)
    Mounting Dimension 84*70mm
    Electric Strength Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
    Insulation Resistance iron core-winding 1000VDC, Insulation resistance
    Noise of Reactor Less than 35dB (measured from 1 meter away in horizon from reactor)
    Degree of Protection IP00
    Degree of Insulation > Class F
    Weight 4kg

    1. Improve the input current wave caused by capacitor harmonics.
    2. Reduce and prevent rectifier bridge damage and capacitors.
    3. Overheating due to a surge in current.
    4. Improve the power factor and reduce the AC pulse of the DC bus.
    5. Limit transient changes in system voltage.

    10 hp DC Reactor Dimension (unit: mm)
    DC reactor dimensionDetails

    Single Phase DC Reactor Details

    Tips: The role of DC reactor

    The DC reactor is connected between the DC rectification link and the inverter link of the frequency conversion system. The main purpose is to limit the AC component superimposed on the DC current to a specified value, keep the rectified current continuous, reduce the current pulse value, and make the inverter Variable link operation is more stable and the power factor of the inverter is improved.
