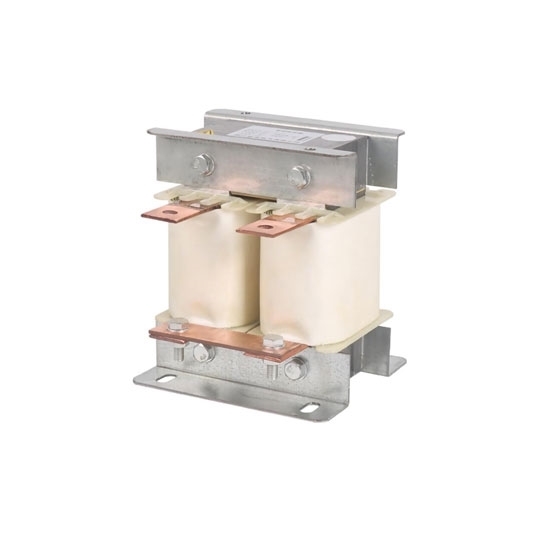

    2 hp (1.5 kW) DC Reactor for VFD

    2 hp DC reactor for vfd, 1.5 kW, cheap price, rated current 8A, 1 phase, voltage 220V, 380V, 400V is available, other voltages can be customized, material copper or aluminum, manufacturer direct sales.
    SKU: ATO-DCR-2
    Free Shipping Worldwide
    Delivery date: 6-20 days

    Single phase dc line reactor for inverter and vfd, 2 hp, rated operating voltage 400V-1200V, material can choose copper or aluminum.


    Model ATO-DCL-8
    Phase 1 Phase
    Power Adapter 1.5 kW (2 hp)
    VFD Voltage Adapter 220V-1200V (Contact us for other voltages)
    Rated Current 8A
    Pressure Drop 10.6
    Insulation Grade F.H
    100*120*85mm (L*W*H)
    Mounting Dimension 84*70mm
    Electric Strength Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
    Insulation Resistance iron core-winding 1000VDC, Insulation resistance
    Noise of Reactor Less than 35dB (measured from 1 meter away in horizon from reactor)
    Degree of Protection IP00
    Degree of Insulation > Class F
    Weight 2.5kg

    1. Improve the input current wave caused by capacitor harmonics.
    2. Reduce and prevent rectifier bridge damage and capacitors.
    3. Overheating due to a surge in current.
    4. Improve the power factor and reduce the AC pulse of the DC bus.
    5. Limit transient changes in system voltage.

    Dimension (unit: mm)
    DC reactor dimension
    Tips: What is a DC reactor?

    The DC reactor is mainly used for the DC side of the converter, and has more applications on general-purpose inverters. A DC current having an AC component flows through the reactor. The main purpose is to limit the AC component superimposed on the DC current to a specified value, keep the rectified current continuous, reduce the current ripple value, improve the input power factor, and suppress the harmonics generated by the converter.
