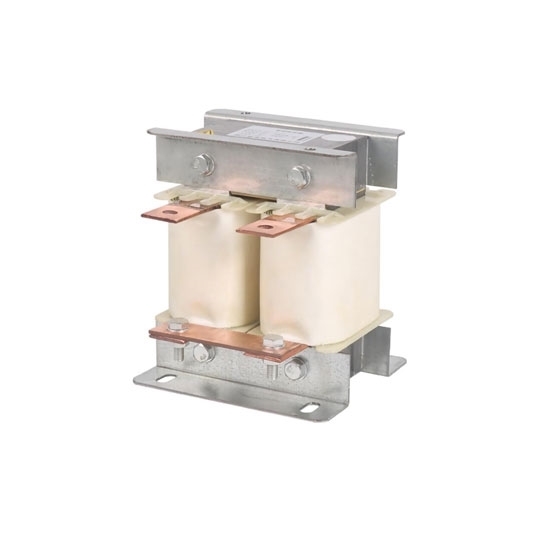

    3 hp (2.2 kW) DC Reactor for VFD

    3 hp dc reactor for high voltage DC transmission(HVDC), 2.2 kW power, single phase, rated current 10A, 220V-1200V voltage can be customized. In addition to improving the power factor, the DC reactor can also reduce the impact immediately after the power is turned on.
    SKU: ATO-DCR-3
    Free Shipping Worldwide
    Delivery date: 6-12 days

    DC reactor 3 hp for vfd, improve the input current wave caused by capacitor harmonics, small size and light weight.


    Model ATO-DCL-10
    Phase 1 Phase
    Power Adapter 2.2 kW (3 hp)
    VFD Voltage Adapter 220V-1200V (Contact us for other voltages)
    Rated Current 10A
    Pressure Drop 6.37
    Insulation Grade F.H
    Dimension 100*120*85mm (L*W*H)
    Mounting Dimension 84*70mm
    Electric Strength Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
    Insulation Resistance iron core-winding 1000VDC, Insulation resistance
    Noise of Reactor Less than 35dB (measured from 1 meter away in horizon from reactor)
    Degree of Protection IP00
    Degree of Insulation > Class F
    Weight 2.5kg

    1. Improve the input current wave caused by capacitor harmonics.
    2. Reduce and prevent rectifier bridge damage and capacitors.
    3. Overheating due to a surge in current.
    4. Improve the power factor and reduce the AC pulse of the DC bus.
    5. Limit transient changes in system voltage.

    Dimension (unit: mm)
    DC reactor dimension

    In the lifting industry, since AC reactors cannot be omitted, the harmonic reduction effect of AC reactors is basically the same as that of DC reactors.
    At the same time, using AC and DC reactors can reduce harmonic interference better, but it also increases the voltage loss on the motor side (there are 1% to 3% voltage drops on AC and DC reactors). Therefore, ATO recommends replacing AC reactors with AC reactors.
