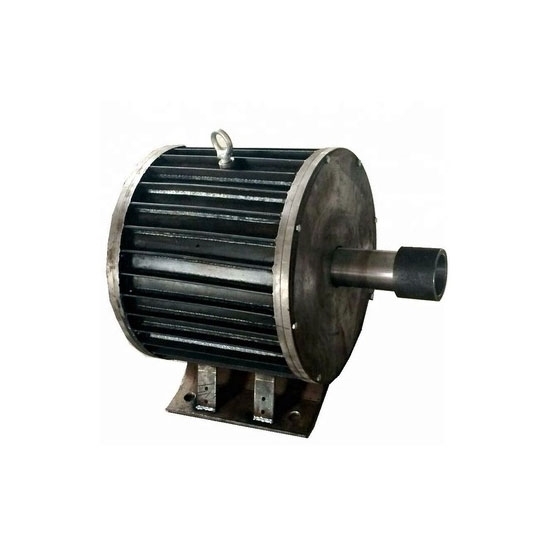

    10 kW 120v/220v/420v Alternator, 3 Phase

    $7,258.89
    Manufacturer price 10kw alternator generator for sale, 3 phase, rated power 10000W, max power 13000W, 170 rpm rated speed, low rpm permanent magnet generator rated torque is 159.2Nm, great application in industrial and agricultural production and daily life.
    SKU: ATO-PMG-10kW
    *
    *

    10000 watt permanent magnet alternator rated speed of 170 rpm, three phase, rated voltage 120V/220V/420V for option, manufacturer direct sales.

    Note: Special rated voltage and speed can be customized, please contact us.

    Specification:

    Model ATO-PMG-10kW
    Rated Power 10 kW
    Max Power 13 kW
    Rated Voltage 96v/120v/220v/380v/420v
    Rated Speed 170r/m
    Net Weight 180kg
    Output Current AC
    Start Torque 1.28Nm
    Rated Torque 561.7Nm
    Synchronous Generator Phase 3 Phase
    Insulation Class F
    Service Life More Than 20 years
    Bearing HRB or for your order
    Shaft Material Iron
    Shell Material Carbon Steel
    Permanent Magnet Material Rare Earth NdFeB
    Protection Grade IP54
    Lubrication Lubrication Grease
    Working Temperature -40℃ - 80 ℃

    Features

    • Gearless, direct drive, low RPM permanent magnet generator.
    • Low start up speed due to low cogging and resistive torque design.
    • High standard, quality components for use in harsh and extreme environments for wind turbines.
    • High efficiency and Low mechanical resistance energy loss.
    • Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure.
    • High strength from the specially desy selecign structure and fully heat treatment aluminium.
    • Generator is designed using speciallted material and treated to resist corrosion and oxidation.
    • Designed for reliable and long operational lifetime under long-term full output.

    Tips: Why can rare earth permanent magnet motors save energy?

    When the motor is in operation, it needs to be excited first to start running. It is the most energy-consuming when starting. The ordinary motor needs to consume a lot of "excitation current", and the motor motor using rare earth permanent magnet does not need to consume a lot at first. The electric energy is first excited, and it can be quickly and energy-savingly activated by its own permanent magnet. Since he removes the excitation coil, it will also save the part of the electric energy it consumes during the operation.
