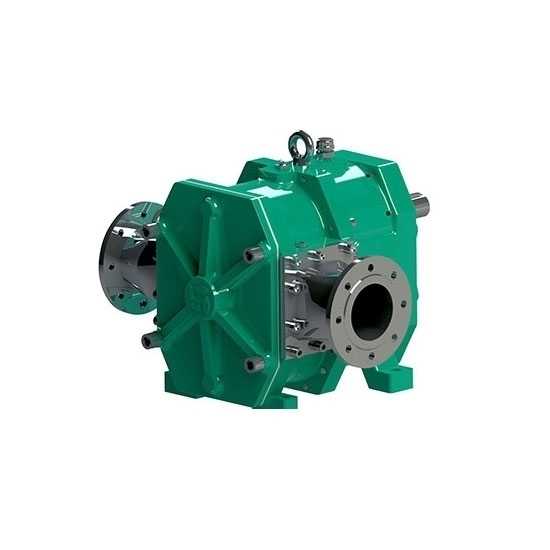

    10 kW Rotary Lobe Pump

    $39,867.89
    The rotary pump adopts a symmetrical design, and the flow direction can be completely reversed just by switching the rotation direction, flow 80~100 m3/h, speed of 600rpm, other power rotary lobe pum can be customized.
    SKU: ATO-LP-AF125
    *
    Free Shipping Worldwide
    Delivery date: 10-12 days

    10 kW rotary lobe pump for sale, maximum outlet pressure 12 bar, compact design allows installation in limited space, used in environmental technology, chemical industry, ceramic industry and other fields.

    Precautions for selection of rotary lobe pump

    1. Shaft power = flow Q (m3/h) x head H (Bar) / 36 / η.
    2. When the conveying medium is clear water, sewage and relatively dilute mud, the rotational speed n≤350rpm, when the conveying medium is dry mud, the rotational speed n≤100rpm.
    3. When it is necessary to ensure the self-priming height, the speed n is greater than or equal to 200rpm, when the equipment is running with gaps, such as mobile pump trucks, the speed can be greater than 350rpm.
    4. Different environments, different media, different speeds, please contact ATO technicians.
    5. Other power lobe rotary lobe pumps can be customized.

    Specification

    • Model: ATO-LP-AF125
    • Power: 10 kW
    • Flow: 80~100 m3/h
    • Maximum Outlet Pressure: 12 bar
    • Maximum Speed: 600 rpm
    • Flange Diameter: DN100, DN125, DN150, DN200, DN250
    • Weight: 305 kg
    • Dimension: 1498mm x 505mm (L x H)
    • Certificate: CE, ISO9000, ISO14000, ISO18000

    Feature

    • Strong self-priming ability, often used to replace submersible pumps or submersible pumps, the maximum suction stroke of the pump can reach 8.5-9.5 meters.
    • The lobe pump has good wear resistance and is often used to transport fluid media containing impurities such as sludge, sewage, and slag.
    • Simple maintenance, no need to dismantle the pipeline.
    • Reversible operation, the design is completely symmetrical, and the conveying direction can be changed by changing the driving direction.
    • No blockage, strong ability to pass impurities.
    • Idling/dry running: the pump is insensitive to dry running, and short-term running will not cause damage to the pump.
    • Energy saving and electricity saving, high efficiency.
    • To solve the gas resistance, it can be mixed and conveyed with gas, liquid and slag.
    • The overall operating cost of the pump is low.
    • Ultra-wide medium viscosity conveying range, from low viscosity medium to high viscosity medium can be smoothly conveyed.

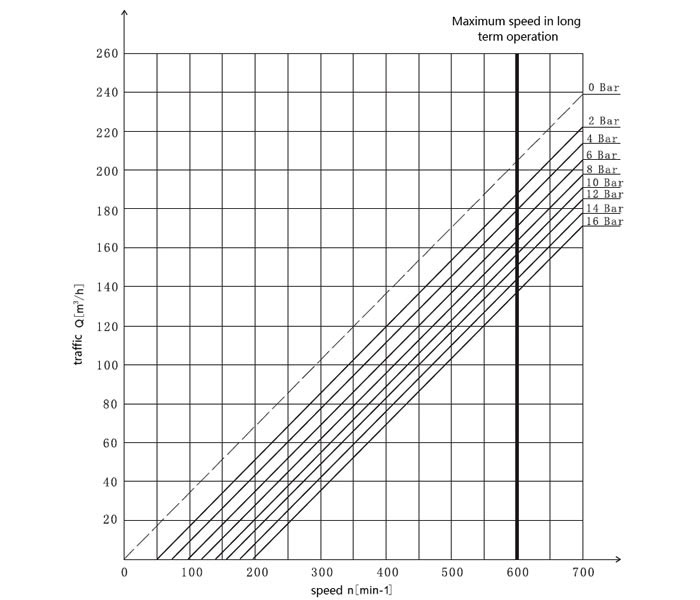

    10 kW Rotary Lobe Pump Curve

    10 kW rotary lobe pump curve

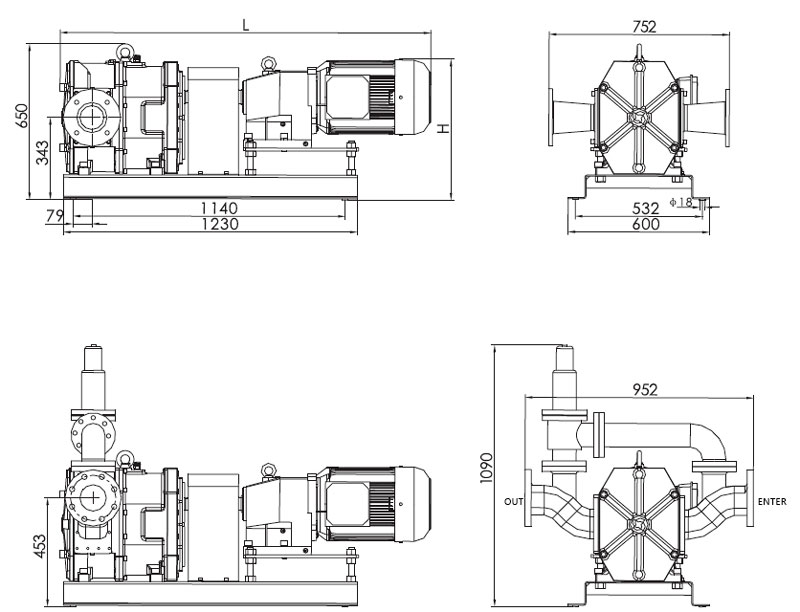

    10 kW Rotary Lobe Pump Installation Dimensions

    10 kW lobe pump installation dimensions

    Lobe Pump Applications

    Lobe pump applications

    Tips: Rotary lobe pump application areas

    Environmental Technology

    Sewage, municipal or industrial, sludge, thin or thickened, dosing of polyelectrolyts, feeding of dewatering devices, lime slurries in flue gas desulphuration and water-oil-mixtures.

    Chemical Industry

    Acids, caustics, mixtures, solvents, fats, oils, pastes, dispersions, emulsions, latex or products containing latex, paints and coatings.

    Oil Industry

    Oil, oil sludge, heavy oil, fuel oil, diesel oil, benzene, kerosene, water-oil-mixtures and emulsions.

    Building Industry

    Mineral sludge, cement slurry, bentonite, dilling emulsion, dilling mud, lime slurry, plaster masses, coatings and de-watering.

    Paper and Paper

    Paper stock, coatings, chemicals, paints, lime milk, wastewater, sewage, caoline suspensions and titanium dioxide.
