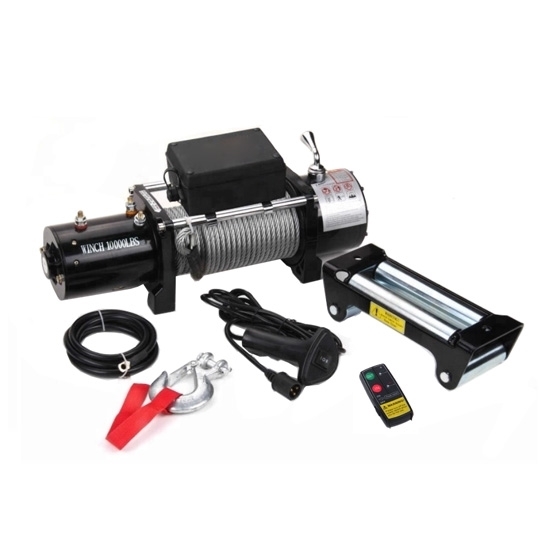

10000 lbs 12V/24V ATV 4x4 Electric Winch comes with the upgraded accessory kit, which includes a set of wired and wireless remote controller tools, control box, cable steel, hook, and roller fairlead to offer you an excellent working performance.
Features
- High efficiency permanent magnet 4.6kW/6.2hp motor for power and fast line speed, DC 12V or DC 24V Power drive optional.
- 10000 lbs pull capacity electric winch for ATV/UTV with compact structure and cheap price.
- Equipped with a gear reduction ratio of 265:1 and 3 stage planetary gear train to born with stronger pulling capacity.
- Dual remote control mode, wired remote control and wireless remote control.
- Free spooling with sliding ring gear, easy to operate.
- Designed to keep dust and water out with an IP67 waterproof rating.
- It is generally installed in the middle of the front car and connected with the car frame, exposed or hidden in the bumper.
- 100% testing on winch pulling capacity and function before shipping.
Specifications
Model |
ATO-10000LB |
Single Line Rated Pull |
10000 lbs (4536kgs) |
Voltage |
12V/24V DC (Optional) |
Motor |
Permanent magnet, 4.6kW/6.2hp |
Gear Ratio |
265:1 |
Gear Train |
3 stage planetary |
Control |
Remote switch, 9.8ft (3m) lead (Supports wired remote control and wireless remote control) |
Clutch |
Sliding ring gear |
Cable (Dia x L) |
Ø9.1mm × 26m |
Drum Size (Dia x L) |
Ø2.5" (64mm) × 8.8" (233.5mm) |
Fairlead |
4-way roller fairlead |
Braking Action |
Automatic In-The-Drum |
Overall Dimensions (L x W x H) |
20.8" x 6.3" x 8.5" (529mm × 160mm × 217mm) |
Mounting Bolt Pattern |
255mm*114mm, Ø11 |
Protection Grade |
IP67 |
Weight |
40kg |
Packing Size |
610 x 350 x 270mm |
Package Included |
1 x 10000 lbs ATV winch 1 x Clevis hook 1 x Control box 1 x Wired remote controller 1 x Wireless remote controller 1 x 4-way roller fairlead 1 x Universal mounting plate 1 x Winch cable 1 x Set of bolts 1 x User manual |
Parameters of Line Pull, Speed and Current at 12 Volt
Line Pull (lbs) / (kgs) |
Line Speed (ft/min) / (m/min) |
Current (A) |
0 |
24.9 / (7.6) |
80 |
2000 / (907) |
16.1 / (4.9) |
180 |
4000 / (1814) |
10.8 / (3.3) |
240 |
6000 / (2722) |
8.5 / (2.6) |
280 |
8000 / (3629) |
7.2 / (2.2) |
330 |
10000 / (4536) |
5.9 / (1.8) |
390 |
Line Pull and Rope Capacity in Layer
Layer |
Rated Line Pull (lbs) / (kgs) |
Total Rope on Drum (ft) / (m) |
1 |
10000 / (4536) |
13 / (5) |
2 |
9010 / (4087) |
23 / (11) |
3 |
7377 / (3346) |
69 / (21) |
4 |
6245 / (2833) |
92 / (28) |
Tips: Characteristics of electric winch
The electric winch is powered by the car itself to drive the winch. This winch is convenient because you can stand anywhere and manipulate it with the knob on the remote control. Its biggest advantage is that it can be used as long as the battery has power.
1. The traction force of the electric winch is set in pounds, which can be converted into tons or kilograms through conversion. It's best to choose a high-pound winch, because the weight of the vehicle in trouble is often much higher than the daily weight of the vehicle. Do not tow objects that exceed the traction of the winch.
2. The more turns the steel cable of the electric winch is wound on the reel, the smaller the tension of the outer ring. The long winch can reduce the number of winding turns to increase the traction of the outer ring. For the same winch, the shorter wire rope has more traction on the outer ring than the longer wire rope.
