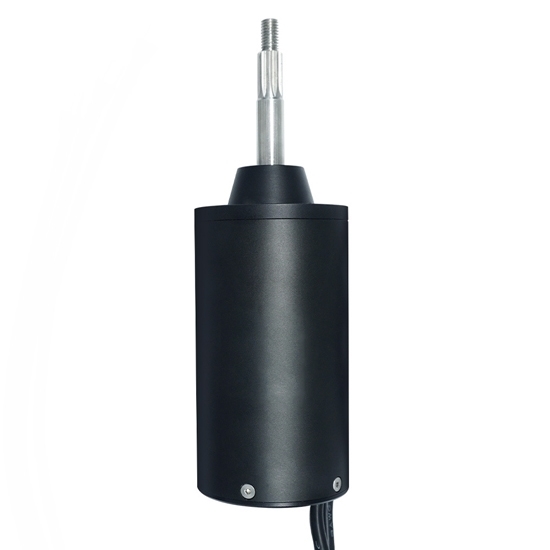

    12 kW 140KV 6-18S Waterproof Brushless DC Motor, IP68

    $1,566.95
    12 kW brushless motor with affordable price and IP68 waterproof performance for sale. Brushless outrunner motor adopts 1125 rpm rotate speed and 6000W rated current. The ultimate operating temperature of the waterproof brushless motor can reach 120 ℃. 140 KV brushless motor can be used in electric surfboard, surf motorcycle, submersible propeller.
    SKU: ATO-BLDC-ES12000
    Free Shipping Worldwide
    Delivery date: 6-12 days

    140 KV waterproof brushless DC motor operates at 28-75.6V DC voltage, 12 kW high power, IP68 waterproof performance. Outrunner BLDC motor often used in electric surfboard, electric hydrofoil and RC boat.

    Specification:

    Model ATO-BLDC-85135
    Rated Voltage 36V
    Rated Current 6000W
    Max Current 12000W
    Rotation Speed KV (RPM/V) 140 KV
    Voltage Range 6-18S
    Max Torque 21.8 N.m
    Line Length 1300 mm
    Rotate Speed 1125 rpm
    No-load Current 1.5A
    Insulation Voltage 500V
    Shaft Diameter 12 mm
    Number of Pole Pairs 5
    Plug 10 mm gold plug
    Waterproof Level IP68
    Weight 2.8 kg

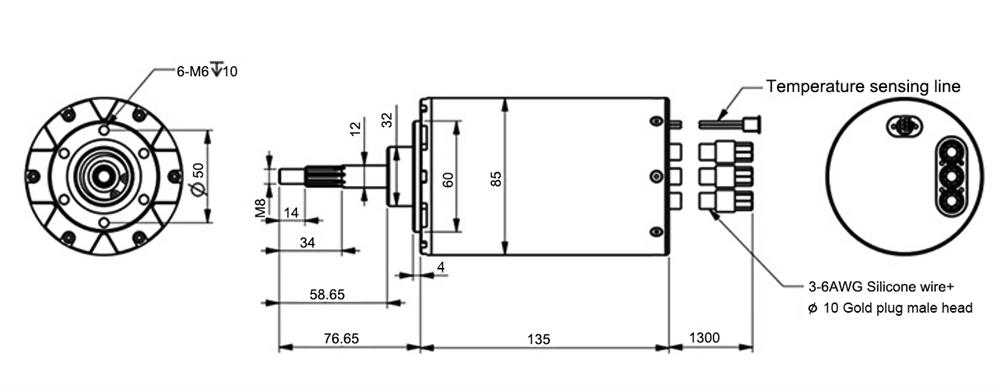

    Dimension:

    12kW waterproof bldc motor dimension

    ESC (Electronic Speed Controller) Selection for Waterproof BLDC Motor

    • The speed of BLDC motor does not exceed the speed of ESC, it can be matched and used.
    • Brushless DC motor speed calculation formula: battery voltage * motor KV value.
      Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
    • The limit speed of V4 series ESC is 60000 ERPM.
      The limit speed of V6 series ESC is 15000 OERPM.
    • If the maximum speed of BLDC motor exceeds the speed of electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of brushless DC motor.

    ESC (Electronic Speed Controller) Specification

    Model Current Value Number of Batteries (Input Voltage)
    FSESC 4.12 Continuous 50A, peak 240A 3S-12S (8V-60V)
    FSESC 4.20* Continuous 50A, peak 240A 3S-12S (8V-60V)
    VESC 6.6 mini dual drive 1-channel 100A continuous, 2-channel 200A continuous
    1-channel peak 400A, 2-channel total peak 800A
    3S-12S (8V-60V)
    VESC6.6 integrated switch dual drive version 1-channel 100A continuous, 2-channel 200A continuous
    1-channel peak 400A, 2-channel total peak 800A
    3S-12S (8V-60V)
    FSESC6.6 VESC6.6 single drive integration Continuous 60A, peak 150A 3S-12S (8V-60V)
    VESC4 dual drive integration 50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel 3S-12S (8V-60V)
    ODESC3.6 single drive/dual drive 50A continuous 1-channel, peak 120A 1-channel 3S-12S (8V-60V)
    VESC6 dual drive 1-channel 100A continuous, 2-channel 200A continuous
    1-channel peak 400A, 2-channel total peak 800A
    3S-12S (8V-60V)
    Single drive V6 75200 Continuous 200A 3S-12S (8V-60V)
    Single drive VESC6 waterproof version Continuous 60A, peak 150A 3S-12S (8V-60V)

    *Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.

    Tips: How to Effectively Waterproof Brushless Motor?

    Brushless motors are waterproof motors that work up to 30 feet below the ocean floor. This is a common industry standard named after "waterproof", not a modified standard motor, but a true waterproof motor, and they work well in deep water environments. Each strategy provides a different level of liquid protection when exploring waterproofing solutions. Many waterproofing methods will restrict air flow to the motor, which will negatively affect the high power output of the brushless motor. Common and effective motor waterproof methods are as follows: Covering the motor with a special housing is one of the common ways to prevent water damage. Use a waterproof shaft seal. It protects the moving parts of the motor, especially the shaft and bearings, and the waterproof shaft seal creates an enclosed area for the inner workings of the motor.
