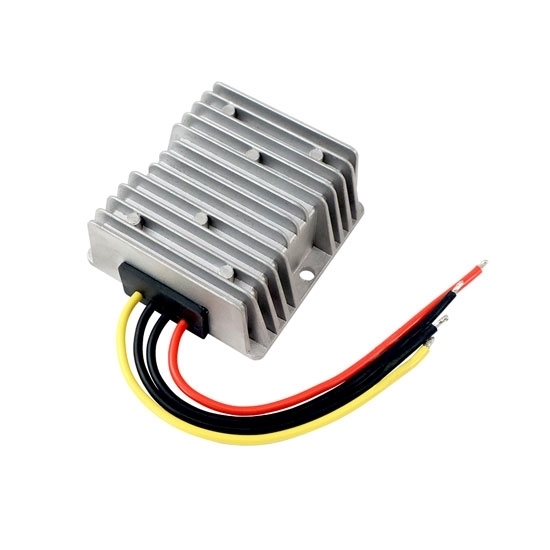

12 Volt DC to 24 Volt DC Step up Converter, 3A/4A/5A/8A/10A

Write a review

$50.06

Old price: $71.52

12V DC to 24V DC step up converter for sale, with 3A/4A/5A/8A/10A options, featuring 100% full-load burn-in testing and IP68 waterproof rating. Built-in protections against overload, over-temperature, over-voltage. Suitable for electric vehicles, LED drivers, and automotive electronics.

Output Current *

SKU: ATO-DCDC-12240310

Availability: In stock

Qty:

30-day Returns

Free Shipping

Delivery date: 2-12 days

Overview
Related Video
E-Catalog

This universal DC-DC boost converter delivers efficient 12V to 24V step-up conversion, reaching up to 95% efficiency. Built to operate reliably in temperatures from 40°C to 80°C. Durable and high-performance, this converter is a dependable choice for efficient power management.

3A DC-DC Converter Specification

Model	ATOWG-12S2403
Input	Rated voltage	12V
	Voltage range	9-23V
	Efficiency	95% @ 12V input
	Positive cable (red)	16 AWG @ 14.5cm length
	Negative cable (black)	16 AWG @ 14.5cm length
Output	Voltage	24V
	Max. rated current	3A
	Max. rated power	72W
	Voltage regulation	±1%
	Load regulation	2%
	No load loss	50mA
	Ripple & noise	200mV
	Positive cable (yellow)	16 AWG @ 14.5cm length
	Negative cable (black)	16 AWG @ 14.5cm length
Environment	Working temperature	-40 ~ +80℃
	Working humidity	10% ~ 90%RH
	Storage temperature	-40 ~ +100℃
Function	Short circuit protection	NO
	Over current protection	YES
	Waterproof	IP68
	Over temperature protection	YES
	Over voltage protection	YES
Mechanical	Weight	280g
	Size	747432mm

12V to 24V DC-DC Converter Model Selection

Code	Model	Price	Input Voltage	Output Voltage	Output Current	Output Power	Efficiency	Size	Download
1	ATOWG-12S2403	$50.06	12V DC	24V DC	3 Amps	72 Watts	95%	747432mm
2	ATOWG-12S2404	$56.45	12V DC	24V DC	4 Amps	96 Watts	94%	747432mm
3	ATOWG-12S2405	$66.75	12V DC	24V DC	5 Amps	120 Watts	94%	747432mm
4	ATOWG-12S2408	$78.72	12V DC	24V DC	8 Amps	192 Watts	93%	747432mm
5	ATOWG-12S2410	$86.93	12V DC	24V DC	10 Amps	240 Watts	92%	747432mm

Feature

Wide input voltage range: 9V to 23V.
The 12V to 24V DC-DC converter includes overload, over-temperature, and over-voltage protections.
Brand-new, die-cast aluminum shell and high quality design, maximum transfer efficiency of 95%.
This DC-DC converter comes with waterproof lever of IP68, moisture-proof & anti-shock protection.
Auto-recovery when device is back to normal operating.
Industry grade 12V DC to 24V DC boost converter, widely used in automotive, electricity, surveillance systems, railway signals, instruments, solar generate electricity, display screen of bus and taxi, car audio device, security systems, hospital equipment, telecommunications etc.

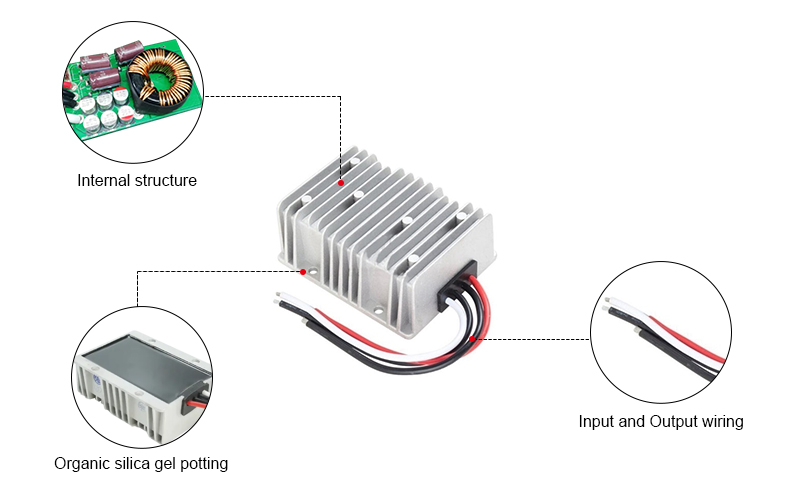

Detail

dc dc converter detials

Tips: Installation Guide for 12V DC to 24V DC Step-up Converter

Check specifications: Ensure the load device can accept 24V DC output and that the DC-DC boost converter’s current rating (3A/4A/5A/8A/10A) matches the device’s requirements.
Power off: The 12V DC input source (battery or power supply) should be turned off before wiring.
Connect input and output: Connect the 12V source positive (+) wire to VIN+ and negative (−) wire to VIN−. Connect VOUT+ to the positive terminal of the 24V device and VOUT− to the negative terminal.
Secure connections: All wires should be firmly connected; loose or exposed wires must be avoided to prevent short circuits.
Power on and test: Turn on the 12V DC source, verify that the output voltage reads approximately 24V DC, connect the device, and confirm normal operation. Monitor for overheating during initial operation.
Optional mounting: For permanent setups, the efficient DC-DC converter can be mounted in a ventilated, dry location. Despite the IP68 waterproof rating, prolonged exposure to water is not recommended.
