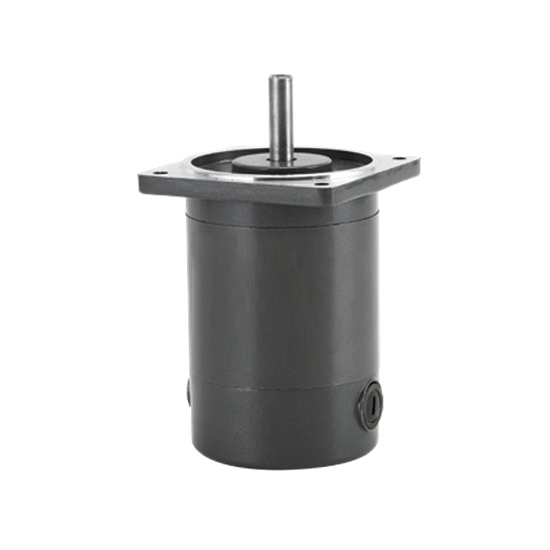

15 W DC Gear Motor, 1800 rpm, 12V/24V

Buy 12V or 24V DC gear motor online. 15W electric DC motor features 1800 rpm rated speed,  0.37 Nm/0.41 Nm rated torque, combines with a gearbox to provide precise speed and position control. 5:1 to 18:1 gear ratios are available.

Specifications

Note 1: Motor voltage, power, and speed can be customized according to customer requirements, provided the available size allows.

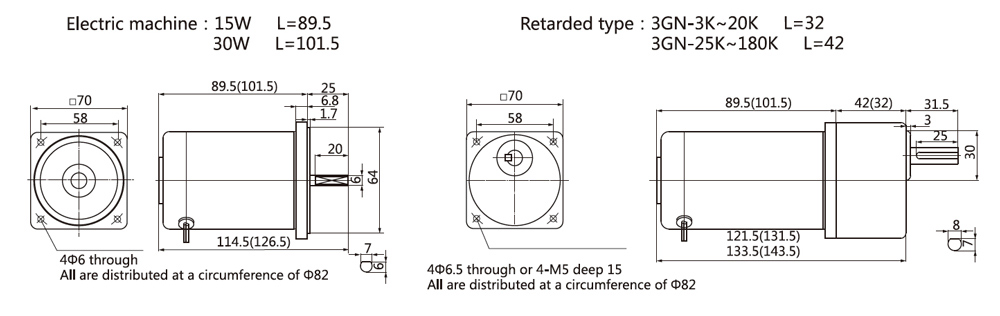

Dimension (Unit: mm)

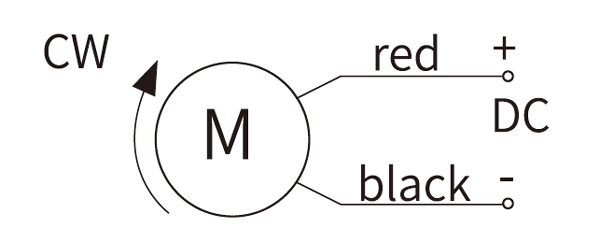

Wiring Diagram of Motor

Note 2: Standard lead length: 300mm±10; Model: UL1015; Type: AWG20. Lead length and type can be customized according to customer requirements, provided the available dimensions permit.

Tips: Low power DC Gear Motor Main Applications

• Robotics: They are used to drive small robot wheels and arms, providing high torque at low speed and precise motion control.
• Home Appliances: Low power DC gear motors are commonly used in automatic door locks, electric curtains, and coffee machines, where quiet and energy-efficient operation is needed.
• Automotive Systems: Found in power windows, seat adjusters, and mirror controls, thanks to their compact size and low power consumption.
