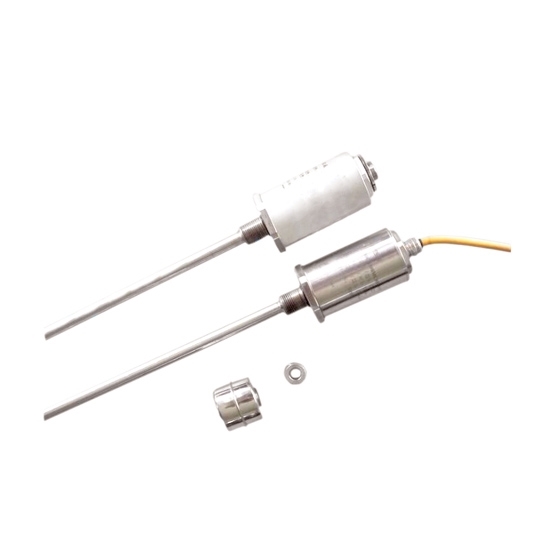

1500mm Magnetostrictive Fuel Level Sensor for lapping machine

$1,079.81

Magnetostrictive level transducer for lapping machine, high precision, no temperature drift, anti-jamming performance, long life, high temperature resistance, corrosion resistance, high pressure resistant.

SKU: ATO-MSL-1500

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Magnetostrictive fuel level sensor with measuring range 1500mm is used for the fuel level preset and feedback, such as the fuel level of lapping machine hydro-cylinder. Magnetostrictive level sensors have effective travel 50mm~15000mm, can be used in most industrial automation systems.

Specification:

Basics	Model	ATO-MSL-1500
	Measuring range	0~1500 mm
	Shipping weight	8 kg
	Length	1699.3 mm
	Diameter	51 mm
Technical parameters	Linearity	≤0.03%FS
	Repeatability	≤0.003%FS
	Resolution ratio	≤0.001%FS
	Hysteresis	≤0.001%FS
	Working Voltage	24V /12V DC
	Working current	Voltage /digital output type≤16mA; Current output type≤35mA
	Output method	0~5V / 0~10V / 4~20mA / 0-20mA RS485 binary digital signal / SSI gray code signal
	Product type	Normal type; Explosion-proof type; Anti-corrosion type
	Measuring rod material	0Cr18Ni9 (304) or 316L stainless steel (secial custom-made)
	Measuring rod diameter	Ф10mm
	Electronic bin material	1Cr18Ni9 (304)
		304 and PTFE casing outside (Anti-corrosion type, special custom-made)
		1Cr18Ni9Ti and protection cover outside (Anti-corrosion type, special custom-made)
	Connecting screw thread	M18×1.5; M20×1.5; 3/4-16UNF
	Type of lead wire	PVC shielded cable; aviation plug (not applicable to explosion-proof type)
	Measuring rod pressure	40MPa, 70MPa (Explosion-proof type)
	Temperature	T1: 0~+ 70℃, T2: -25~+80℃, T3: -40~+120℃
	Buffer area	Front-end of buffer 50.8mm (electronic bin), the end of the buffer 63.5mm (the buffer area can be custom-made)
	Vibration	100g, IEC standards 68-2-715g /10-2000Hz IEC standards 68-2-6
	Protection Class	IP67
	Explosion-proof level	Explosion-proof type: EXd II BT5

Installation diagram (unit: mm):
magnetostrictive level sensor PG7 connection

Tips: Application fields of magnetostrictive liquid level sensor

Detect the position of servo hydraulic piston (in special multi-cylinder system)
Measure the fuel level of heading machine, shield tunneling machine and coal mine machine cylinder
Measure the fuel level of engineering hoisting machine cylinder (multi-cylinder equilibrium)
Detect the fuel level of machine cylinder of steel mills such as rolling mill (dynamic adjustment of multi-group pitch)
Detect the displacement of cylinder of bottle blowing machine
Detect reservoir level and the opening position of water gate
Detect the fuel level of oil tank (measuring of volume or weight, petroleum and chemical plant, transshipment oil depot, war preparedness oil depot and gas stations, etc.)
Detect the liquid level of operation field

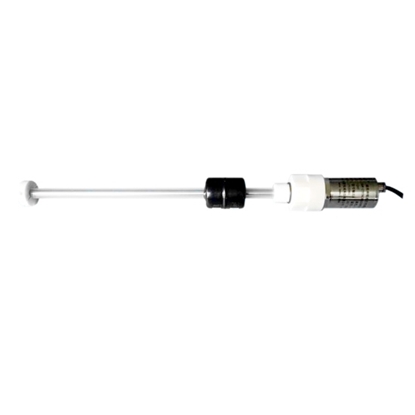

Detect the liquid level of chemical container
Detect the level of drinking water and sewage treatment system
Detect the position of valve opening (in proportion control system)
