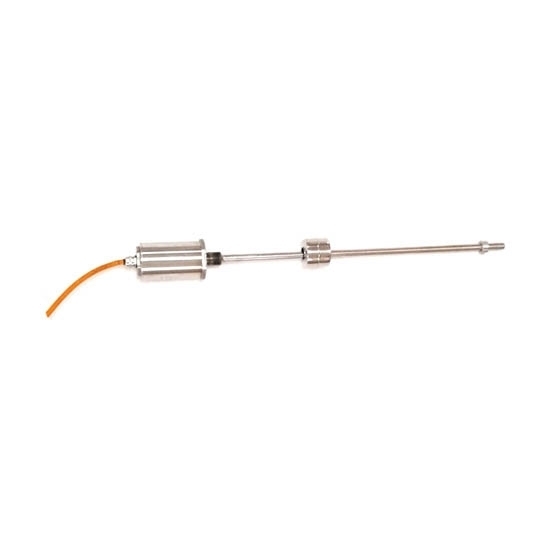

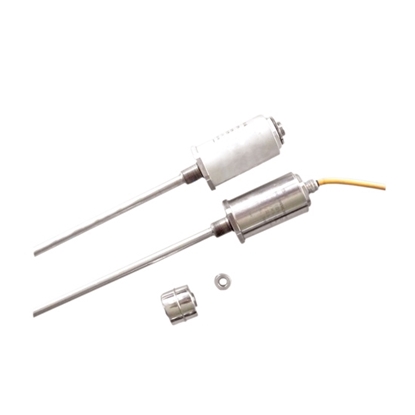

    1000mm Level Sensors for sewage disposal system

    Magnetostrictive level transducer for sewage disposal system, high precision, no temperature drift, anti-jamming performance, long life, high temperature resistance, corrosion resistance, high pressure resistant.
    SKU: ATO-MSL-1000
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Magnetostrictive level sensor with measuring range 1000mm is used for the liquid level preset and feedback, such as the liquid level of sewage. Magnetostrictive transducers also can be used in most industrial automation systems.


    Basics Model ATO-MSL-1000
    Measuring range 0~1000 mm
    Shipping weight 5.5 kg
    Length 1199.3 mm
    Diameter 50 mm
    Technical parameters Linearity ≤0.03%FS
    Repeatability ≤0.003%FS
    Resolution ratio ≤0.001%FS
    Hysteresis ≤0.001%FS
    Working Voltage 24V /12V DC
    Working current Voltage /digital output type≤16mA; Current output type≤35mA
    Output method 0~5V / 0~10V / 4~20mA / 0-20mA RS485 binary digital signal / SSI gray code signal
    Product type Normal type; Explosion-proof type; Anti-corrosion type
    Measuring rod material 0Cr18Ni9 (304) or 316L stainless steel (secial custom-made)
    Measuring rod diameter Ф10mm
    Electronic bin material 1Cr18Ni9 (304)
    304 and PTFE casing outside (Anti-corrosion type, special custom-made)
    1Cr18Ni9Ti and protection cover outside (Anti-corrosion type, special custom-made)
    Connecting screw thread M18×1.5; M20×1.5; 3/4-16UNF
    Type of lead wire PVC shielded cable; aviation plug (not applicable to explosion-proof type)
    Measuring rod pressure 40MPa, 70MPa (Explosion-proof type)
    Temperature T1: 0~+ 70℃, T2: -25~+80℃, T3: -40~+120℃
    Buffer area Front-end of buffer 50.8mm (electronic bin), the end of the buffer 63.5mm (the buffer area can be custom-made)
    Vibration 100g, IEC standards 68-2-715g /10-2000Hz IEC standards 68-2-6
    Protection Class IP67
    Explosion-proof level Explosion-proof type: EXd II BT5

    Installation diagram (unit: mm):
    magnetostrictive level sensor PG7 connection

    Tips: Three module of magnetostrictive displacement sensor
    Magnetostrictive sensor consists of three modules: measurement module, position detection module and circuit measurement module, in which the measurement module is composed of waveguide tube, waveguide wire, signal output terminal and front damping component. Position detection module is composed of steel ring and embedded permanent magnet block, in which the outer diameter of the steel ring can be changed according to actual requirement; Circuit measurement module is comprised of signal input interface, signal output interface, power interface and signal generation & acquisition circuit.
