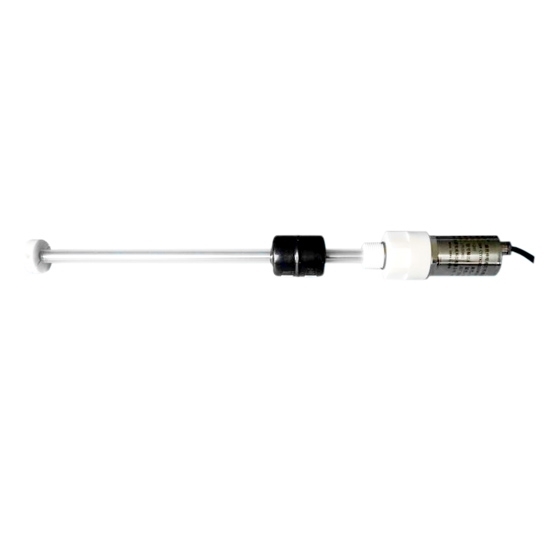

    2000mm Magnetostrictive Level Sensor for chemical containers

    Magnetostrictive liquid level sensor for chemical containers, high precision, no temperature drift, anti-jamming performance, long life, high temperature resistance, corrosion resistance, high pressure resistant.
    SKU: ATO-MSL-2000
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Non contact liquid level sensor with measuring range 2000mm is used for the liquid level preset and feedback, such as the liquid level of chemical containers. Magnetostrictive level sensors have effective travel 50mm~15000mm, can be used in most industrial automation systems.


    Basics Model ATO-MSL-2000
    Measuring range 0~2000 mm
    Shipping weight 10.5 kg
    Length 2199.3 mm
    Diameter 50 mm
    Technical parameters Linearity ≤0.03%FS
    Repeatability ≤0.003%FS
    Resolution ratio ≤0.001%FS
    Hysteresis ≤0.001%FS
    Working Voltage 24V /12V DC
    Working current Voltage /digital output type≤16mA; Current output type≤35mA
    Output method 0~5V / 0~10V / 4~20mA / 0-20mA RS485 binary digital signal / SSI gray code signal
    Product type Normal type; Explosion-proof type; Anti-corrosion type
    Measuring rod material 0Cr18Ni9 (304) or 316L stainless steel (secial custom-made)
    Measuring rod diameter Ф10mm
    Electronic bin material 1Cr18Ni9 (304)
    304 and PTFE casing outside (Anti-corrosion type, special custom-made)
    1Cr18Ni9Ti and protection cover outside (Anti-corrosion type, special custom-made)
    Connecting screw thread M18×1.5; M20×1.5; 3/4-16UNF
    Type of lead wire PVC shielded cable; aviation plug (not applicable to explosion-proof type)
    Measuring rod pressure 40MPa, 70MPa (Explosion-proof type)
    Temperature T1: 0~+ 70℃, T2: -25~+80℃, T3: -40~+120℃
    Buffer area Front-end of buffer 50.8mm (electronic bin), the end of the buffer 63.5mm (the buffer area can be custom-made)
    Vibration 100g, IEC standards 68-2-715g /10-2000Hz IEC standards 68-2-6
    Protection Class IP67
    Explosion-proof level Explosion-proof type: EXd II BT5

    Installation diagram (unit: mm):
    magnetostrictive level sensor PG7 connection

    Tips: How to use magnetostrictive liquid level sensor in oil tank?
    When the magnetostrictive liquid level sensor is used for the oil storage tank, it should be installed on the flange or threaded interface. The user should provide exact model or size of the two interfaces. Due to the height or air-tightness of the oil tube, it is necessary to install magnetostrictive transmitter for the users. Because the magnetostrictive liquid level sensor is separated from the digital panel meter. The user can choose to buy panel meter or not according to the actual demand. For some substances with less harm and no high requirements for the air-tightness, ordinary computer can be used to replace the digital panel meter. For devices such as oil tank, it is safe to use special panel meter. ATO digital panel meters is installing the corresponding software system, so that it can be used for display intensively (or display independently) and control on site.
