    2 hp (1500W) Submersible/Deep Water Well Pump, 110VDC

    $896.98
    2 hp well pump with 110V DC working voltage, special DC controller. Water well pump has optional maximum flow 3.8m³/ h ~ 19.0m³/ h (1000 gph ~ 5000 gph), maximum head 34m ~ 203m (110 ~ 665ft), inlet diameter 3 inch/ 4 inch, internal BLDC motor. Submersible well pump can be used for water tank, fountain, water feature or pool.
    SKU: ATO-WWP-110V1500
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Factory price deep well pump with 80cm/ 60cm length, 4000 rpm speed, single-suction plastic impeller/ single-suction stainless steel impeller impeller structure and LED display of DC controller can show power, voltage, current and speed values.

    Well Pump Features

    Model 3DPC3.8-180-110-1500 3DSC4.8-130-110-1500 4DPC6-135-110-1500 4DPC9-71-110-1500 4DPC13-60-110-1500
    Max. flow 3.8m³/ h (1004 gph, American system) 4.8m³/ h (1268 gph, American system) 6m³/ h (1585 gph, American system) 9m³/ h (2378 gph, American system) 13m³/ h (3434 gph, American system)
    Max. head 180m (590ft) 130m (425ft) 135m (440ft) 71m (230ft) 60m (195ft)
    Length 80cm 80cm 60cm 60cm 60cm
    Inlet diameter 3 inch 3 inch 4 inch 4 inch 4 inch
    Outlet diameter 1.25 inch 1.25 inch 1.25 inch 2 inch 2 inch
    Impeller structure Single-suction plastic impeller Single-suction stainless steel impeller Single-suction plastic impeller Single-suction plastic impeller Single-suction plastic impeller
    Material of outlet/connector/oil cylinder Brass Stainless steel Brass Brass Brass
    Model 4DSC5-146-110-1500 4DSC4.5-203-110-1500 4DSC7-100-110-1500 4DSC9-59-110-1500 4DSC19-34-110-1500
    Max. flow 5m³/ h (1321 gph, American system) 4.5m³/ h (1189 gph, American system) 7m³/ h (1849 gph, American system) 9m³/ h (2376 gph, American system) 19m³/ h (5019 gph, American system)
    Max. head 146m (475ft) 203m (665ft) 100m (325ft) 59m (190ft) 34m (110ft)
    Length 60cm 60cm 60cm 60cm 60cm
    Inlet diameter 4 inch 4 inch 4 inch 4 inch 4 inch
    Outlet diameter 1.25 inch 1.25 inch 1.25 inch 2 inch 2 inch
    Impeller structure Single-suction stainless steel impeller Single-suction stainless steel impeller Single-suction stainless steel impeller Single-suction stainless steel impeller Single-suction stainless steel impeller
    Material of outlet/connector/oil cylinder Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel
    Voltage 110V DC
    Power 2 hp (1500W)
    Internal motor Brushless DC motor
    Speed 4000rpm
    Material of shaft 304 stainless steel
    Material of outlet/connector/oil cylinder Brass
    No water protection function The pump stops working automatically when there is no water in the well, and it will automatically restart working 30 minutes later.
    Required open circuit voltage (VOC) of solar panel <100V DC
    Required power of solar panel ≥1.3*pump power
    Efficiency 45%
    Warranty 2 years
    Cable length 2m

    Controller Features

    Model DF-110
    Best MPPT voltage range 110-150V DC
    Max. input current 15A
    Working temperature -15~+60℃ (5~140℉)
    Display LED display can show power, voltage, current and speed value.
    Functions Automatic charging (for battery)
    Variable frequency
    Automatic power ON/ OFF
    Soft start
    High voltage/ low voltage/ over-current/ high temperature protection
    Protection class IP65

    Package included

    • 1 * Water well pump with 2m cable
    • 1 * DC controller
    • 1 * Stainless steel float switch (water level sensor for the tank)
    • 1 * Pump outlet joint connector
    • 1 * Splice kit for cable join
    • 1 * Splice kit for waterproof
    • 1 * User manual

    1500W 110V DC water well pump performance curves:

    Max. Flow: 3.8m³/h, Max. Head: 180m, Model: 3DPC3.8-180-110-1500

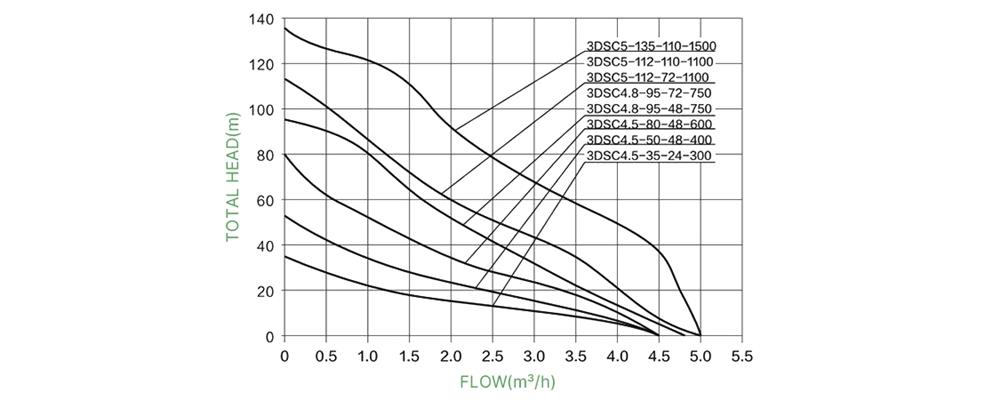

    1500W 110V DC water well pump high head performance curves

    Max. Flow: 4.8m³/h, Max. Head: 130m, Model: 3DSC4.8-130-110-1500

    2 hp 110V DC 3 inch water well pump performance curves

    Max. Flow: 6.0m³/h, Max. Head: 135m, Model: 4DPC6-135-110-1500
    Max. Flow: 9.0m³/h, Max. Head: 71m, Model: 4DPC9-71-110-1500
    Max. Flow: 13.0m³/h, Max. Head: 60m, Model: 4DPC13-60-110-1500

    1500W 110V DC 4 inch water well pump performance curves

    Max. Flow: 5.0m³/h, Max. Head: 146m, Model: 4DSC5-146-110-1500
    Max. Flow: 4.5m³/h, Max. Head: 203m, Model: 4DSC4.5-203-110-1500
    Max. Flow: 7.0m³/h, Max. Head: 100m, Model: 4DSC7-100-110-1500

    1500W 110V DC 4 inch water well pump high head performance curves

    Max. Flow: 9.0m³/h, Max. Head: 59m, Model: 4DSC9-59-110-1500
    Max. Flow: 19.0m³/h, Max. Head: 34m, Model: 4DSC19-34-110-1500

    1500W 110V DC 4 inch water well pump high flow performance curves

    Tips: Why the Water Pumping System Will be the Best Choice for Irrigation?

    The solar water pumping system is mainly composed of PV panels, a PV water pump inverter and a water pump. The solar water pumping system utilizes the long-lasting energy from the sun, works at sunrise, and rests at sunset. It doesn't require personnel to take care of it, doesn't require diesel, doesn't require a power grid, and can be used with irrigation facilities such as drip irrigation, sprinkler irrigation, and infiltrating irrigation. Significantly saving the water and energy power, reduce the input cost.

    Advantages of solar water pumping system:

    1. Reliable: Photovoltaic power supplies rarely use moving parts and can work reliably.
    2. Safe, no noise, no other public hazards. The system doesn't produce any solid, liquid and gaseous harmful substances. It's absolutely environmentally friendly.
    3. Simple installation and maintenance, low operating cost, suitable for unattended.
    4. Good compatibility, photovoltaic power generation can be used together with other energy sources, and the photovoltaic system can be easily added the capacity as requirement.
    5. The degree of standardization is high. The components can be connected in series and parallel to meet the needs of different power consumption. The versatility is strong.
    6. Solar energy is available everywhere and has a wide range of applications.
