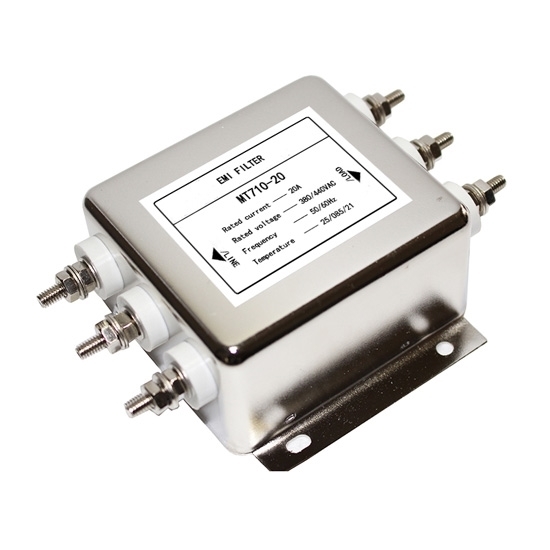

    20A EMI/RFI Power Line Filter, 3 phase

    $85.07
    EMI/RFI power line filter, three-phase three-wire single-stage, rated current 20 Amps and rated voltage 250V/440V AC. Low leakage current, compact design, threaded stud connection and excellenct attenuation performance.
    SKU: ATO-EMI-1020
    Free Shipping Worldwide
    Delivery date: 15-30 days

    20A EMI/RFI power line filter is a general purpose 3-phase 3-wire power filter with excellent differential mode and common mode attenuation performance in industrial automation equipment such as 3-phase motor drive, UPS, packaging equipment, textile equipment, industrial air conditioners, etc.

    Specification

    Model ATO-MT710-20
    Filter Type EMI
    Configuration Single Stage
    Rated Current @ 40℃ 20A
    Rated Voltage 250V/440V AC
    Operating Frequency 50/60Hz
    Phase Three Phase Three Wire
    Leakage Current ≤5mA @ 250V AC 50Hz 20℃
    Filter Range 150KHz-30MHz
    Hipot Rating (one minute) Line to Line 1450V DC
    Line to Ground 2250V DC
    Climatic Category 25/085/21
    Working Temperature -25°C~+85°C
    Output Termainal Threaded stud M4
    Weight 600g
    Dimension See below

    Dimensions (Unit: mm)

    20A 3-phase EMI Line Filter Dimension

    Electrical Schematic

    Three phase emi filter electrical schematic

    Insertion Loss Table (in 50Ω system acccording to IEC/CISPR No.17)

    6A 10A 20A 30A Power Line Filter Insertion Loss Table

    40A 50A 100A EMI Line Filter Insertion Loss Table

    Tips: Performance of EMI/RFI line filter in power supply equipment

    1. Prevent outside electromagnetic noise from interfering control circuit working of power supply equipment.
    2. Prevent outside electromagnetic noise from interfering power supply loading.
    3. Restrain the EMI generating from power supply equipment itself.
    4. Restrain the EMI which is generated by other equipment and passes through the power supply.

    When switching power supply is working and electronic equipment is under switching on/off status, it may appear terminal noise at power supply equipment input end and generate radiation and conducting interference, which may also enter AC power grid and interfere other electronic equipment. Therefore, it should take effective measures to restrain. Electromagnetic shielding is the best way for restraining radiation interference of EMI noise. Using EMI/RFI line filter is very effective measure for restraining conducting interference of EMI noise.
