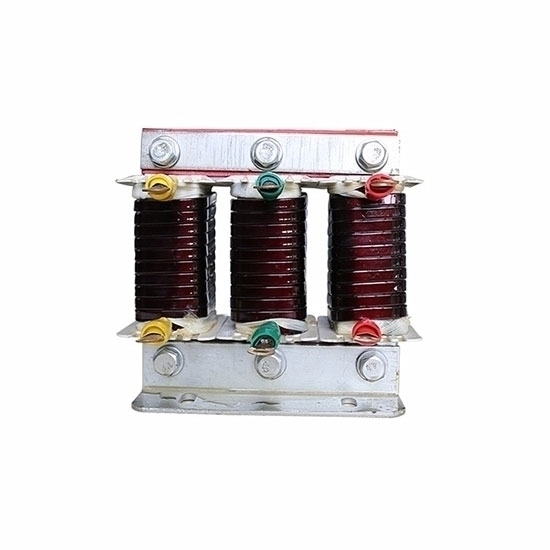

    25 hp (20 kW) AC Line Reactor, 3 Phase Input

    20 kW vfd input line reactor, three phase input, for connecting to the load side of the inverter, with 50A current, frequency 50Hz/60Hz, F, H insulation level greatly improves the reliability of long-term operation.
    SKU: ATO-ILR-020
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    25 hp AC reactor, 20 kW power, 3 phase input, 50 Amps, frequency of 50Hz/60 Hz, vfd line reactor coil adopts F and H class insulation system, which greatly improves the reliability of long-term operation.

    25 hp Input Line Reactor Specifications

    Basic Model ATOACR-0050-0M28-0.4SC
    Recommended VFD Model GK3000-4T0185G (25 hp three phase VFD)
    Phase 3 Phase
    Power 25 hp (20 kW)
    Weight 11 kg
    Technical Parameters Work Valtage 380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
    Work Frequency 50Hz/60 Hz
    Rated Current 50 A
    Max Current 1.5 Times the Rated Current, Continued 60s
    Inductance Value 0.28 mH
    Material Aluminium/Copper (Optional)
    Voltage Drop 2%
    Noise ≤65dB
    Insulation Class Class F, H
    Protection Class IP00-IP22
    Insulation Resistor ≥100MΩ
    Working Environment Operation Environment -10℃~+45℃
    Temperature Rise ≤85K
    Humidity ≤90%RH, without condensation
    Running Ambient Temperature -25℃~+45℃
    Altittude ≤2000m

     25 hp Input Line Reactor Size & Circuit Diagram

    picture circuit diagram

    Dimension (±5mm)
    L D W W1 H A×B
    155mm 95mm 140mm 76mm 135mm 6×15


    Commonly used reactors in power systems are series reactors and shunt reactors.
    Series reactors are mainly used to limit the short-circuit current, and are also used in series or in parallel with capacitors in the filter to limit higher harmonics in the grid. The reactors in the 220kV, 110kV, 35kV, and 10kV power grids are used to absorb the capacitive reactive power of the cable lines. The operating voltage can be adjusted by adjusting the number of shunt reactors.
