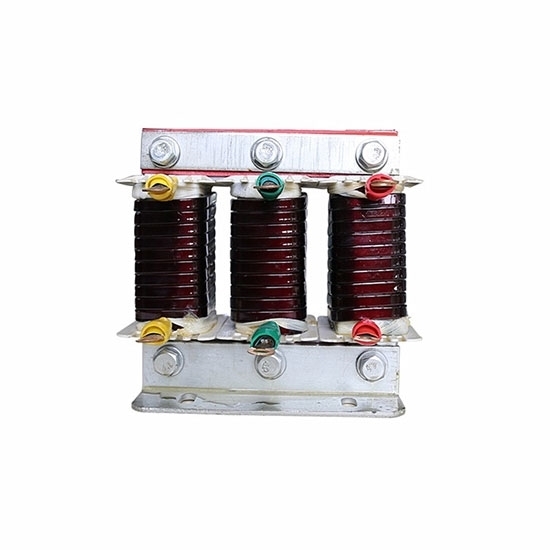

    3 hp (2.2 kW) AC Line Reactor, 3 Phase Input

    5 out of 5 based on 1 reviews | Write a review
    $244.54
    3 Phase VFD input line reactor, 3 hp (2.2 kW) power, 7A rated current, reactor voltage range from 220V, 380V, 400V, 460V to 480V can be selected, direct sales at factory prices, 12 months warranty.
    SKU: ATO-ILR-2d2
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    7 Amps favorable price 3 hp AC input line reactor, 3 phase, 2.2 kW, voltage 220V, 240V, 400V, 415V, 440V and 480V are availeble, with 50Hz/60 Hz working frequency, impact resistance, high structural strength and high quality.

    3 hp Input Line Reactor Specifications

    Basic Model ATOACR-0007-2M00-0.4SC
    Recommended VFD Model GK3000-4T0022G (3 hp three phase VFD)
    Phase 3 Phase
    Power 3 hp (2.2 kW)
    Weight 2.6 kg
    Technical Parameters Work Valtage 380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
    Work Frequency 50Hz/60 Hz
    Rated Current 7 A
    Max Current 1.5 Times the Rated Current, Continued 60s
    Inductance Value 2 mH
    Material Aluminium/Copper (Optional)
    Voltage Drop 2%
    Noise ≤65dB
    Insulation Class Class F, H
    Protection Class IP00-IP22
    Insulation Resistor ≥100MΩ
    Working Environment Operation Environment -10℃~+45℃
    Temperature Rise ≤85K
    Humidity ≤90%RH, without condensation
    Running Ambient Temperature -25℃~+45℃
    Altittude ≤2000m

    3 hp Input Line Reactor Size & Circuit Diagram

    ac reactor sizecircuit diagram

    Dimension (±5mm)
    L D W W1 H A×B
    115mm 90mm 95mm 68mm 135mm 6×11

    Tips: What about local heating of line reactor?

    If input AC line reactor has local heating, reduce the loads of input line reactor and strengthen ventilation. If necessary, take temporary measures to strengthen the fan cooling of the powerful fan, and then eliminate the defect when there is a chance to power off.

    Existing reviews of 3 hp (2.2 kW) AC Line Reactor, 3 Phase Input
    Well-constructed and solid product of superior quality.
    This AC reactor works well on my ac motor. A well-constructed and solid product of superior quality. The seller provide perfect service. I highly recommend this reactor!
