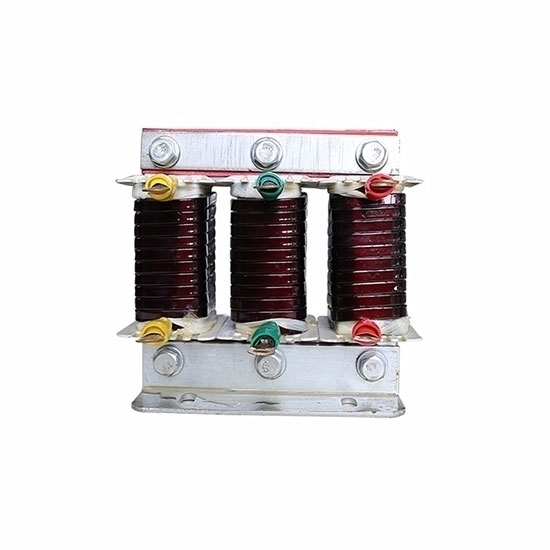

    15 hp (11 kW) 3 Phase AC Input Line Reactor for VFD

    5 out of 5 based on 1 reviews | Write a review
    $85.90
    Reactor voltages are available in 220V, 380V, 400V, 460V to 480V and other specifications, and has good stability, 3 phase, with 30A and 11 kW. The low cost and long life AC input line reactor for VFD, direct sale by manufacturer, very convenient.
    SKU: ATOACR-0030-0M47-0.4SC
    *
    *
    Free shipping
    Delivery date: 6-12 days

    15 hp Input Line Reactor Features

    • The rated current is 30A.
    • 3 phase unit with 11 kW power for VFD.
    • Low price, long life.
    • Widely used in various power supply sites with frequency 50Hz/60 Hz.
    • High quality and safety AC input line reactor.

    15 hp Input Line Reactor Specifications

    Basic Model ATOACR-0030-0M47-0.4SC
    Phase 3 Phase
    Power 15 hp (11 kW)
    Weight 5 kg
    Technical Parameters Work Valtage 380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
    Work Frequency 50Hz/60 Hz
    Rated Current 30 A
    Max Current 1.5 Times the Rated Current, Continued 60s
    Inductance Value 0.47 mH
    Material Aluminium/Copper (Optional)
    Voltage Drop 2%
    Noise ≤65dB
    Insulation Class Class F, H
    Protection Class IP00-IP22
    Insulation Resistor ≥100MΩ
    Working Environment Operation Environment -10℃~+45℃
    Temperature Rise ≤85K
    Humidity ≤90%RH, without condensation
    Running Ambient Temperature -25℃~+45℃
    Altittude ≤2000m

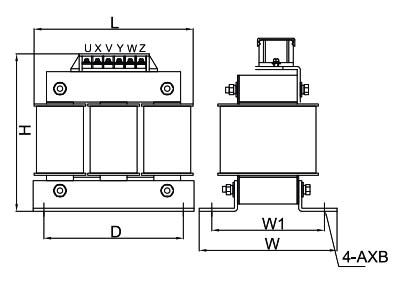

    15 hp Input Line Reactor Size & circuit diagram

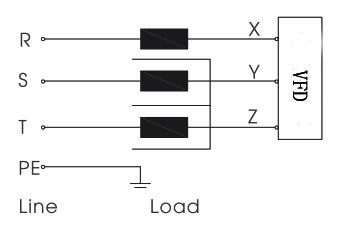

    picture circuit diagram

    Dimension (±5mm)
    L D W W1 H A×B
    155mm 95mm 130mm 63mm 135mm 6×15

    Tips:

    Reactors are also called inductors. When a conductor is energized, a magnetic field is generated in a certain spatial range around it, so all current-carrying electrical conductors have a general sense of inductivity. However, the inductance of the energized long straight conductor is small, and the generated magnetic field is not strong. Therefore, the actual reactor is a wire wound into a solenoid form, which is called a hollow reactor; sometimes, in order to make the solenoid have a larger inductance, Insert the iron core into the solenoid, called the iron core reactor.
