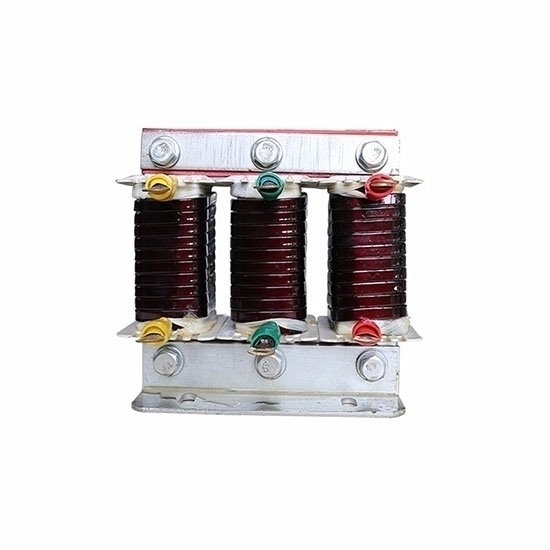

    20 hp (15 kW) AC Line Reactor, 3 Phase Input

    5 out of 5 based on 1 reviews | Write a review
    15 kW VFD line reactor, 3 phase input, voltage 220V, 380V, 400V, 460V and 480V are optional, the rated current is 40 amps. AC line reactor adopts vacuum dipping process and is cured by high temperature heat curing, the coil has good insulation performance.
    SKU: ATO-ILR-015
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Sell vfd line reactor at the best price, 20 hp power, three phase, frequency 50Hz/60 Hz, has good insulation and good moisture-proof effect, safe and reliable operation.

    20 hp Input Line Reactor Specifications

    Basic Model ATOACR-0040-0M36-0.4SC
    Recommended VFD Model GK3000-4T0150G (20 hp three phase VFD )
    Phase 3 Phase
    Power 20 hp (15 kW)
    Weight 10 kg
    Technical Parameters Work Valtage 380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
    Work Frequency 50Hz/60 Hz
    Rated Current 40 A
    Max Current 1.5 Times the Rated Current, Continued 60s
    Inductance Value 0.36 mH
    Material Aluminium/Copper (Optional)
    Voltage Drop 2%
    Noise ≤65dB
    Insulation Class Class F, H
    Protection Class IP00-IP22
    Insulation Resistor ≥100MΩ
    Working Environment Operation Environment -10℃~+45℃
    Temperature Rise ≤85K
    Humidity ≤90%RH, without condensation
    Running Ambient Temperature -25℃~+45℃
    Altittude ≤2000m

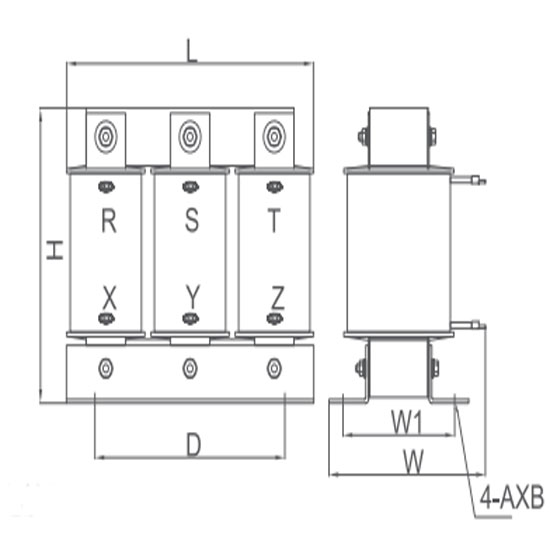

     20 hp Input Line Reactor Size & Circuit Diagram

    picture bcircuit diagram

    Dimension (±5mm)
    L D W W1 H A×B
    155mm 95mm 140mm 76mm 135mm 6×15


    VFD and governor are often subjected to shocks from surge currents and surge voltages during use, which can seriously damage the performance and service life of the VFD and governor, so install an input reactor in front of it. It is used to suppress surge voltage and surge current, protect VFD and governor, prolong its service life and prevent harmonic interference. At the same time, since VFD and governor are regulated by frequency conversion, they are adjusted. At high speeds, high-order harmonics and waveform distortion are often generated, which will affect the normal use of the equipment. To this end, a line reactor must be installed at the input end to improve the power factor of the VFD and suppress harmonic currents. In addition to harmonic voltage and harmonic current, improve grid quality.
