2 amp 3 pole Miniature Circuit Breaker

5 out of 5 based on 1 reviews | Write a review

$81.69

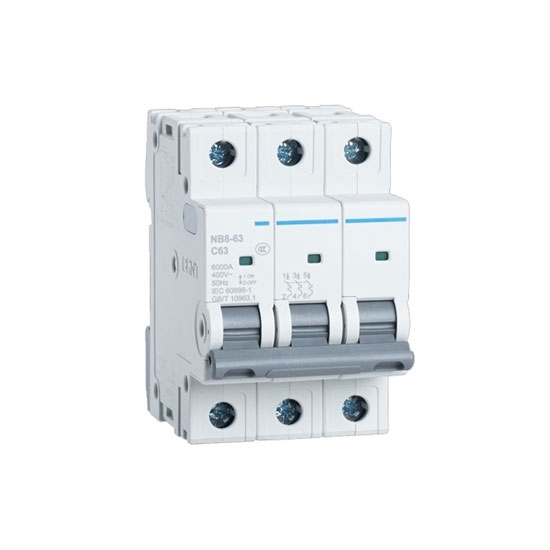

3 pole 2 amp miniature circuit breaker (MCB) meets IEC standard for rail mounting and with 6kA rated short-circuit breaking capacity. This mini circuit breaker with the C curve trip characteristic gives you the ability to configure the exact protection scheme you require.

SKU: ATO-MCB-3P02

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

3 pole miniature circuit breaker (MCB) is ideal for the protection of circuits in industrial, commercial, and residential sectors, offering reliable and efficient protection for a wide range of applications. This 2 amp micro circuit breaker ensures that circuits are quickly disconnected in the event of a fault, preventing potential damage to equipment, and wiring, and reducing the risk of electrical fires.

3 Pole MCB Breaker Information

Rated Current: 2 amp
Rated Voltage: 230/400V AC, 50Hz
Number of poles: 3 pole
6 kA rated short-circuit breaking capacity
Compliant with IEC standard
C curve trip characteristic
With overload protection and short circuit protection function

Technical Data

Model		ATO-NB8-633PC02
Rated Current		2A
Rated Voltage		230/400V
Frequency		50Hz
Number of Poles		3P
Mechanical Life		20000 Times
Electrical Life		10000 Times
Rated Short-Circuit Breaking Capacity		6000A
Operating Short-Circuit Breaking Capacity		6000A
Rated Impulse Withstand Voltage (1.2/50)		6kV
Dielectric Test Voltage		2000V (50Hz, 1 min)
Heat & Humidity Resistance		28 Cycles
Vibration Resistance		No Obvious Vibration and Impact
Terminal Block	Terminal Block Type	Pillar Terminal Block
	Min. Terminal Size Acceptability	1mm²
	Max. Terminal Size Acceptability	25mm²
	Standard Connection Torque	2 N.m
	Max. Tolerable Torque	2.5 N.m
	Wire Insertion Depth	13mm
Reference Temperature		30℃
Operating Temperature		-35℃~+70℃
Storage Temperature		35℃~+85℃
Applicable Altitude		2000m
Tripping Mode		Thermal Magnetic Trip
Electromagnetic Tripping Type		Type C (5In-10In)
Shell Flame Retardant Grade		V0
Wire Entry Method		Both Upper and Lower
Installation Method		TH35-7.5 Standard Rail
Protection Level	Direct Installation	IP20B
	Installed in the Distribution Box	IP40B

3 Pole MCB Breaker Dimensions (Unit: mm)

2 amp 3 pole Miniature Circuit Breaker Dimensions

Details

3 Pole Miniature Circuit Breaker Details

Tips: How to choose an MCB breaker?

When selecting an MCB (Miniature Circuit Breaker), consider the following factors:

Current Rating: Choose an MCB with a current rating that matches the expected load of the circuit. For example, for a 2 amp load, select a 16A MCB.
Voltage Rating: Ensure the mini circuit breaker is rated for the voltage of your system, typically 230V for residential or 400V for industrial applications.
Breaking Capacity: The micro circuit breaker should have a breaking capacity (the maximum fault current it can safely interrupt) that exceeds the potential short-circuit current in your system.
Trip Curve: MCBs have different trip curves (B, C, D). Curve B is suitable for residential circuits with resistive loads, while C is ideal for circuits with moderate inrush currents like motors.
Number of Poles: Select the number of poles based on your circuit type—single pole for single-phase or multi pole for three-phase systems.
