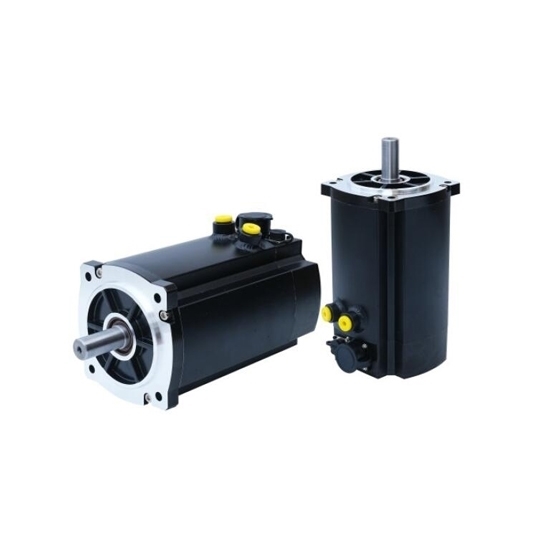

3.6 kW Servo Motor, Water Cooled, 380V, 11.5 Nm, 3000 rpm

5 out of 5 based on 2 reviews | Write a review

$991.53

Cheap 3.6kW water-cooled servo motor provides rated voltage 380V, rated current 11A, rated torque 11.5 N.m, and rated speed 3000 rpm, can be used with 17/23/33/41 bit absolute encoder to achieve more efficient performance.

Absolute Encoder *
Motor Cable & Encoder Cable *
With Matched Drive *

SKU: ATO130SY-M11530HS1

Qty:

30-day Returns

Delivery date: 6-12 days

Overview
Related Video

Buy a 3600W servo motor with water cooling online. It uses water as a cooling medium to control the heat generated during operation, equipped with rated voltage 380V, rated current 11A, rated torque 11.5 N.m, and rated speed 3000 rpm, factory price and high performance.

Specifications

Model: ATO130SY-M11530HS1
Rated Power: 3.6kW
Rated Voltage: 380V
Rated Current: 11A
Rated Torque: 11.5 N.m
Maximum Torque: 23 N.m
Rated Speed: 3000 rpm
Maximum Speed: 5000 rpm
Rotor Inertia: 2.3X10^-3 kg.m²
Weight: 9.6kg
Length: 199mm

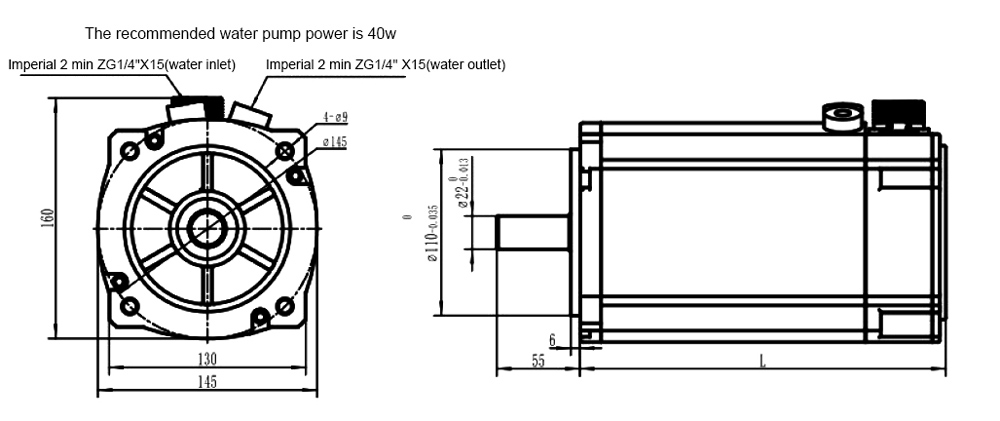

Dimension (Unit: mm)

Water cooled servo motor dimension

Winding Wiring

Winding Lead	U	V	W	PE
(Aviation Plug) Socket Number	2	3	4	1

Encoder Wiring

Signal Definition	E-	E+	SD-	GND	SD+	Vcc	PE
Socket Number	2	3	4	5	6	7	1

Tips: What is a water-cooled servo motor used for?

High-Power Applications: Water-cooled servo motors are particularly suitable for environments where high power and torque are required in a compact size, such as in heavy-duty industrial machinery, robotics, and automotive manufacturing.
Precision Control: They are often used in precision engineering applications, including CNC machines, injection molding, and packaging systems. The precise control of motion and force provided by servo motors is essential in these settings to ensure accuracy and repeatability.
Thermal Management: The water-cooling system effectively dissipates the heat generated during operation, allowing the motor to operate continuously at high power levels without overheating. This feature is crucial in preventing thermal degradation, extending the motor's lifespan, and reducing maintenance needs.
Efficiency and Compactness: By maintaining lower operating temperatures, water-cooled servo motors can deliver higher efficiency and more consistent performance compared to air-cooled counterparts. Their compact design also makes them ideal for applications with space constraints.

This video briefly shows the application of the ATO servo system in a linear slide.

Existing reviews of 3.6 kW Servo Motor, Water Cooled, 380V, 11.5 Nm, 3000 rpm

Dependable for industrial use

We use it on our machining equipment. It delivers stable torque and speed, stays cool during long production runs, runs smoothly with little vibration.

From: Grant | Date: 10/02/2026

Was this review helpful? Yes No (0/0)

Great Value and Efficient Performance

I’ve been using the 3.6 kW water-cooled servo motor for several weeks, and I’m impressed with its performance for the price. The water cooling system helps keep it running at optimal temperatures even under heavy use, which is a big plus for reliability.The 17-bit absolute encoder really enhances its precision, delivering excellent performance. The motor runs quietly and is easy to integrate into my system. For the price, it offers fantastic value, and I highly recommend it for anyone looking for a cost-effective yet powerful servo motor.

From: singing | Date: 01/09/2025

Was this review helpful? Yes No (0/0)
