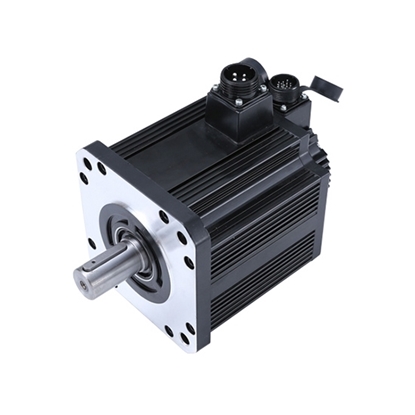

    3.8 kW AC Servo Motor, 15 Nm/30 Nm, 2500 rpm

    3.8 kW AC Servo Motor, 15 Nm/30 Nm, 2500 rpm

    5 out of 5 based on 1 reviews | Write a review
    $1,016.69
    The offered 3.8 kW (5 hp) servo motor is a high torque servo motor, 220V AC input, with rated speed of 2500 rpm, maximum speed up to 5500 rpm, rated torque is 15 Nm, peak torque up to 30 Nm. Several feedback options are available such as incremental encoder, analog encoder and absolute encoder.
    SKU: ATO-SERVO-150S3800
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days
    Related products
    2.7 kW AC Servo Motor, 380V, 17Nm/34Nm, 1500 rpm

    2.7 kW AC Servo Motor, 380V, 17Nm/34Nm, 1500 rpm

    $964.92
    SKU: ATO-SERVO-180S2700
    2.7 kW brushless design servo motor is 380V AC supply voltage, 1500 rpm low speed, 17 Nm rated torque, maximum output torque of 34 Nm, equipped with a 2,500 PPR incremental encoder. It is available in a 180mm square flange size, with a brake option.
    3.6 kW Brushless AC Servo Motor, 18Nm/36Nm, 2000 rpm

    3.6 kW Brushless AC Servo Motor, 18Nm/36Nm, 2000 rpm

    $963.31
    SKU: ATO-SERVO-150S3600
    Brand new 3.6 kW brushless AC integrated servo motor is 150mm square flange size, 2000 rpm, 18 Nm rated torque, peak torque is 36 Nm, equipped with a 2,500 PPR incremental encoder. Low cost servo motor and manufacturer direct sale.
    4.5 kW AC Servo Motor, 380V, 21.5 Nm/53 Nm, 2000 rpm

    4.5 kW AC Servo Motor, 380V, 21.5 Nm/53 Nm, 2000 rpm

    $1,346.85
    SKU: ATO-SERVO-180S4500
    High torque servo motor, brushless design servo motor, 6 hp (4.5 kW) power rating, 380V AC supply voltage input, rated speed of 2000 rpm, 21.5 Nm rated torque and peak torque of 53 Nm, equipped with a 2,500 PPR incremental encoder.
    7.5 kW AC Servo Motor, 380V, 48 Nm/96 Nm, 1500 rpm

    7.5 kW AC Servo Motor, 380V, 48 Nm/96 Nm, 1500 rpm

    $1,565.74
    SKU: ATO-SERVO-180S7500
    Brushless AC servo motor, 10 hp (7.5 kW) power rating, 380V AC supply voltage input, rated speed of 1500 rpm, rated torque of 48 Nm and peak torque of 96 Nm, 2,500 PPR incremental encoder attached. High torque servo motor, cheap price and manufacturer direct sale.
    AC Servo Drive for ATO Servo Motor

    AC Servo Drive for ATO Servo Motor

    $371.23
    SKU: ATO-MG1000
    AC servo motor drive, 220V single phase or three phase input, 380V three phase input, is a great fit for applications requiring position, speed, and torque control methods. All the power rating range from 50w to 8.6kw of our ATO brushless AC servo motors will work perfectly with this type of servo drive.

    The low cost AC servo motor, brushless design, 3.8 kW (5 hp), with a rated speed of 2500 rpm, maximum speed of 5500 rpm, single or three phase 220V input, providing excellent dynamic response.

    5 hp Servo Motor Specification

    Basics Model ATO150CST-M15025
    Matched Drive Model ATOMG-1000
    Weight 15 Kg
    Length 230 mm
    Rated Power 3.8 kW (5 hp)
    Rated Voltage Three phase 220V AC (Optional: 380V AC)
    Rated Current 17 A
    Rated Speed 2500 rpm
    Rated Torque 15 N.m
    Peak Torque 30 N.m
    Speed and Torque Characteristic Curve PDF
    Technical Parameters Voltage Constant 59 V/ 1000r/ min
    Torque Coefficient 0.88 N.m/ A
    Torque Inertia 3.88 x 10-3 Kg.M2
    Line-Line Resistance 0.23 Ω
    Line-Line Inductance 1.08 mH
    Electrical Time-Constant 4.7 ms
    Encode Line Number 2500
    Insulation Class Class F
    Safety Class IP65
    Environment Temperature -20℃ ~ +40℃
    Humidity <90%RH, (no dewing)

    5 hp Servo Motor Dimension (unit=mm)

    servo motor 150 dimension

    LA (without brake): 230mm, LA (with brake): 303mm

    The Encoder Connection Table

    Motor Winding Plug Motor Line U V W PE
    Socket Number 2 3 4 1
    Incremental Encoder Socket
    (15 Pin)    		 Signal Definition 5V 0V B Z- U Z U- A V W V- A- B- W- PE
    Socket Number 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1
    Absolute Encoder Socket
    (7 Pin)    		 Signal Definition E- E+ SD- 0V SD+ 5V PE
    Socket Number 2 3 4 5 6 7 1

    Tips: Differences among regenerative braking, dynamic braking and electromagnetic braking of servo motor

    1. Regenerative braking can work only when servo motor operates normally. The motor cannot brake in some conditions, such as malfunction, emergency stopping, power off, etc. Dynamic brake and electromagnetic brake can work without power supply.
    2. The regenerative braking can operate in system automatically, but dynamic braking and electromagnetic braking cannot operate without outer relay control.
    3. Electromagnetic braking generally turns on after SV OFF, otherwise, it may cause the amplifier overload. Dynamic braking generally turns on after SV OFF or main circuit is shut off, otherwise, it may cause the dynamic braking resistor overheating.

    How to wire ATO servo driver and set Jog mode

    The video shows the basic connection of the ATO servo motor kit and how to initialize the servo driver and how to set the JOG mode.

    Introduce of servo motor analog control

    This video introduces the analog control of ATO servo motor, as well as its position control mode (pulse type), torque control mode, to achieve the purpose of rapid adjustment.
