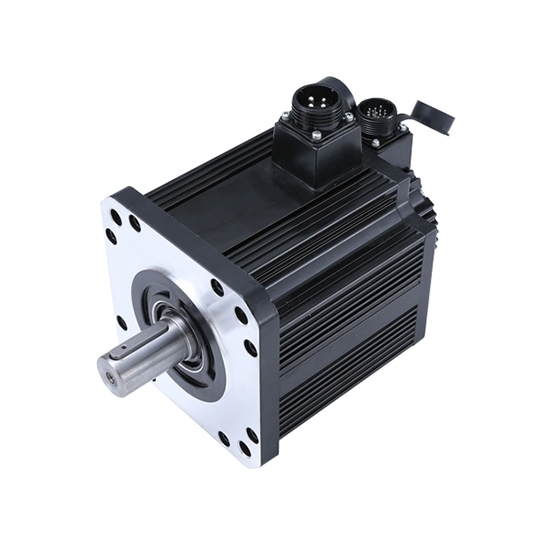

    5 hp (3.7 kW) AC Servo Motor, 35 Nm, 1000 rpm

    35 Nm high torque servo motor, three phase 220V/380V input voltage, 10A current, rated speed of 1000 rpm, peak torque of 70 Nm. 5 hp AC brushless servo motor, available in a 180mm square flange size, IP65 degree of protection.
    SKU: ATO-SERVO-180S3700
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Brushless design servo motor is 3.7 kW power rating, 1000 rpm low speed, 35 Nm rated torque, peak torque to 70 Nm, 380V AC supply voltage input, equipped with 2500 PPR incremental encoder or absolute encoder.

    Basic Specifications

    • Model: ATO180ST-M35010

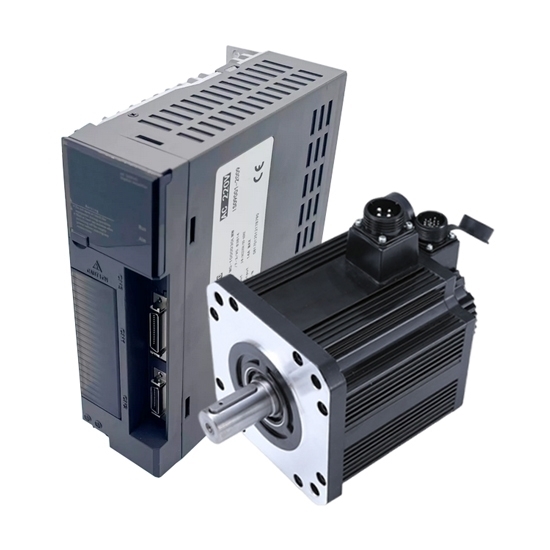

    • Matched Drive Model: ATOMG-1000
    • Rated Power: 3.7 kW (5 hp)
    • Rated Voltage: 3-phase 380V AC (Optional: 220V AC)
    • Rated Current: 10 A
    • Rated Speed: 1000 rpm
    • Rated Torque: 35 Nm
    • Peak Torque: 70 Nm
    • Square Flange Size: 180 mm
    • Weight: 30.5 kg

    Technical Parameters

    • Torque Inertia: 12.25x10-3 Kg.m2
    • Brake Voltage: 24V DC
    • Incremental Encoder Line: 2500 PPR
    • Absolute Encoder: 17 bit, 23 bit
    • Insulation Class: Class F
    • Protection Grade: IP65


    1. Accuracy: ATO AC servo motors realize closed-loop control of position, speed and torque, overcome the problem of stepper motor out-of-step.
    2. Speed: Good high-speed performance, rated speed can reach 1000-3000 rpm.
    3. Adaptability: ATO heavy duty servo motors with strong anti-overload capability, able to withstand a load three times the rated torque, especially suitable for occasions with instant load fluctuations and requiring quick start.
    4. Stable: Our AC brushless servo motors have smooth low-speed operation, no stepping phenomenon similar to stepper motor will occur when running at low speed, suitable for occasions occasions requiring fast response.
    5. Timeliness: The dynamic response time of motor acceleration and deceleration is short, generally within tens of milliseconds.
    6. Safety: ATO AC servo motor protection grade is IP65, which meets the waterproof and dustproof requirements.

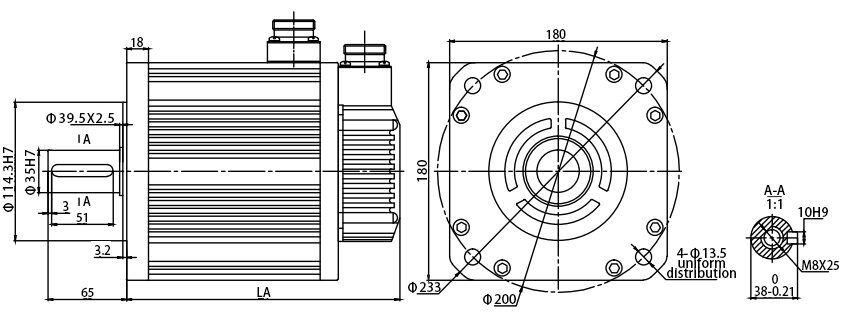

    Motor Dimension (unit=mm)

    5 hp 35Nm Servo motor 180mm dimension

    LA (without brake): 292mm, LA (with brake): 382mm

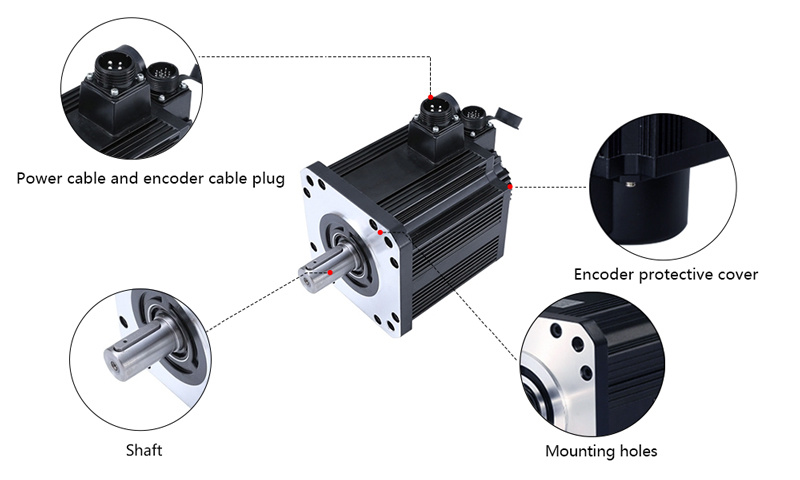

    3700W AC Servo Details

    Winding and Encoder Connection

    1. For servo motor winding

    Motor Winding Plug Winding Lead U V W PE
    Socket Number 2 3 4 1

    2. For incremental encoder

    Incremental Encoder Socket (15 Pin) Signal Definition 5V 0V A+ B+ Z+ A- B- Z- U+ V+ W+ U- V- W- PE
    Socket Number 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1

    3. For absolute encoder

    Absolute Encoder Socket (7 Pin) Signal Definition E- E+ SD- 0V SD+ 5V PE
    Socket Number 2 3 4 5 6 7 1

    Tips: Features of tension servo driver

    1. The tension servo driver has the functions of closed loop tension control and open taper control, and the driver has an open and closed loop algorithm. The user only needs to set parameters but no programming. The operation is easy.
    2. It has the function of RS485 communication, which can communicate directly with touch screen or PLC.
    3. It has the mechanical static friction compensation function, makes the system more stable and control higher. The users can set the compensation value by themselves. The use of open loop taper control can have direct control of the reeling under general condition, without using the PLC DA module and pressure sensor, which reduces the euquipment manufacturing and maintenance costs substantially and also improves the reliability of the equipment.
