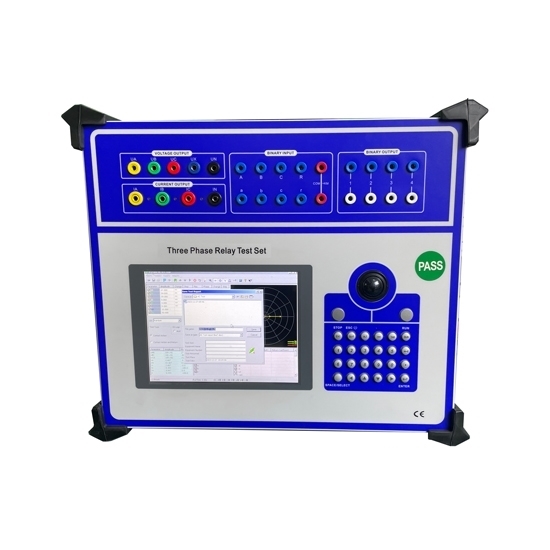

3 Phase Protection Relay Test Set, 110V 220V Adjustable DC Output

5 out of 5 based on 2 reviews | Write a review
$7,430.76
Professional 3 phase protection relay test set for sale, industrial control computer, 110V and 220V dedicated adjustable DC power output, secondary injection relay test kit with 2 USB ports and RS232 porthigh-tech design, compact and lightweight, easy to use, it can complete a variety of large-scale complex testing with high degree of automation and scan various protection settings.
SKU: ATO-RT802
30-day Returns
Free Shipping
Delivery date: 30-40 Days

Cheap price 3 phase protection relay test set with standard 4-phase voltage 3-phase current output, the output waveform has high precision, small distortion and good linearity. It will not generate high and medium frequency interference to the test site, and the current waveform accuracy is excellent, is an ideal relay protection tester.

Specification

AC Current Output Model ATO-RT802
Phase 3 Phase
DC Power Output 110V 220V
AC Current Output (Effective Value) 0~40A
Output Precision 0.2 Degree
3 Phase Parallel Current Output (Effective Value) 0~120A
A Long-Time Phase Current 10A
Maximum Output Power of Phase Current 450VA
Maximum Output Power of 3 Parallel Current 900VA
Maximum Permitted Work time of 3 Parallel Current 10S
Frequency Range (Fundamental) 0~1000Hz
DC Current Output Harmonic Time 0~20
Current Output 0~±10A/Phase, 0~±30A/3 Parallel
AC Voltage Output Output Precision 0.5 Degree
Phase Voltage Output (Effective Value) 0~120V
Output Precision 0.2 Degree
Line Voltage Output (Effective Value) 0~240V
Phase Voltage/Line Phase Output Power 80VA/100VA
Frequency Range (Fundamental) 0~1000Hz
Harmonic Time 0~20
DC Voltage Output Phase Voltage Output Range 0~±160V
Output Precision 0.5 Degree
Line Voltage Output Range 0~±320V
Phase Voltage/Line Phase Output Power 70VA/140VA
10 Path Digital Input and 8 Path Digital Output Time Measuring Range 0.1ms~9999s, Accuracy of Measurement 0.1ms
Input Voltage Default: 220V 50Hz (for other voltages such as 240V 60Hz, please contact us)
Applications 3 Phase Protection Relay Testing
Dimensions 370*570*740mm
Weight 44kg

Features

  1. Flexible combination of voltage and current output with standard 4-phase voltage 3-phase current output, various combinations of outputs can be conveniently performed for various types of protection tests. Each phase voltage can output 120V, current three can output 120A, and the fourth phase voltage Ux is a multi-function voltage term, which can be set to 4 kinds of 3U0 or synchronous voltage, or any voltage value.
  2. High-performance host The output part adopts DSP control, which has fast calculation speed, strong real-time digital signal processing capability, transmission bandwidth and high-resolution D/A conversion. The output waveform has high precision, small distortion and good linearity. Small size, light weight, full function, easy to carry, work at boot, flow test is very convenient.
  3. Powerful software It can complete large-scale complex verification work with high degree of automation. It can easily test and scan various protection settings, perform fault playback, store test data in real time, display vector graphics, and print reports online.
  4. 3 Phase protection relay test set has independent dedicated DC power output device with one 110V and 220V dedicated adjustable DC power output.
  5. Rich contacts There are 8 contact inputs and 4 empty contact outputs. The input contact is an empty contact and 0-250V potential contact compatible mode, which can be intelligently and automatically recognized.
