    6 Phase Relay Test Set, 110V 220V Adjustable DC Output

    $33,438.46

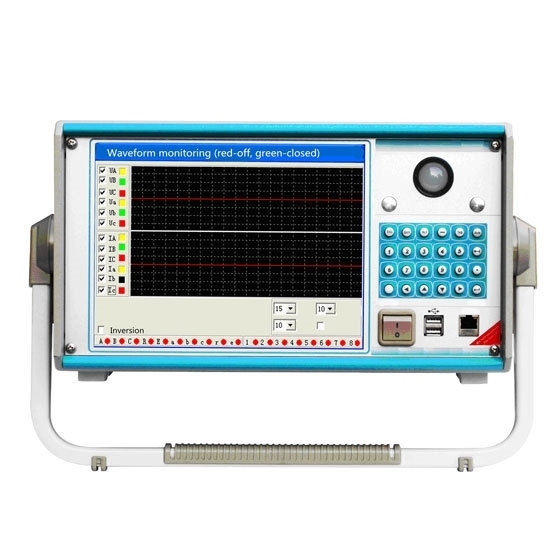

    Super cost effective 6 phase relay test set for sale, 110V and 220V adjustable DC power output, built-in Windows XPE operating system, large display, high stability of software system, 6-phase current for easy three-phase differential protection test, 12-phase output for self-testing, 10 roads are opened, 8 roads are opened, which is convenient for self-injection and quick-cut test, exquisite smoothness and excellent performance.
    SKU: ATO-RT1600
    Free Shipping Worldwide
    Delivery date: 6-30 days

    Low price six phase relay test set, industrial computer control, comes with GPS interface, USB port and network port, can communicate with PC for operation, DC output 110V and 220V, superior performance and easy to carry. Complete test of differential, standby, fast cut, synchronous, harmonic, fault playback, power oscillation, etc.

    Specification:

    AC Current Output Model ATO-RT1600
    DC Power Output 110V 220V
    Virtual value of each phase output when six phase current output 0~30A
    Output Precision 0.1 Grade
    Virtual value of six phase parallel current output 0~180A
    The allowed virtual value when the phase current work long time 10A
    The maximum output power of phase current 450VA
    The maximum output power when six phase parallel current output 1000VA
    The allowed working time when six phase parallel current maximum output 10s
    Frequency Range(fundamental wave) 0~1200Hz
    Harmonic Number 0~24
    DC Current Output Current Output 0~±10A/Phase,0~±10A/6 Phase parallel
    Output Precision 0.2 Grade
    The Maximum Load Volatage Output 20V
    AC Voltage Output The Virtual Value of Phase Voltage Output 0~120V
    Output Precision 0.1 Grade
    The virtual value of line voltage output 0~240V
    The output power of phase voltage/ line voltage 80VA/100VA
    Frequency Range(fundamental wave) 0~1200Hz
    Harmonic Number 0~24
    DC Voltage Output The Output Amplitude of Phase Voltage 0~±160V
    Output Precision 0.2 Grade
    The Output Amplitude of Line Voltage 0~±320V
    The Output Power of Phase Voltage/ Line Voltage 70VA/140VA
    10 Channels Input Free Contact 1~20mA,24V
    Electric Potential Contacts “0”: 0 ~ +6V,“1”: +11 V ~ +250 V
    8 Channels Output DC: 220 V/0.2 A, AC: 220 V/0.5 A
    Time Measurment Range 0.1ms ~ 9999s, Measurement accuracy <0.1ms
    Dimension 420*360*210mm
    Weight 19kg
    Warranty 36 Months

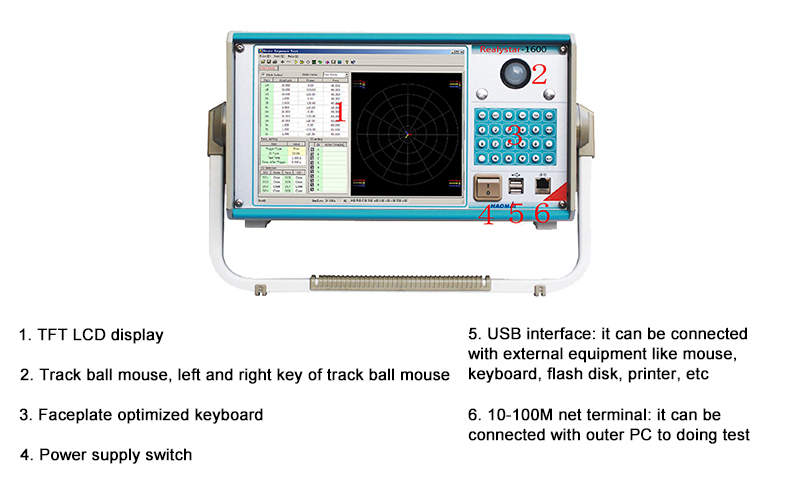

    Features

    1. The standard 12-phase voltage and current are completely simultaneously output, and the amplitude, phase and frequency are completely adjusted independently. The 12-channel closed-loop recovery recording monitors the 12-channel voltage and current output waveforms of the machine for recovery, monitoring and recording. It is intuitive and easy to monitor and observe the distortion of the output waveform.
    2. Dual operation mode In addition to the single operation, the device can also be operated by external desktop or laptop. The two modes are completely consistent, and the true dual operation mode.
    3. High-speed large-capacity industrial computer, 10.4" large screen built-in embedded Windows XPE operating system, the software system is highly stable, the electronic hard disk capacity is large, any switch machine, no system damage. The device comes with 10.4" large screen, display capacity and The font is large and the effect is good.
    4. Six Phase relay test set is powerful enough to complete large-scale complex verification work with high degree of automation. It can easily test and scan various protection settings, perform fault playback, store test data in real time, display vector graphics, and print online. Reports, etc. The 6-phase current is convenient for three-phase differential protection testing, and the 12-phase output can be used for self-injection testing.
    5. Self-injection test and quick-cut function The 10-way open 8 pairs can be tested to test various self-injection and quick-cut devices. The test interface is beautiful in design, and can directly display the main wiring diagram of various systems, the state of each switch contact, and the current and voltage amplitudes. It is very intuitive and convenient to test, record and display the whole process of the self-injection device.
    6. Independent adjustable DC power supply It has a high-power 110V or 220V dedicated DC power supply output.
    7. 6 Phase relay test set The built-in GPS device has its own GPS interface, which can realize synchronous testing of two machines, and can perform fiber longitudinal differential protection test.
    8. Light, small, high-integration single-machine and integrated structure It is a cross-professional joint design product that combines the advanced scientific and technological achievements of many professions. Small size, light weight and high performance and price ratio.

    Tips: 6 Phase relay test set application
    The 6-phase relay test set can be used to verify various relays (such as current, voltage, inverse time, power direction, impedance, differential, low cycle, synchronous, frequency, DC, intermediate, time, etc.) and microcomputer protection. It can simulate single-phase to three-phase transient, permanent, and conversion faults for the entire set of tests. The protection relay test set can also complete a large number of large-scale complex verification work with high degree of automation. It can automatically test and scan various protection settings, perform fault playback, test self-injection, fast-cutting, system oscillation, etc., and store test data in real time. , display vector graphics, print reports online, etc. The 6-phase current is convenient for three-phase differential protection testing, and the 12-phase output can be used for self-injection testing.
