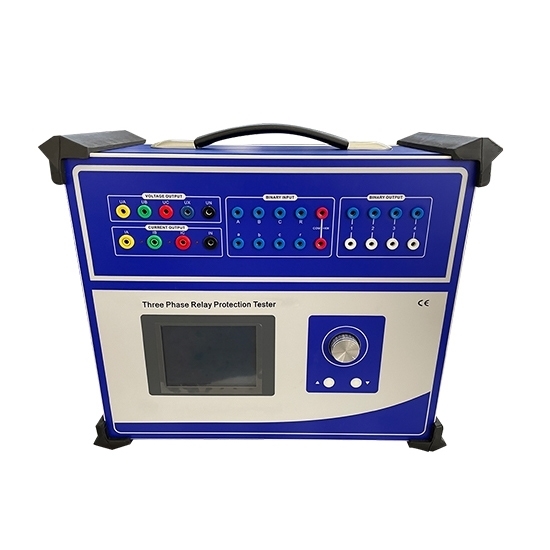

3 Phase Relay Tester, Microcomputer Control

5 out of 5 based on 2 reviews | Write a review
$5,615.38
Low price 3 phase relay tester kit for sale, microcomputer control, with big LCD display, high-resolution, high degree of automation, real-time storage of test data, reliable and comprehensive protection measures, powerful software.
SKU: ATO-RT702A
30-day Returns
Free Shipping
Delivery date: 30-40 Days

Cost-effective protection relay test set, standard 4-phase voltage 3-phase current output, large-screen LCD, complete interface, integrated single-chassis structure, rich contacts, input contact bit empty contact and 0~250V potential contact compatible, intelligent automatic identification.

Specification:

AC Current Output Model ATO-RT702
Phase 3 Phase
Power Supply  220V 50Hz
AC Current Output (Effective Value) 0~40A
Output Precision 0.2 Degree
3 Phase Parallel Current Output (Effective Value) 0~120A
A Long-Time Phase Current 10A
Maximum Output Power of Phase Current 450VA
Maximum Output Power of 3 Parallel Current 900VA
Maximum Permitted Work time of 3 Parallel Current 10S
Frequency Range (Fundamental) 0~1000Hz
DC Current Output Harmonic Time 0~20
Current Output 0~±10A/Phase, 0~±30A/3 Parallel
AC Voltage Output Output Precision 0.5 Degree
Phase Voltage Output (Effective Value) 0~120V
Output Precision 0.2 Degree
Line Voltage Output (Effective Value) 0~240V
Phase Voltage/Line Phase Output Power 80VA/100VA
Frequency Range (Fundamental) 0~1000Hz
Harmonic Time 0~20
DC Voltage Output Phase Voltage Output Range 0~±160V
Output Precision 0.5 Degree
Line Voltage Output Range 0~±320V
Phase Voltage/Line Phase Output Power 70VA/140VA
10 Path Digital Input and 8 Path Digital Output Time Measuring Range 0.1ms~9999s, Accuracy of measurement 0.1ms
Input Voltage Default: 220V 50Hz (for other voltages such as 240V 60Hz, please contact us)
Applications 3 Phase Protection Relay Testing
Dimensions 370*570*740mm
Weight 44kg

Features

1. Meet all requirements for field testing. The microcomputer controll relay tester can simultaneously output standard six-phase current and six-phase voltage, each phase current is 30A, and each phase voltage is 125V. A parallel six-phase current can achieve 180A current. The relay protection tester can not only test traditional relays and protection devices, but also test the protection of modern microcomputer-based protection devices, especially the transformers of the standby power supply and the automatic switching devices. Testing has become more convenient and perfect.
2. A host with embedded high-performance IPC (Industrial Personal Computer) can run independently with its 300-600MHz clock speed, 128M memory, 6-12G hard disk and Windows XP operating system. The TFT true color display measures 8.4 inches and has a resolution of 800 x 600. Therefore, the overall operation of the main unit becomes convenient and durable.
3. Three phase protection relay test set has a GPS synchronization test function with an embedded sync card (matching), which can access the PC through the RS232 interface, so it can be synchronized by switching two testers at different locations.
4. The relay tester is equipped with independent special DC power, with auxiliary voltage source output, its output voltage is 110V (1A), 220V (0.6A), respectively, to meet the DC relay or protection device 5, the tester has software the automatic adjustment function can achieve the calibration accuracy without opening the cabinet adjustment potentiometer, which greatly improves the stability of the precision.

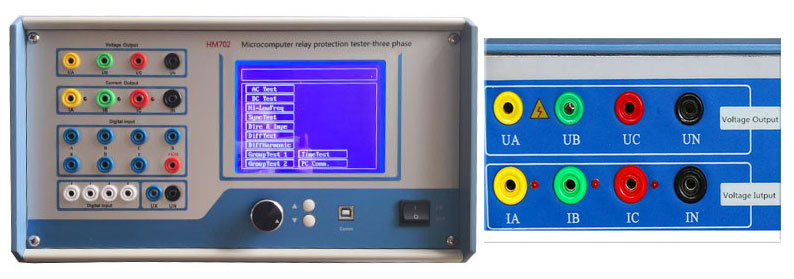

Protection relay test set feature

Details

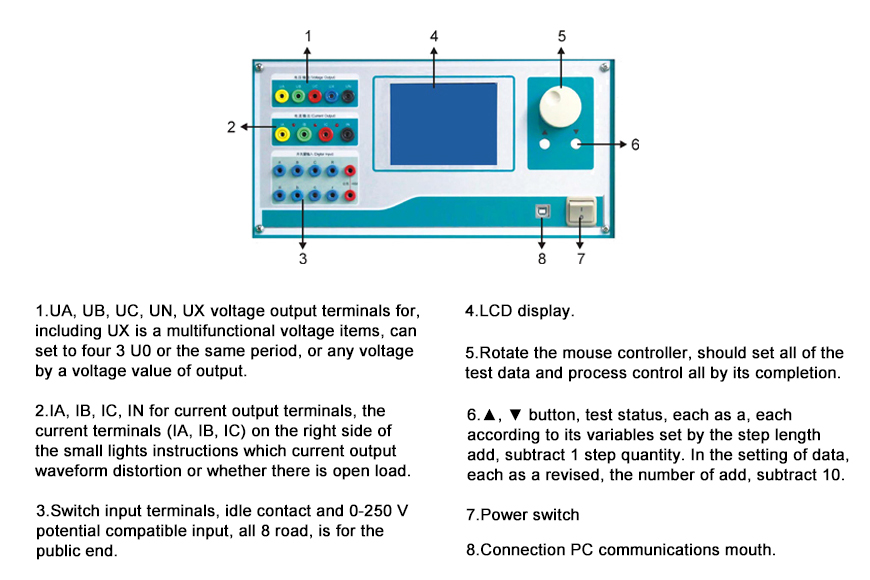

3 Phase Relay Tester Details

Tips: Advantages of 3-phase relay tester

1. Standard 4-phase voltage 3-phase current output, which can be easily combined for various types of protection tests. Each phase voltage can output 120V, current three and can output 120A.
2. Double operation mode, connected to computer operation can carry out various large-scale complex and high-level verification work, which can easily test and scan various protection settings, store test data in real time, display vector graphics, draw fault waveforms, Print reports online, etc.
3. The software is powerful, can complete a variety of high-complexity complex verification work, and has a variety of reliable and comprehensive protection measures and power soft start and certain fault self-diagnosis and blocking function.
4. The switch contacts are rich, the input contact bit empty contact is compatible with 0~250V potential contact, which can be intelligently and automatically recognized. Input and output contacts can be expanded according to user needs.
5. The main control board adopts DSF+FPGA structure 16-bit DAC output, which can generate high-density sine wave of 2000 points per week for the fundamental wave, which improves the quality of the waveform and improves the accuracy of the relay tester.
