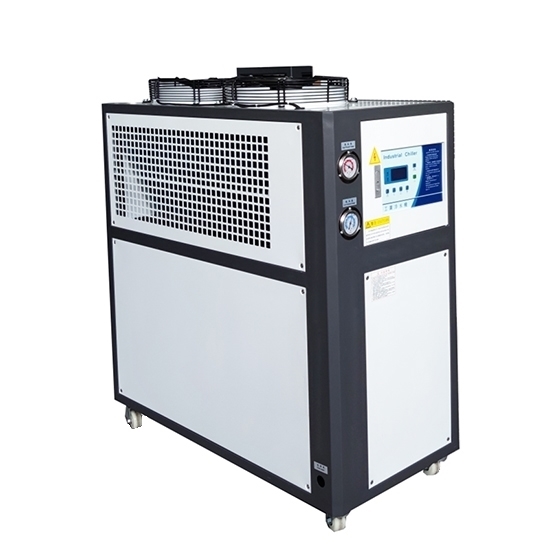

    4 HP Air Cooled Industrial Water Chiller

    $4,863.54
    The provided industrial water chiller machine is 12kW refrigerating capacity, 4 HP total power of compressors, air-cooled typpe, tube-in-shell type of evaporator, R22/R407C refrigerant used as standard for efficient cooling. Optional for three phase four wire 240V/60Hz, 380V/50Hz, 480V/60Hz power supply.
    SKU: ATO-IWC-4HP
    *
    *
    Free Shipping Worldwide
    Delivery date: 10-30 days

    4 HP air cooled industrial chiller for water cooling system, works in 50Hz/60Hz frequency, 3 phase 220V/ 400V/ 415V AC voltage (other voltages can be customized), machine interface configures a full touch screen, which enables automatic control and accurate monitoring.

    Features

    • Adopted high quality compressors and pumps to ensure safe & quiet running, power saving and durable service life.
    • Employed microcomputer with easy operation which can control temperature within 3℃ to 45℃ precisely.
    • Unique design for condenser and heat-dispersion unit result in excellent heat-exchange effect.
    • Equiped with electrical current overload protection, high & low pressure switch, electrical timer delay safety device. It will alarm to display faulty while any malfunction occurs.
    • Built in stainless steel insulated water tank, durable and easy to clean.
    • Complete safely devices including power reverse phase, power short phase and anti-freeze protection.
    • Ultra low temperature type of chiller can reach below -60℃.

    Parameter List

    Model ATO-LC4A
    Cooling Capacity 12000W
    Number of Compressors 1
    Compressor Total Power 4 HP
    Refrigerant R22 / R407C (Optional)
    Evaporator Type Tube-in-shell type
    Condenser Type Finned
    Cooling Type Air-cooled
    Number of Fan 2
    Single Fan power 0.18kW
    Number of Cooling Water Inlet/Outlet 1 group
    Cooling Water Inlet/Outlet Size DN25
    Pump Power 0.5 HP
    Pump Flow 100L/min
    Pump Lifts 22M
    Power Supply 3-phase 4-wire AC 208V/60Hz, 220V/60Hz, 240V/60Hz, 380V/50Hz, 400V/50Hz, 415V/50Hz, 480V/60Hz (Optional)
    Control Voltage 1-phase AC 220V (L+N)
    Total Power 3.7kW
    Wires Specifications 4x2.5mm2
    Dimension L*W*H=1250*630*1240mm
    Weight 155kg

    Note:

    1. The "cooling capacity" is tested based on: Inlet and outlet water temperature of freezing is 12℃/7℃, and the inlet and outlet water temperature of cooling is 30℃/35℃.

    2. Working temperature range: Chilled water temperature range is 5℃-35℃, inlet and outlet water temperature difference is 3℃-8℃, condensation temperature not higher than 35℃.

    3. Conversion of units: 1kW cooling capacity=860kcal/hr, 1RT=3024kcal/hr, 1kcal/hr=3.969BTU/hr, 1HP=0.735kW

    Water Chiller Structure Diagram

    water chiller structure diagram

    Compressor High pressure gauge Condenser Dry filter
    Expansion valve Water supply Evaporator Low pressure gauge
    Water tank Drain Refrigerated water Pump

    Tips: Wide application of industrial water chiller

    1. Water chiller used in the cooling of plastic processing mechanical molding mold which can greatly improve the surface finish of plastic products, reduce the surface striation and internal stress of plastic products, and make the products not shrink or deform. It is convenient for demoulding of plastic products and accelerating the finalization of products, thus greatly improving the production efficiency of plastic molding machine.

    2. Water chiller is applied to the lubrication of the spindle of CNC machine tools, coordinate boring machines, grinding machines, machining centers, modular machine tools and all kinds of industrial precision machine tools and the cooling of the transmission medium of the hydraulic system, which can accurately control the oil temperature, effectively reduce the thermal deformation of the machine tools and improve the machining accuracy.
