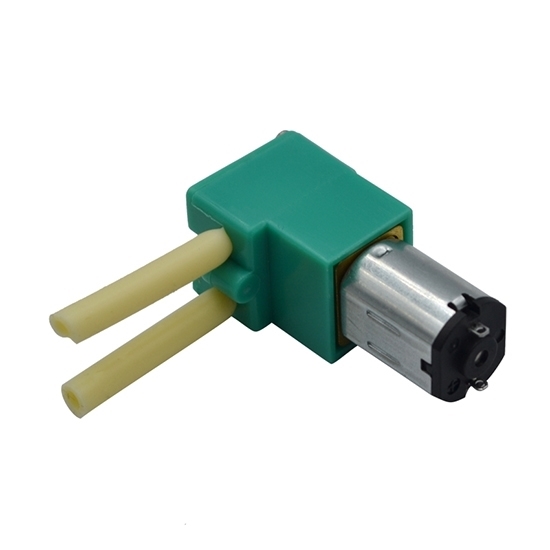

    4mL/min DC 3V/5V/6V Micro Peristaltic Pump

    $46.46
    Low price miniature peristaltic pump works at DC 3V/3.7V/5V/6V power supply. Flow rate 1~4mL/min (1.52GPD), maximum power 0.5W, water pressure ≥10 psi, tubing inner diameter 1.8mm, micro size 15*19*38mm, weight 14g. 2-hose peristaltic dosing pump, suitable for small volume liquid transmission and control.
    SKU: ATO-PDP-M4
    *
    *
    This product has a minimum quantity of 3
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Micro peristaltic dosing pump for sale, rated voltage DC 3V/3.7V/5V/6V, flow rate 1~4mL/min (1.52 gallon per day), 2 transmission hoses, inner diameter 1.8mm. Miniature peristaltic metering pump for medical/laboratory/home use, which can transport medium such as weak acid, weak base, clean water, oil, etc.

    Specification

    Model ATO-MPP20
    Water Flow Rate mL/min 1~4
    GPD (gallon/day) 0.38~1.52
    Rated Voltage DC 3V, 3.7V, 5V, 6V
    Power <0.5W
    Tubing Size Outer Diameter 3.5mm
    Inner Diameter 1.8mm
    Overall Size 15*19*38mm
    Weight 14g
    Rated Life >300h

    4mL/min Micro Peristaltic Pump Dimensions Drawing (Unit: mm)

    Dimensions of 4mL/min DC 3V/5V/6V Micro Peristaltic Pump

    4mL/min Micro Peristaltic Pump Structure Diagram

    Structure of 4mL/min DC 3V/5V/6V Micro Peristaltic Pump

    Micro Peristaltic Pump Applications

    Micro Peristaltic Pump Applications

    Tips: Daily maintenance for micro peristaltic pump.

    In the daily use of micro peristaltic pump, it is recommended to replace the hose after long-term use. This will not easily cause the silicone tube to rupture, otherwise the liquid will easily seep from tubing and flow into the roller of pump head. If corrosive liquid flows into the gap of roller, pump head should be disassembled and cleaned in time to prevent it from solidifying in the gap of roller after weathering, causing the pump head to block.

    Micro peristaltic pump tubing should be replaced in time according to the specific frequency of use, or the position should be moved frequently. If the liquid is highly corrosive, please choose a hose of the corresponding material to avoid damage to the micro peristaltic pump.
