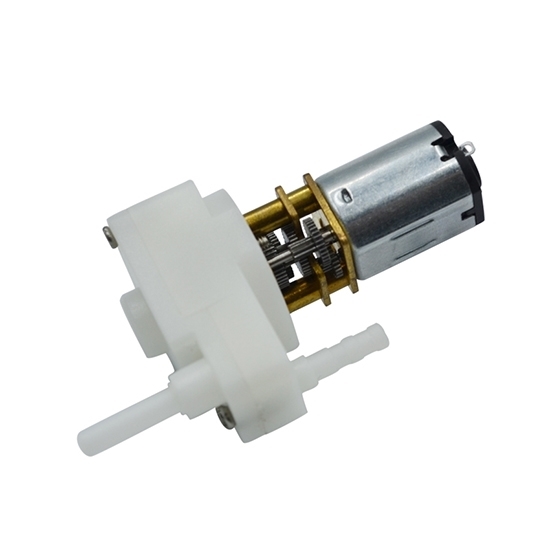

    8mL/min DC 3.7V/5V/6V Micro Peristaltic Pump

    $49.54
    Buy professional micro peristaltic pump at good price. Operating voltage DC 3V/3.7V/5V/6V, flow rate 2~8mL/min (3GPD), maximum power 0.5W, water pressure 10 psi, hose diameter 1.8mm, size 18*26*40mm, weight 15g. Peristaltic dosing pump with 2 tubing, transmitting and metering small volume liquid.
    SKU: ATO-PDP-M8
    *
    This product has a minimum quantity of 2
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Micro peristaltic metering pump has maximum flow rate of 3GPD (2~8mL/min), powered by 3V/3.7V/5V/6V DC motor, tubing diameter 1.8mm. Miniature peristaltic metering pump used in liquid transmission including weak acid, weak base, clean water, oil, etc.

    Specification

    Model ATO-MPP30
    Water Flow Rate mL/min 2~8
    GPD (gallon/day) 0.76~3.04
    Rated Voltage DC 3V, 3.7V, 5V, 6V
    Power <0.5W
    Tubing Size Outer Diameter 3.5mm
    Inner Diameter 1.8mm
    Overall Size 18*26*40mm
    Weight 15g
    Rated Life >300h

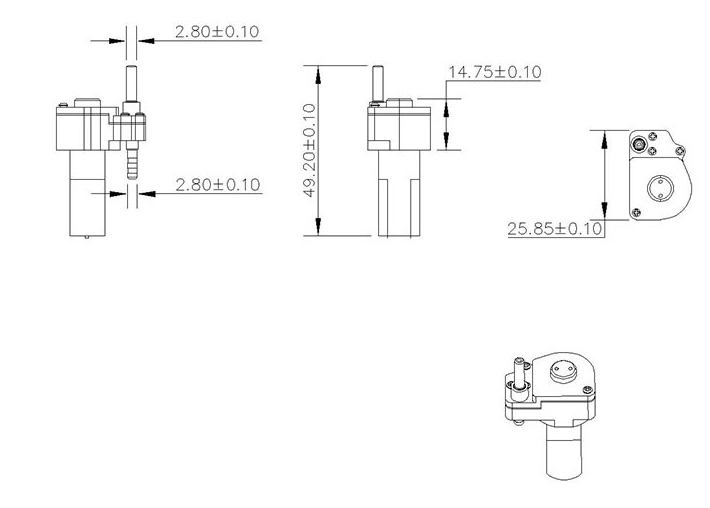

    8mL/min Micro Peristaltic Pump Dimensions Drawing (Unit: mm)

    Dimensions of 8mL/min DC 3.7V/5V/6V Micro Peristaltic Pump

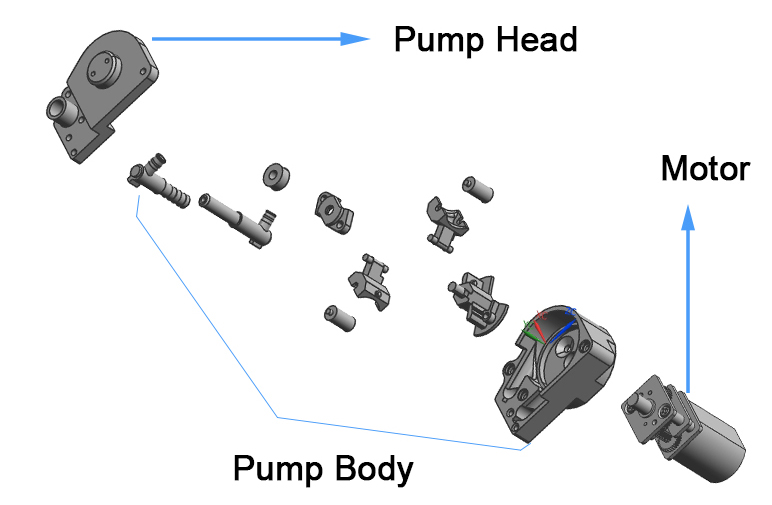

    8mL/min Micro Peristaltic Pump Structure Diagram

    Structure of 8mL/min DC 3.7V/5V/6V Micro Peristaltic Pump

    Micro Peristaltic Pump Applications

    Micro Peristaltic Pump Applications

    Tips: Precautions for the using micro peristaltic pump.

    1. After the pump hose has been used for about 220 hours, the hose can be turned over (that is, 90° rotation). Because one side of the hose is squeezed for a long time, it is easy to cause one side to be damaged, and turning over can increase the service life.
    2. Storage period of the pump tubing shall not exceed one year (long-term non-use will cause aging).
    3. Lubricate the rollers of micro peristaltic pump every 6 months (special lubricating oil is required).
    4. After using the micro peristaltic pump for a long time, if abnormal noise occurs, it can be disassembled for inspection. Check if this is caused by bearing wear or damage, if not, please contact the manufacturer.
