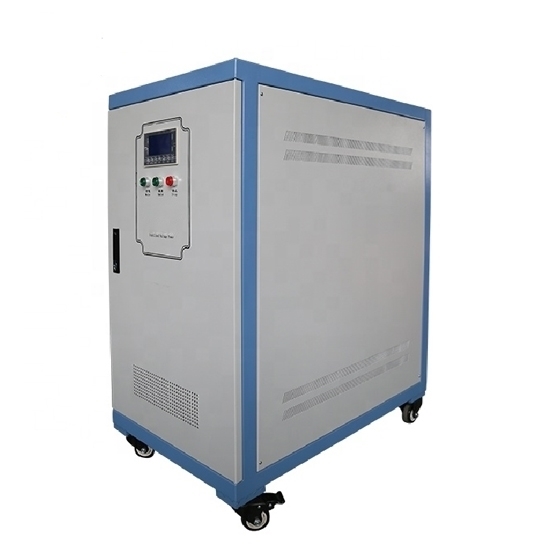

40 kVA 3 phase Industrial AC Automatic Voltage Stabilizer

40 kVA Voltage Stabilizer Features

• Default three phase 4-line 175V-265V (phase voltage) 304V-456V AC (line voltage) of wide input voltage range, 380V output
• High efficiency, large capacity, no waveform distortion, stable voltage regulation
• The high accuracy of the output voltage (output voltage can be customized)
• Perfect protection function: Over/ low voltage protection, over heat/ load protection, short circuit protection

40 kVA 3 phase Industrial AC Automatic Voltage Stabilizer is widely used in post and telecommunications, department stores, elevators, hospitals, schools, printing, securties and other occasions where all needs normal voltage to ensure, such as workshop mines medium enterprises, some of the important equipment and computer power and support.

40 kVA Voltage Stabilizer Specifications

Model Number		ATO-SBW/ZBW-40K
Capacity		40 kVA (The power capacity of voltage stabilizer needs to be 1.5~2 times greater than the load power)
		User Manual for 30kVA-3000kVA 3-phase voltage stabilizer
Phase		3 Phase 4-line
Input Voltage Range		±15% tolerance for all standard output voltages above 380V. ±20% tolerance for required 380V output and all standard voltages below.
Output Voltage		3 phase 380V (Optional: 110V/ 120V/ 208V/ 220V/ 230V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
Output Accuracy		±2~4%/ ±1% (Optional) * In case of output accuracy of +/- 2-4%, the voltage stabilizer will be servomotor based, and in case of output accuracy of +/- 1%, the voltage stabilizer would be SCR based.
Frequency		50Hz/60Hz
Current Type		AC
Efficiency		≥95%
Response Time		≤1.5S
Ambient Temperature		-15°C~+40°C
Cooling Method		Naturally air cooled
Insulation Resistance		≥5MΩ
Electricalintensity		Without breakdown and flashover phenomena at power frequency sine voltage 2000V for 1 min
Overload Capacity		Overload current (%)		Duration (min)
		20		≤60
		40		≤15
		60		≤5
Waveform Distortion		Non-lack fidelity waveform
Protection		Over-voltage, over-current, feed phases
Protection Grade		IP 24
Warranty		24 months
Certificate		ISO9001:2008, CE
Weight		260 Kg
Package Size		700x520x1150 mm

3 Phase Voltage Stabilizer Schematic Diagram

Industrial Voltage Stabilizer Inner Detail

Tips:

In fact, the three-phase voltage stabilizer connects the three voltage stabilizing units with "Y" connection method, and then uses the control circuit board and the motor drive system to control the voltage regulating transformer, so as to achieve the function of stabilizing the output voltage.

If the sliding arms of the three voltage regulating transformers are driven by one motor, the voltage regulating mode is the unified voltage stabilizer. If the sliding arms of the three voltage regulating transformers are independently adjusted by three motors, the three-phase split regulation voltage stabilizer is the same as the single-phase voltage stabilizer.

In the process of voltage regulation, the regulator is realized by moving the carbon brush to change the number of contact coil turns. Then, during the adjustment, it is required to keep contact with the coil at all times, otherwise, the power will be cut off.
