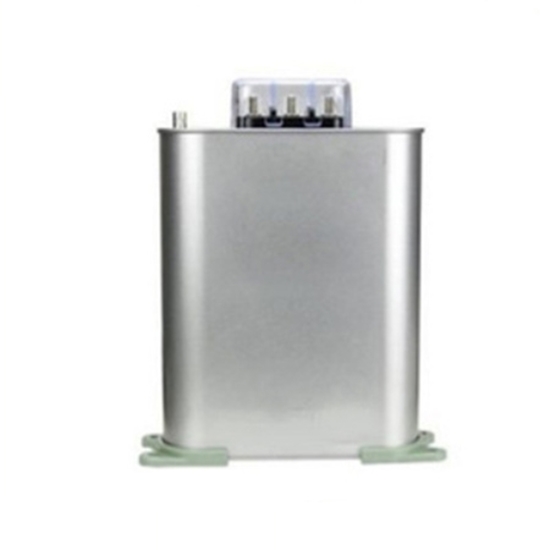

    40 kvar 630 μF Shunt Power Capacitor, 3 phase, 450V, Self-healing

    450V AC self-healing type shunt power capacitor with 40 kvar (630 μF) rated capacity, made of the advanced metalized film, is used in 50Hz or 60Hz power system. The device is suitable for low voltage power network to improve power factor and the voltage quality, reduce reactive loss.
    SKU: ATO-CAP-45040
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    3 phase low voltage 40 kvar 450V power capacitor in parallel connection, it has excellent self-healing performance, improve power efficiency and improve the quality of grid.

    40 kvar Power Capacitor Specifications

    Model 0.45-40-3
    Shape Rectangular
    Weight 4 Kg
    Height 260 mm
    Rated Voltage 450V AC
    Rated Capacity 40 kvar (630 μF)
    Rated Current 51.3 A
    Rated Frequency 50Hz or 60Hz
    Capacity Tolerance -5%~+10%
    Outgoing Terminal M8
    Connection 3 line-△ type / 4 line-Y type
    Anti Voltage
    1. Between two pole 2.15 times rated voltage is 10s;
    2. Between two pole 3 kv please choose highest value 10s;
    3. There is noperpetuity puncture and flash over.
    Max Permit Over Voltage
    1. 1.1 times rated voltage, the high permit over voltage is not more than 8 hours within 24 hours.
    2. 1.15 times rated voltage, it is not more than 30 minutes within 24 hours.
    3. 1.2 times rated voltage, it is not more than 5 minutes.
    4. 1.3 times ratedvoltage, it would not more than 1 minute.
    Max Permit Over Current It is permit that the over current is not more than 1.3 times rated current.
    Safety Self healing, Sheet metal enclosure
    Certification GB/T 12747-2004, IEC60831: 212002

    Note: Need more models information of the 3 phase shunt capacitors, please click here.

    40 kvar Shunt Capacitor Dimension (mm)

    capacitor dimensionTips: How to judge a capacitor by a multimeter?

    It is the most commonly used method to check the quality of a capacitor with a multimeter method. Set the multimeter switch at R x 10 k Ω or R x 1 k Ω resistance band, connect the black pole to positive terminal of capacity while connect the red pole to capacitors positive terminal of capacity, red pens and connect the negative polarity end of the capacitor (non-polar capacitors can be arbitrarily connected). Observe the swinging of meter pointer, you can basically judge a capacitor.

    1. Pointer quickly swings to 0 Ω first, and then slowly returns to hundreds of k Ω position after stop, explain the capacitor is in good condition.
    2. If the pointer does not move, it indicates that the capacitor has been damaged or there is an open circuit.
    3. If the pointer swings to 0 Ω and does not return, it shows that the capacitor has been broken down.
    4. Pointer swings to 0 Ω, and then slowly returns to a smaller resistance after stopping. It indicates that the leakage current of the capacitor is bigger, which can determine to whether to replace the capacitor according to the specific situations.
