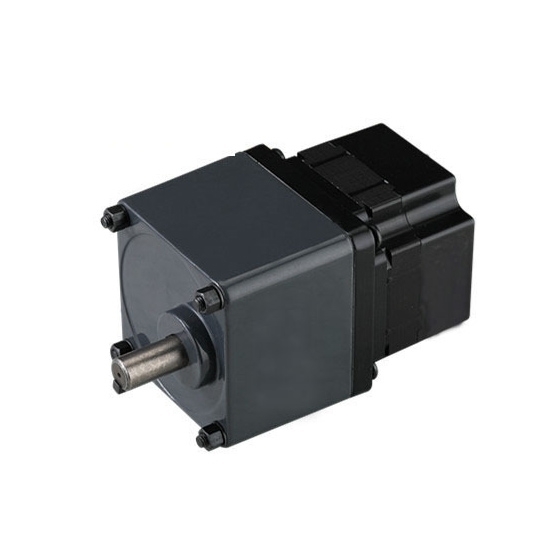

    450 W DC Gear Motor, 3000 rpm, 12V/24V/48V

    $286.35
    Hot sell DC gear motor which has 450W, 3000 rpm, offers 46.88A current at 12 volt, 23.44A at 48 volt, 11.71A at 48 volt. Rated torque is 1.43 Nm, peak torque up to 4.3 Nm, its compact structure and light weight for you easy to install.
    SKU: ATOD5BLD450
    *
    *
    Free shipping
    Delivery date: 6-12 days
    This is a high torque DC gear motor providing 4.3 Nm peak torque, gear ratio is avialable with 3:1 to 200:1. 450W 3000 rpm DC motor with 90 mm size gearbox, designed for 12V, 24V, 48V DC voltage.

    450W DC gear motor Specifications

    Model ATOD5BLD450-12 ATOD5BLD450-24 ATOD5BLD450-48
    Power 450W 450W 450W
    Voltage 12V 24V 48V
    Rated Speed 3000 rpm 3000 rpm 3000 rpm
    No-load Speed 3300 rpm 3300 rpm 3300 rpm
    Rated Current 46.88A 23.44A 11.71A
    Rated Torque 1.43 N.m 1.43 N.m 1.43 N.m
    Peak Torque 4.3 N.m 4.3 N.m 4.3 N.m
    No-load Current < 10.2A < 7.13A < 5.61A
    Compatible Driver Model BLD-4850 BLD-750 BLD-750
    Weight 3.5 Kg
    Gear Head Motor 2GN□K Enter the gear ratio into the box (□) within the model name
    Gear Ratio 3, 5, 7.5, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 120, 150, 180, 200

    Note:
    *Motor length, power, voltage and speed can be customized according to your requirements under the allowed circumstance of adoptable dimension.

    The allowable torque with a gear head
    Allowance Torque Unit: Upside (N.m)/Belowside (kgf.cm)

    Type Gear Ratio 3 5 7.5 10 12.5 15 18 20 25 30 36 40 50 60 75 90 100 120 150 180 200
    ATOD5BLD450 Speed (r/min) 1000 600 400 300 240 200 167 150 120 100 83.33 75 60 50 40 33 30 25 20 17 15
    2GN□K 3.48 5.80 8.70 11.6 13.07 15.69 18.82 20 20 20 20 20 20 20 20 20 20 20 20 20 20
    34.81 58.02 87.02 116 130.7 156.9 188.2 200 200 200 200 200 200 200 200 200 200 200 200 200 200

    Note:
    *The values colored "Red" indicate that the gear head and the DC motor are running in the same direction, and the other values are in the opposite direction.
    *When it is desired to reduce the speed further than the gear ratio in the table above, an intermediate speed reducer with a gear ratio of 10 can be installed between the motor and the gear head.

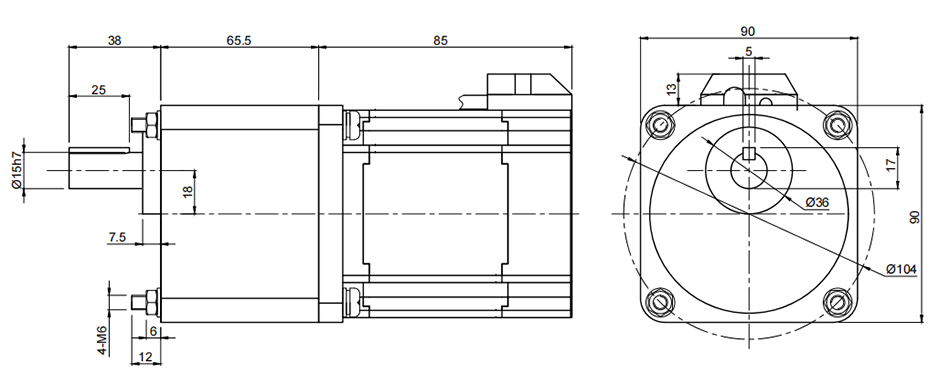

    Dimension

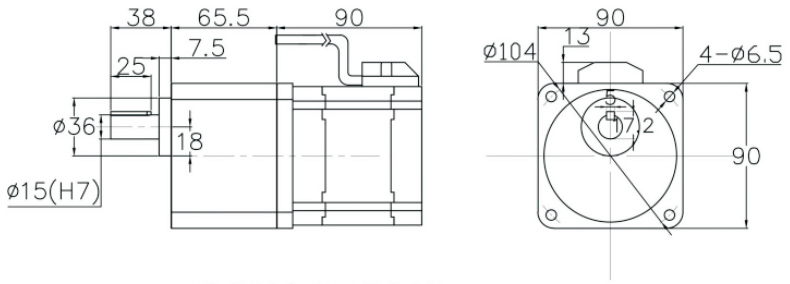

    450 w gear motor dimension
    *Mounting screws are included with gearbox

    Tips: Advantages of ATO Gear Motors
    Gear motor is used to reduce the speed, its application is closely related with its advantages. What are the advantages of ATO gear motors?

    1. Less space, more reliable and durable and higher overload capacity.
    2. Low energy consumption and superior performance, high working efficiency.
    3. Small vibration and low noise, high energy saving, high quality materials and long service life.
    4. Precision machining ensures its positioning accuracy, product quality is guaranteed.

    1000W brushless DC motor speed - torque diagram
    1kw BLDC motor torque speed diagram

    • Instantaneous maximum torque line
      The maximum torque momentarily impacts the load when the motor is started.
      Beyond this torque, the over-current protection of the driver will cause the motor to stop.
    • Short time operation area
      The motor can run at a short time within this torque range at different speeds.
      If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
    • Rated operating torque line
      The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
    • Continuous operating area
      When the motor rotates at different speeds, it runs continuously in this corresponding zone.
