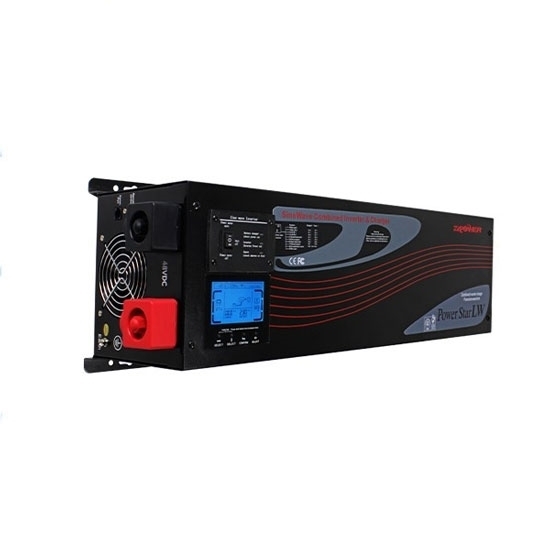

5000 Watt 24V/48V inverter battery charger outputs reliable pure sine wave power from DC source, low frequency type with transformer, UPS function. The combined inverter / charger is ideal for powering refrigerators, air conditioners, TVs, fans, computers, audio/video components or other equipment, appliances and electronics. It is widely applied in wind generator, solar power system, house, vehicle, RV, ship, navigation, mobile electricity work and telecommunications device, launch station and any places where the city power is needed.
- 5000 Watt continuous output power
- Peak power is 3 times of rating power
- Pure sine wave output, available for sensitive loads such as air conditioner, motor door, etc.
- Fast and powerful inverter charger, 3-step progressive charging, 7 battery type selector
- High power factor
- Automatically transfer between battery and line mode
- Microprocessor control guarantees the high reliability
- Optional remote control function
- Multi safety protections against over load, over temperature, over charging, and low battery
- LCD digital display shows voltage, load and battery info in real time
- Apply for split phase system, 2 live lines 1 neutral line, and voltage is 120V/240V
5000W Inverter/Charger Specification
||Pure Sine Wave
||110V/120V AC or 220V/230V/240V AC
||95-126V AC or 194-253V AC±4%
|Low Line Disconnect
||85V AC±4% or 184V AC±4%
|Low Line Re-connect
||95V AC±4% or 194V AC±4%
|High Line Disconnect
||136V AC±4% or 263V AC±4%
|High Line Re-connect
||126V AC±4% or 253V AC±4%
||50Hz: 41-54Hz or 60Hz: 51-64Hz (Auto detection)
||Phase & Waveform
||Single Phase & Pure Sine Wave (bypass mode sync to input)
||110V/120V AC or 220V/230V/240V AC
120V/240V AC split phase output Also Available: L1+L2=240V, L1+N=120V, L2+N=120V
||±10%rms (bypass mode sync to input)
||50Hz±0.3Hz or 60Hz±0.3Hz (bypass mode sync to input)
||3 times of rating power (15000W)
|Short Circuit Protection
||Yes, shutdown after 10ms
||Wiring terminal block
|Minimum Start Voltage
|Low Battery Alarm
|Low DC Input Shut-down
|High DC Voltage Alarm & Fault
|High DC Input Recovery
|Max Charger Current
||20A/35A/50A/75A/90A (According to the inverter model)
||Load ≤ 25W (Enabled on "P/S auto" setting of Remote control)
||Sounding when the heat sink's temperature is over 105℃ and shutdown after 30 seconds.
|Over Load Protection
||110%＜load＜150%, beeps 0.5s every 1s, and Fault after 60s.
Load＞150%, beeps 0.5s every 1s, and Fault after 20s.
||Low battery, over charging, over temperature, over load
||Wired remote control (5m) for power on/off
||0-40℃, 0-90%℃ RH (non-condensing)
* It can be selected in the drop-down list.
Inverter/Charger Working Principle & Applications
Inverter Split-Phase Output Terminal Description
Tips: Solar inverter functions
Solar inverters are divided into stand-alone inverters and grid-tie inverters. Stand-alone solar power generation inverters are mainly used in remote areas where there is no household electricity and individual household users. Grid-connected solar power generation inverters are mainly used in desert power stations and urban roof power generation systems.
In fact, the overall function of solar inverters is to get the corresponding sinusoidal AC through full-bridge circuit, and then use SPWM processors through modulation, filtering and boost and other intermediate systems, and finally supply the terminal customers who need to use electricity. In fact, solar energy is the system that provides energy. Inverter is a device to change the current. The energy in solar energy is stored in batteries through inverters. This is the role of solar inverters, which makes solar inverters the core components of photovoltaic wind power generation system. More importantly, the cost of power generation is low, so the solar energy inverters have to run at high speed.
