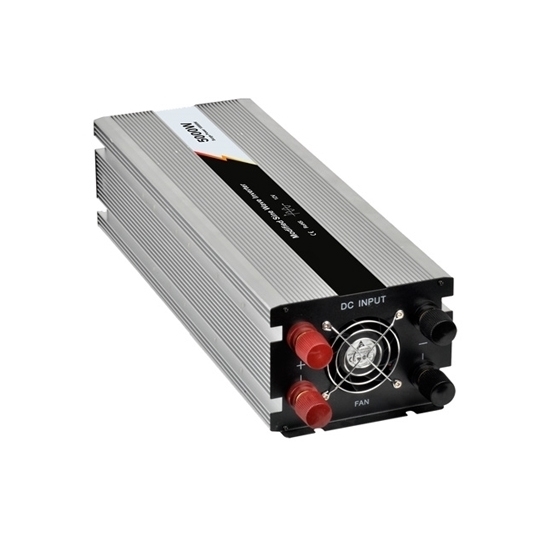

5000 Watt Car Power Inverter, 48V DC to 120V AC

5 out of 5 based on 2 reviews | Write a review

$751.85

Affordable price 5000W modified sine wave power inverter with 10000 Watt surge power, optional with DC input 12V/24V/48V and AC output 110V / 120V / 230V / 220V / 240V. With full protections against under/over voltage, over load, overheating and more, this car inverter is equipped with universal household socket and USB port to meet your multi-needs, best power source on the road.

Input DC Voltage (V) *
Output AC Voltage (V) *
Output Frequency *
Input Battery Type *

SKU: ATO-PI-M5000W

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Best price 5000W modified sine wave power inverter for sale, converting 12V / 24V / 48V DC power to 110V AC, 120VAC, 220VAC, 230VAC or 240VAC, high efficiency and durability, ideal portable power converter on the go.

Features

5000 Watt continuous and 10000 Watt peak power for relaible replenishment
Two AC household power outlets - converting DC vehicle's power to AC power for electronic devices
USB charging port – powering your USB compatible devices such as cell phones, laptops, tablets (iPad), players, etc.
Multi security protections - high voltage, low voltage, overload, overheating, short circuit (reverse polarity connect)
Durable construction, easy installation and high efficiency - ideal for use on road trips, vacations, work trips, camping and other outdoor activities
Built-in temperature-controlled cooling fan with low noise

Note: Refrigerators or devices similar to refrigerator loads need to choose an inverter with a power of more than 10 times.

Specification

Model	ATO-M5000W
Rated power	5000W
Peak power	10000W
Phase	1- Phase (L, N, G), Do Not provide split phase configuration (L1, L2 + N, G)
Input voltage	DC 12V	DC 24V	DC 48V
Output voltage	100VAC/110VAC/120VAC or 220VAC/230VAC/240VAC ±5%
Unload current less than	0.9A	0.5A	0.35A
Output frequency	50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform	Modified Sine Wave
USB port	5V 2A
Max. efficiency	88%	90%	92%
Input voltage range	9.5-15.5V	19-31V	38-62V
Low voltage alarm	10.5±0.5V	21±0.5V	42±0.5V
Low voltage protection	9.5±0.5V	19±0.5V	38±0.5V
Over voltage protection	15.5±0.5V	31±0.5V	62±0.5V
Low voltage recover	12±0.5V	23±0.5V	46±0.5V
Over voltage recover	14±0.5V	28±0.5V	56±0.5V
Protection function	Low voltage - Alarm at first; voltage continuously reducing, LED Red light on & shut down.
	Over voltage - LED Red light on, shut down
	Over load - LED Red light on, shut down
	Over temperature - Alarm at first; temperature continuously rising, LED Red light on & shut down
	Short circuit - LED Red light on
	Input reverse polarity - Fuse burn-out
Working temperature	-10℃ ~ +50℃
Storage temperature	-30℃ ~ +70℃
Dimension	589x180x130mm
Net./gross weight	9000g/10300g
Warranty	1 year
Cooling method	Intelligent cooling fan

Wiring Diagram

Note: The connection of 48V power inverter with batteries is similar to the wiring of 24V inverter, and the batteries is connected in series.

The most common reason why your inverter is not working

In this video, we show you one of the most common reasons why your inverter is not working.
