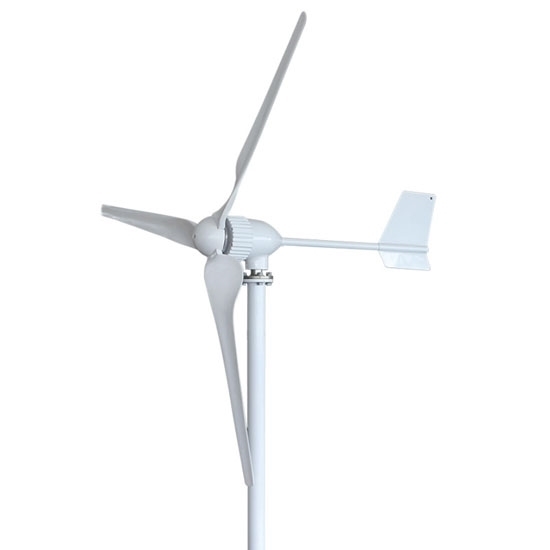

5000W Horizontal Axis Wind Turbine, 220V/380V

Write a review

$8,436.65

Buy portable 5kW horizontal axis wind turbine for home, delivering 5kW rated power and 5300W maximum output. Portable wind generator supports 220V/380V voltage options for house, residential, offshore and onshore applications. Operating from 2.5m/s starting wind speed, domestic windmill generator features automatic windward adjustment, reinforced fiberglass blades, and rare earth permanent magnet generator. Ensures stable performance across -40°C to 80°C temperature range.

Rated Voltage *

SKU: ATO-WT-5000G

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Proposition 65 Warning

Small 5000 Watt horizontal axis wind generator with flange mounting for easy installation and low maintenance. Rated wind speed at 10m/s with safety up to 45m/s. Proven components ensure reliable power and cheap business electricity.

Specification

Model	ATO-NE-5000G
Rated Power	5kW
Maximum Power	5300W
Rated Voltage	220V/380V (optional)
Starting Wind Speed	2.5m/s
Rated Wind Speed	10m/s
Safe Wind Speed	≤45m/s
Blade Length	2.6m
Wind Turbine Diameter	5.4m
Number of Blades	3
Installation Method	Flange Installation
Blade Material	Reinforced Fiberglass Reinforced Plastic
Generator Type	Rare Earth Permanent Magnet Generator
Magnetic Steel Material	NdFeB
Braking Method	Electromagnetism
Wind Adjustment	Automatically adjusts the windward angle
Working Temperature	-40~80°C

Features

High Efficiency Power Generation: 5000W horizontal axis wind turbine generator effectively converts wind into electricity for home use, featuring high wind energy utilization.
Durable & Storm-Resistant Design: Reinforced fiberglass blades provide excellent wind resistance and increased durability for residential horizontal axis wind turbine.
Intelligent Safety & Operation: Automatic electromagnetic braking and downwind regulation systems ensure 5kW wind generator operates stably and safely.

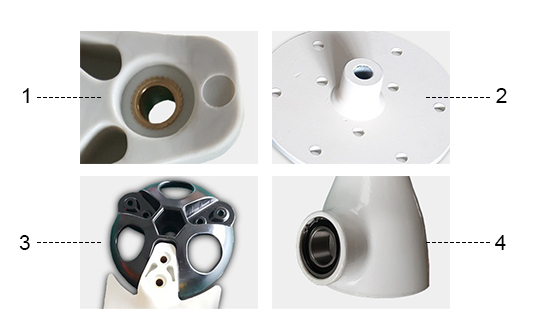

Details

Built-in Copper Inserts: Designed for the 5000 Watt horizontal axis wind turbine, the blades incorporate copper inserts to prevent damage to the nylon fibers during bolt tightening, avoiding deformation or breakage.
Hub Surface Oxidation: The hub surface of wind turbine generator is spray-coated with an oxidized plastic coating for enhanced corrosion resistance, ensuring both aesthetics and long-term durability.
Close-Fit Design of Hub and Blade Grooves: The hub grooves and blades feature a close-fit design, ensuring a more precise fit between the blades and hub.
Thicker Double-Groove Ball Bearings: ATO wind turbine utilizes thicker double-groove ball bearings to minimize vibration and ensure smoother operation.

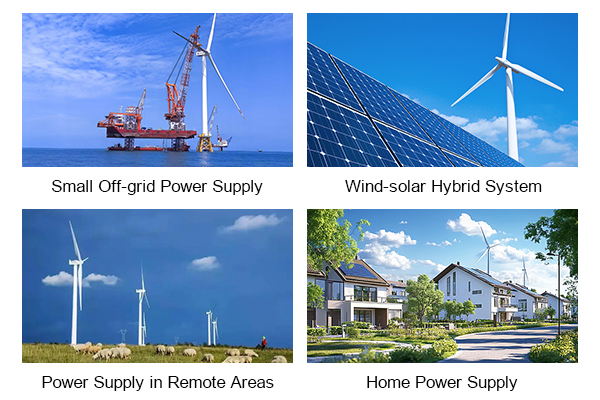

Application

Application of 5000w horizontal axis wind turbine

Tips: Can 5000 Watt wind turbine be connected to the grid?

Yes, when paired with a compatible grid-tie inverter, 5kW horizontal axis wind generator can be configured for on-grid applications to offset electricity costs. Any excess power generated can often be fed back into the grid, depending on your local regulations and net metering policies, potentially earning you credits or income. Setup provides an excellent return on investment by turning micro wind turbine into a long-term energy asset for your property.

*WARNING: This product can expose you to chemicals, including lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
