Description
Hot sale!! Factory direct sale portable and super silent diesel generator is 9kW at 50Hz, 10kW at 60Hz, powered by 22HP 4 stroke air-cooled 2-cylinder engine, 21L large fuel tank ensures hours of continuous running, wheels for easy move, AC voltage can be customized according to your needs.
Specifications
Model |
ATOBDG11000SE |
Alternator Type |
Brushless, Self Exciting, 2 Pole, Single Phase (Three Phase generator is available) |
AC Frequency |
50Hz |
60Hz |
AC Voltage |
- Single phase version: 110V, 120V, 220V, 230V, 240/110V, 120/240V, 208/120V
- Three phase version: 380/220V, 400/230V, 240/120V, 220/110V, 208/127V
*Note: For single phase version, voltage form like "240/110V" is a dual supply voltage, means that the generator output is 1-phase 240V or 1-phase 110V.
|
Rated AC Output |
9 kW |
10 kW |
Max. AC Output |
10 kW |
11 kW |
DC Output Voltage |
12V |
DC Output Current |
8.3A |
Insulation |
F |
Power Factor |
0.8 |
Control Panel |
Analog Panel (Option: Digital LCD Panel, ATS) |
Engine Model |
2V86FE |
Engine Type |
V-twin, Air-cooled, 2-Cylinder, 4-Stroke |
Bore x Stroke |
86x72 mm |
Displacement |
840 CC |
Engine Speed |
3000 rpm |
3600 rpm |
Starting System |
Electric Start |
Starting Motor Capacity |
12V 1.4KW |
Starting Battery |
12V 45AH |
Max. Power Output |
22 HP |
Fuel Tank Capacity |
21L |
Time of Running on the Full Tank |
7.5 hours |
Cont. Operating |
7.5HRS |
6.3HPS |
Operating Noise Level |
75 dB |
Certification |
CE, EPA, ISO9001-2000 |
Warranty |
12 months |
N.W/G.W |
245/265 kg |
Dimension |
1040x660x720 mm |

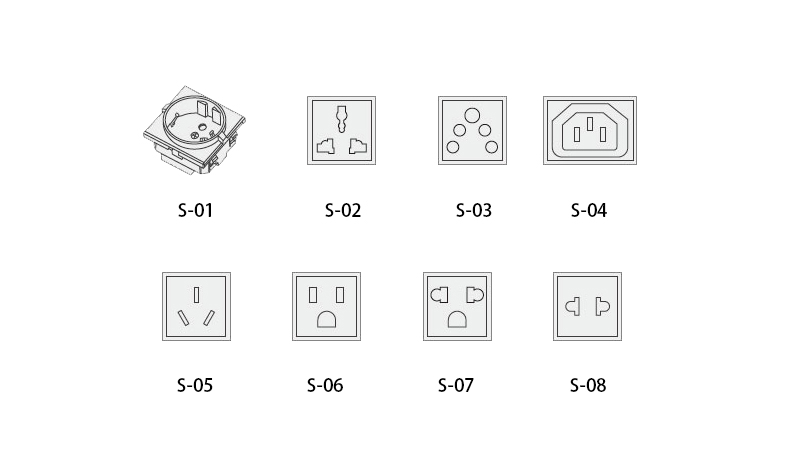

Output Socket Selection

Tips: ATO portable diesel generator advantages
Whether you are a field site or a suburban project, small diesel generators to provide you with quality portable power, solve your no power problem, let your project progress is not affected. ATO portable and silent diesel generator series (3KW, 5KW, 6KW, 7KW, 8KW, 10KW, 12KW...), according to your actual demand, buy the appropriate power generator set, to meet your outdoor project power demand, at the same time ultra-low fuel consumption, reduce your expenditure, is our daily life and engineering good partner. Our diesel engine has the following advantages.
- Fuel saving: Intelligent speed control technology can automatically match the engine speed according to the load condition, saving 11% fuel for users, and diesel is cheaper than gasoline.
- Small, portable: Machine with wheels, easy to move.
- Easy to buy the fuel: Diesel fuel easy to buy, unlimited, no requirements.
- Green: meet US environmental emission standards.
- Sustainability: a 15 or above litre tank lasts for 8-10 hours.
- When output, overload, engine oil volume is insufficient, the machine will remind.
- Enclosure type small diesel generator set, protect the machine in bad environment can work normally.
