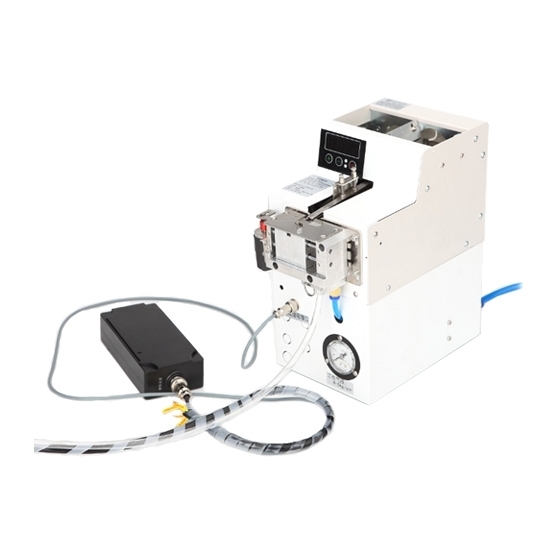

Automatic Screw Feeder Machine, Air-blowing Type

5 out of 5 based on 6 reviews | Write a review
$2,876.98
Air-blowing type automatic screw feeder machine, AC 100~240V working voltage, 50 watt rated power, adjustable 5~6kg.f/cm2 working pressure and 50~70pcs/min screw locking speed. Automatic screw feeder is suitable for locking various screws with 2.7~25mm total length, M1.0~M6.0 screw diameter, 1.0-12.0mm nut diameter.
*
*
*
*
SKU: ATO-ASF-H2
30-day Returns
Free Shipping
Delivery date: 6-12 days

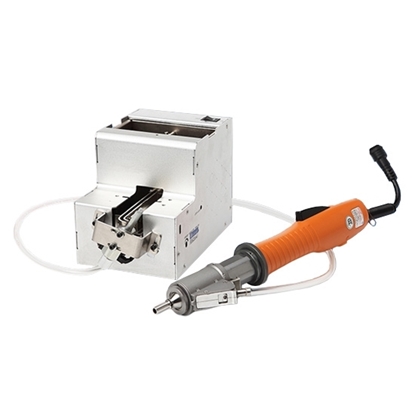

Automatic screw feeder machine mainly includes a air-blowing type screw feeding device and a handheld electric screwdriver. It can be used for locking screws in workpiece with 100mm depth hole. The working pressure, screwdriver torque and motor speed are all adjustable. The automatic screw feeder can automatically select and dispense screws. Its design not only enhances work efficiency but also diminishes the manual labor intensity.

Function:

  1. Air-blowing type automatic screw feeder machine with a lightweight design and compact structure can be placed above the workbench.
  2. There is no special skill required for the operator. The operator is easy to operate and not feel tired.
  3. Automatic screw feeder machine with high efficiency can increase the processing efficiency for 2-4 times and save 1-3 people for each machine, thereby quickly save production costs.
  4. Stable performance, long service life, no special maintenance is required. And occasional failure processing time does not exceed 1 minute, which will not delay production progress.

Specification:

Model ATO-CBD-668
Shipping weight 7kg
Packaging included 1 * Automatic screw feeding device
1 * Electric screwdriver
1 * Electric screwdriver assembly
1 * Feeding pipe
2 * Power adapter with cable
Power supply 100~240VAC, 50/60Hz, 1~2A
Rated power 50W
Screw feeding method Air-blowing type
Working pressure 5~6kg.f/cm2
Screw feeding speed 60~80pcs/min
Screw feeding distance 1.5~2m
Screw locking speed 50~70pcs/min (according to screw length)
Screw feeding device parameter Diameter: 320*145*270mm (L*W*H)
Working voltage: 15VDC (2000mA)
Weight: 5.5kg
Capacity of screw storage box 1000pcs of M3*8 screw (according to screw size)

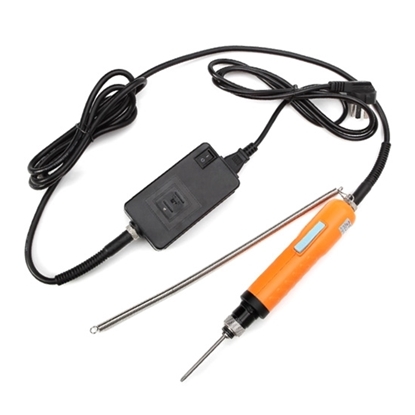

Screwdriver parameter Diameter: 230*42.5mm
Internal motor: Brushless DC motor
Motor speed: 1000-1800rpm
Working voltage: 32VDC (3A)
Torque range: 0.5-25Nm (torque can be adjusted)
Weight:750g
Types of screw * Material: all
Thread: M1.0~M6.0
Total length of screw: 2.7-25mm (total length of screw≥1.2 diameter of nut)
Diameter of nut: 1.0-12mm
Types of nut: See details as above types of nut diagram
Note: It is best to contact our customer service to confirm whether your screws are suitable for this model, especially nonstandard screws need to be given detailed dimensions and pictures.
Warranty 2 years

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Types of nut diagram:

Types of nut for handheld automatic screw feeder

Existing reviews of Automatic Screw Feeder Machine, Air-blowing Type
About automatic screw feeder
Does ATO-CBD-668 include the automatic screw feeder, or is it a separate item and we need to buy both at the same time?
From: Cyrillic | Date: 19/03/2025
Was this review helpful? Yes No (0/0)
ATO Responded
The automatic screw feeder is included, it is a complete set.
The rpm of the 3 gears of screw feeder machine
I would like to know the rpm of the 3 gears.
Is there anyway I can have the actual driver specs/info?
From: abel | Date: 01/03/2023
Was this review helpful? Yes No (0/0)
ATO Responded
The air screwdriver parameters of the screw machine are as follows:
Applicable screw size: 4-5mm
No-load speed: 9000rpm
Maximum torque: 50Nm
Maximum gas consumption: 0.25m³/min
Working pressure: 0.65Mpa.
We recommend using 8mm inner diameter air tubing.
The air screwdriver indirectly adjusts the speed and torque by adjusting the air intake.
Whether this require a custom tip for the screwdriver to work w/FG34 screw?
Would this set-up require a custom tip for the screwdriver to work w/FG34 screw?
Is there any way this could be trialed? This type of equipment is new to our business and will take management buy-in in order to fly.
From: tzivia | Date: 28/02/2023
Was this review helpful? Yes No (0/0)
ATO Responded
This gear setting is for the adjustment of the intake air volume.
The larger the air intake, the faster the speed and the greater the torque, but the speed and torque cannot be adjusted accurately.
