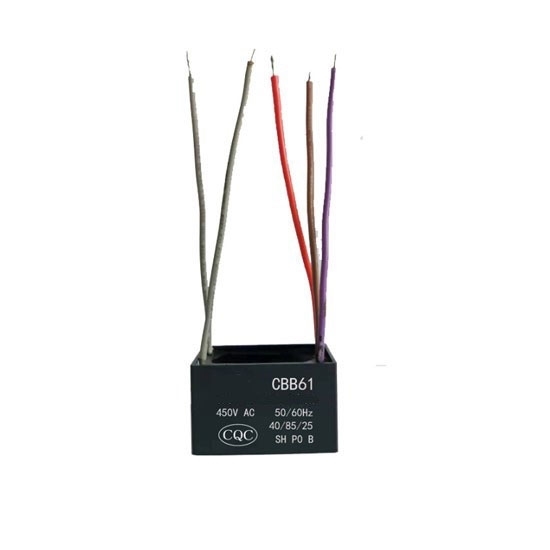

    450V Ceiling Fan Capacitor, 1.5μF+1.2μF+3μF

    450V 5 wire ceiling fan capacitor core is made of metalized organic film winding, capacity value 1.5μF+1.2μF+3μF, CBB61 capacitor can control the start and stop mechanism and fan speed of many different types of ceiling fan motors.
    SKU: ATO-FC-CBB61-15123
    This product has a minimum quantity of 100
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    CBB61 capacitors are suitable for starting and running of various electrical motors with 50/60Hz AC power supply, and also for speed regulation of motors, which is the best choice for replacing ceiling fan capacitors.


    • Model: ATO-FC-CBB61-15123
    • Capacity: 1.5μF+1.2μF+3μF
    • Rated Voltage: 450V/500V
    • Tolerance: ±5%
    • Withstand Voltage: 2. 0 Un (2s)
    • Loss: (DF)≤0.0010 100Hz
    • Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
    • Rated Frequency: 50/60Hz
    • Climate Category: 40/85/23
    • Scope of Application: Start, run
    • Appearance: Rectangular
    • Lead Out Method: Cord, pin, insert
    • Dielectric Material: Organic thin film
    • Dimension: 48(W) x 23(L) x 35(H)mm
    • Certificate: CE, CQC

    5 Wire Ceiling Fan Capacitor Connection Diagram

    Ceiling fan capacitor circuit diagram

    Tips: How to determine the capacitor damage of electric fans?

    If the capacitor is completely damaged and loses capacity, it will show that it cannot start, and the fan can start by plucking the fan blade with an object and run without any abnormality after starting.

    If the capacitor performance decreases, the performance is difficult to start, slow, and the sound when starting is significantly increased.

    This electric fan capacitor damage, it is recommended to ask a professional maintenance master to test and repair.
