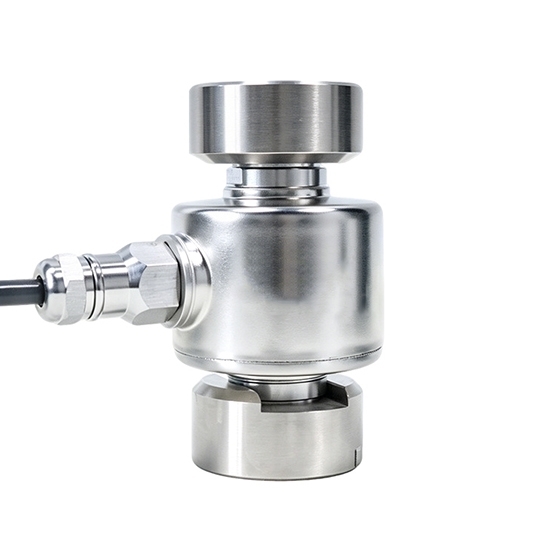

Column Compression Load Cell, Self-Restoring, 7.5 ton/15 ton/22.5 ton

Write a review

$326.85

Column compression load cell featuring a self-restoring design and 7.5 ton, 15 ton, and 22.5 ton capacities. With C3/C6 accuracy, 2.0 ± 0.002 mV/V sensitivity, IP68/69K sealing, and stainless steel construction, it suits heavy-load compression measurement.

Capacity *
With Transmitter *
With Display Controller *

SKU: ATO-LC-C611

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

The column type compression load cell is available in 7.5 ton, 15 ton, and 22.5 ton capacities, using a stainless steel elastic element and self-restoring structure for consistent compression force measurement. Continuous laser-welded sealing and a glass-sintered cable connection enhance durability in demanding industrial environments.

Specification

Model		ATO-DYC611
Maximum Capacity (Emax)		7.5 ton	15 ton		22.5 ton
Matched Transmitter		ATO-LCTR-OA (Click it to the transmitter page)
Matched Display Controller		ATO-DPM-DY800 (Click it to the controller page)
Minimum Static Load		0 kg
Sensitivity Output		2.0 ± 0.002 mV/V
Zero Load Output		±1% of Emax
Y-Value		10000
Accuracy Class₁₎₂₎		C3		C6
Repeatability Error		< ±0.010% of AL ₃₎		< ±0.005% of AL ₃₎
Creep; 30 min		< ±0.017% of AL		< ±0.0083% of AL
Minimum Dead Load Output Recovery (DR); 30 min		< ±0.017% of AL		< ±0.0083% of AL
Temperature Effect	Minimum Dead Load Output	< ±0.014% of Emax/°C		< ±0.0014% of Emax/°C
	Sensitivity Output ₂₎	< ±0.012% of AL/°C		< ±0.0006% of AL/°C
Temperature Range	Compensated Temperature	-10 to +40°C [14 to +104°F]
	Operating Temperature	-40 to +65°C [-40 to +149°F]
	Safe Storage Temperature	-40 to +80°C [-40 to +176°F]
Excitation Voltage	Recommended Range	5–15 V AC/DC
	Maximum Allowed	15 V AC/DC
Terminal Impedance	Input Resistance	1100 ± 5 Ω
	Output Resistance	1000 ± 3 Ω
Insulation Resistance @ 50 VDC		>5000 MΩ
Proof Voltage		>500 V AC
Sealing Type / IP Rating		Continuous laser-welded seal/ IP68/ 69K
Load Limit	Safe Load	150% of Emax
	Ultimate Load	300% of Emax
Material	Elastic Element	Stainless Steel
	Protective Housing	304 Stainless Steel, Continuous Laser-Welded
	Anti-Rotation Design	Parallel Double Flats (Top and Bottom Ends)
	Cable Connection	Glass Sintered Sealed Fixed Type
	Strain Gauge	PEEK-1000
	Cable Structure	Flame-Retardant, Cold-Resistant PVC, 6.5 mm OD; 4-Core Double-Shielded Cable; AWG24
Cable Length		12.0 m
Fatigue Life		>1,000,000 cycles @ Emax
Maximum Deformation(nominal)		<0.5 mm
Effect of Atmospheric Pressure on Zero		<1.0 Vmin/kPa
Weight(nominal)		1.8 kg

Notes:

1) This error includes both nonlinearity and hysteresis errors.
2) According to OIML R60 and NIST HB44, this represents the total effect after considering the combined error and the temperature effect on sensitivity.
3) AL = Applied Load.

Feature

Self-Restoring Design: The self-restoring column compression load cell returns to its original position after loading, helping maintain stable and repeatable weighing results.
IP68/IP69K Welded Sealing: The stainless steel welded construction offers IP68/IP69K protection against water and corrosion, making the load cell suitable for frequent high-pressure washing.
Stable Heavy-Load Performance: The compact column structure resists lateral forces and impact, while low creep helps maintain stable measurement output during long-term heavy-load weighing.
Multiple Load Capacities: Available in 7.5 ton, 15 ton, and 22.5 ton capacities, the ATO-DYC611 supports different heavy-load compression weighing requirements.
Versatile Industrial Applications: Suitable for tanks, silos, platform scales, filling systems, and process weighing, including food processing, pharmaceutical, and other demanding washdown environments.

Size (unit: mm)

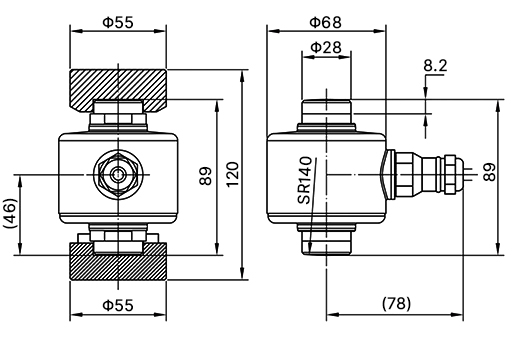

Column compression load cell size

Wiring

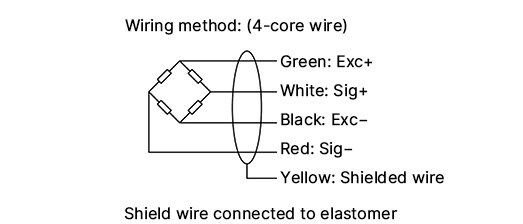

Column compression load cell wiring

Tips: How Can I Maintain Stable Readings From a Column Compression Load Cell?

Proper load alignment is essential for stable readings. Mount the column compression load cell on a rigid, level surface and keep the applied force centered along the sensing axis. Avoid excessive lateral forces, shock loads, and uneven contact between the load cell and mounting surfaces. For washdown applications, ensure that the mounting area and cable connection remain properly sealed to maintain the intended IP68/IP69K protection.
