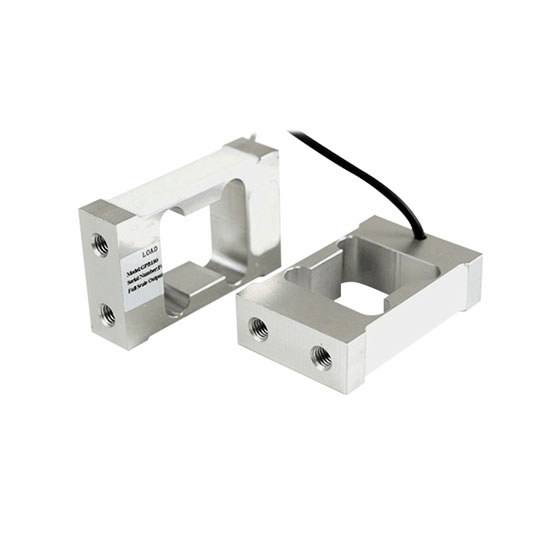

Parallel Beam Load Cell, Single Ponit, 4kg/8kg/10kg/15kg to 30kg

Write a review

$94.99

This parallel beam load cell with single ponit mounting, has optional capacities 4kg, 8kg, 10kg, 15kg, 20kg, and 30kg. The beam load cell belongs to the C3 accuracy class, offering high precision with a comprehensive accuracy of ±0.02% F.S. It adopts with a recommended excitation voltage of 5~12VDC and has a safe load limit of 150% F.S. High quality aluminum alloy, small range, high measurement accuracy, can be used in packaging machines and other occasions.

Measuring Range *
With Transmitter *
With Display Controller *

SKU: ATO-LC-GPB180

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

This single-point mounted parallel beam load cell is available in capacities of 4kg, 8kg, 10kg, 15kg, 20kg, and 30kg. It features a C3 accuracy class with a precision of ±0.02% F.S, and operates with an excitation voltage range of 5~12VDC.

Specification

Model	ATO-GPB180
Measuring Range	4kg, 8kg, 10kg, 15kg, 20kg, 30kg (optional)
Matched Transmitter	ATO-LCTR-OA (Click it to the transmitter page)
Matched Display Controller	ATO-DPM-DY800 (Click it to the controller page)
Accuracy Class	C3
Comprehensive Accuracy	±0.02% F.S
Sensitivity	2.0±0.2 mV/V
Zero Output	±2.0% F.S
Non-Linearity Error	±0.02% F.S
Hysteresis Error	±0.02% F.S
Repeatability Error	±0.02% F.S
Creep	0.02% F.S/30min
Input Impedance	406 ± 6Ω
Output Impedance	350 ± 3Ω
Output Temperature Effect	±0.02% F.S/10°C
Zero Temperature Effect	±0.02% F.S/10°C
Temperature Compensation Range	-10~+40°C
Operating Temperature Range	-35~+70°C
Maximum Excitation Voltage	18VDC
Recommended Excitation Voltage	5~12VDC
Safe Load Limit	150% F.S
Ultimate Load Limit	200% F.S
Insulation Resistance	≥5000MΩ (50VDC)
Cable Type	Four-core shielded cable
Cable Length	φ3.8 × effective length 150mm
Protection Level	IP65
Wiring Definition	Excitation +: Red, Excitation -: Black
Wiring Definition	Signal +: Green, Signal -: White

Feature

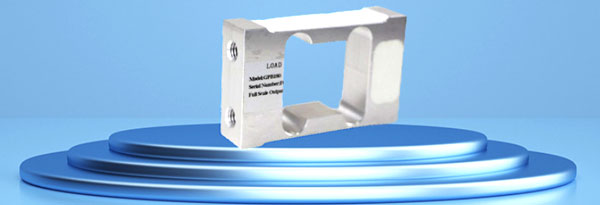

Parallel beam load cell feature

Durable Aluminum Alloy Construction: Parallel beam load cell made from high-quality aluminum alloy with an anodized surface, offering corrosion resistance and long-term durability.
Single-Point Design: Designed for one-side fixed, one-side loading installation, ensuring stable and accurate measurements.
Wide Capacity Range: Available in 4kg, 8kg, 10kg, 15kg, 20kg, and 30kg capacities, meeting diverse weighing needs.
Compact Size: The beam load cell supports a maximum platform size of 200 × 200mm, making it suitable for space-limited applications.
Parallel Beam Structure: Enhances load distribution and minimizes measurement errors.
Versatile Applications: Commonly used in automated weighing systems, packaging machines, and industrial weighing solutions.

Wiring Diagram and Dimension (unit: mm)

Parallel beam load cell wiring diagram and dimension

Application

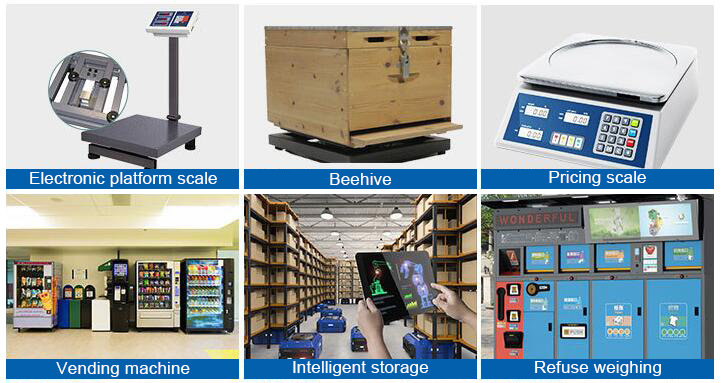

Digital load cell application

Tips: What are the advantages of using a parallel beam structure?

The parallel beam structure improves accuracy and stability in weighing applications. It helps distribute force evenly, reducing errors in measurement. This design also lowers the impact of off-center loading, making it ideal for small weighing systems. It resists mechanical stress and vibrations, keeping weight readings steady over time. The structure is highly sensitive and does not bend easily, ensuring reliable performance. Made from lightweight aluminum alloy, it is strong and durable. This makes it a great choice for automated weighing, retail scales, and industrial weight tracking.
