Compression Button Load Cell 5kg/10kg/20kg/30kg/50kg/100kg

5 out of 5 based on 4 reviews | Write a review

$131.75

Button load cell is a compression load cell with a diameter 10mm. It has capacity range from 5kg, 10kg, 20kg, 30kg, 50kg to 100kg. Button load cell can be used for 3C product testing, medical testing, automated equipment testing, etc. It can also be customized for the high-temperature working condition.

Capacity *
With Display Controller *
With Transmitter *

SKU: ATO-LC-BU02

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

A compression button load cell is a precision measuring device primarily used to measure small changes in weight or pressure. When an external force acts on the sensor, the metal structure will undergo slight deformation, which will cause the strain gauge to output a weak electrical signal. This electrical signal is then amplified, filtered and analyzed by a data acquisition system, and ultimately converted into a readable numerical or graphical display.

Button load cells have capacity range from 5kg, 10kg, 20kg, 30kg, 50kg to 100kg. Load cell capacity can be customized according to customer requirements.

Specification

Model	ATO-LCBU-DYHW-110
Shipping Weight	1kg
Capacity Range *	0~100kg
Matched Display Controller	ATO-DPM-DY800 (Click it to the controller page)
Matched Transmitter	ATO-LCTR-OA (Click it to the transmitter page)
Accuracy	0.5%F.S (linearity + hysteresis + repeatability)
Sensitivity	1.0m±20%mV/V (Low range variations may differ)
Creep	±0.1%F.S/30min
Zero Output	±2%F.S
Temperature Effect on Zero	±0.2%F.S/10℃
Temperature Effect on Output	±0.2%F.S/10℃
Operating Temperature	-20℃~+80℃
Input Impedance	350Ω
Output Impedance	500Ω
Insulation Resistance	≥5000MΩ
Safety Overload	150%F.S
Bridge Voltage (excitation voltage)	DC 5-15V
Material	Stainless steel
Protection Class	IP66
Cable Length	2m
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

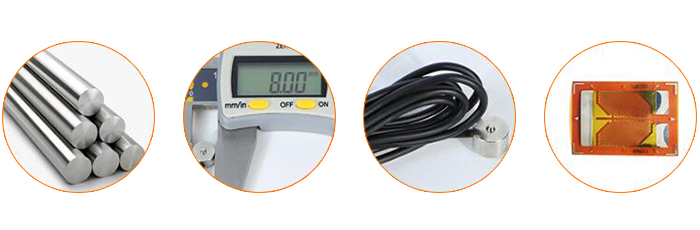

Feature

Compact & Versatile: Small size, easy integration, and multiple size options for diverse needs.
High Accuracy: Delivers precise and consistent measurements.
Reliable & Stable: Ensures dependable performance for long-term use.
Effortless Installation: Quick and simple setup, saving time.
Durable Build: Made with robust 17-4 PH stainless steel for strength and longevity.
Resistant to Harsh Conditions: Withstands heat and wear, maintaining stable performance.
Long-lasting: Provides durable, stable, and accurate measurements over time.
Superior Wiring: 2.0mm diameter wires designed to resist pulling and weathering.
Precision Sensing: High-accuracy sensing chip for reliable measurements in various environments.

Dimension (unit: mm)

Wiring Method

Application

Tips: How do I select the right compression button load cell?

The following factors should be considered when making a selection:

Load capacity: Ensure that the load cell selected is suitable for measuring the maximum load required.
Accuracy requirements: Different applications require different accuracy levels.
Operating environment: such as temperature, humidity and chemical exposure, select a load cell that is corrosion, vibration or high temperature resistant.
Output type: Select the appropriate type of signal output (e.g. analog or digital) for the needs of the device or system.

In this video, ATO will show you how to wire a strain gauge load cell with a display controller.

Low Profile Micro Compression Button Load Cell 100kg
This video introduces the specs, design features and applications of a low profile miniature button load cell DYHW-110 that's intended for compression force measurement. The maximum load capacity it can bear is 100kg. It can achieve 0.5%F.S accuracy with 150%F.S safety overload and temperature compensation.

Shear Beam Load Cell | Single & Double-Ended, Weighbridge Load Cells

The shear beam load cell is a common load cell. Its working principle is based on the deformation of the elastomer when it is acted upon by an external force. This deformation will cause the resistance of the elastomer to change, thereby achieving the measurement of the external force. It is typically used to measure forces in the small to medium range and its working principle is based on the shear effect of elastically deforming materials. This type of force measuring element is usually made of metal or polymer materials. Because of its high elastic modulus and shear modulus, it can produce stable shear deformation when subjected to external forces.

How to Ensure the Accuracy of Your Weighing System?

This video describes five factors that affect the accuracy of a weighing system and provides recommendations for selecting, installing, and operating the system to handle these factors.

Load Cell Transmitter 4~20mA Output Calibration

This video demonstrates how to calibrate the 4~20mA output. The 0~10V is also calibrated in the same way.

How Does PLC Read Data of Load Cell Transmitter?

In this video, it shows how PLC reads data from sensor transmitter. This system mainly consists of PLC, ATO load cell transmitter, ATO load cell, 24VDC power supply, personal computer, etc.

How to Make Your Load Cell Transmitter Work More Accurately

In this video, we've shown you how to calibrate the weight transmitter Model 610 by ATO using a compression load cell so that you can make sure you get the most accurate readings possible in your measurement.

CHB Load Cell Controller Calibration | Compensation Factor Calculation

In this video, we will walk you through the calibration procedure of ATO's CHB series load cell controller and how to calculate the compensation factor for your specific load cell so as to improve measurement accuracy. Hope you'll find it helpful.

How to Test for Faults in Load Cells?

As the most essential as well as vulnerable part of an electronic weighing system, load cells might get damaged for many different reasons. How can you determine whether a load cell is at fault? This video is gonna smooth out this problem by showing you several basic field tests that can be performed on site and provides the information necessary to interpret the results.

Load Cell Transmitter with Output 0-5V/0-10V/4-20mA/0-20mA

This intro video describes the features of ATO-DY510 load cell transmitter as well as its specifications. Housed in aluminum alloy case and CE-certified, the transmitter can connect to single or up tp 4 load cells at built-in excitation voltage from 5V to 15V DC. Powered from 18-30V DC supplies, this high precision weight transmitter can accept a 0-20mV full scale input range and convert the low strength signal into a 0-5V/0-10V/4-20mA/0-20mA output.

Cabled Tension Load Cell for Crane & Hoist Weighing Systems

In this introduction video, we've covered what the TJL-7 is, its specifications and some of the benefits that make it unique. This crane weigher is a strain gauge based alloy steel tension load cell designed with openings at either end. It has a high accuracy (0.03-0.05 F.S.) over a large and wide measurement range from 2t to 200t. Environmentally sealed to IP67, the crane load cell can withstand up to 150% safe overload.

Universal Miniature Compression & Tension Load Cell

In this video, we've presented two types of general-purpose micro load cells from ATO that can measure both compression and tensile forces. The capacitiy ranges are 1kg to 500kg (DYMH-103), 3kg to 500kg (DYMH-106). Both are made of nickle-plated stainless steel, featuring corrosion-resistant and rugged construction. Incorporating metal foil strain gauging, these precision load cells will deliver excellent stability, reliability and accuracy under various industrial circumstances.

Existing reviews of Compression Button Load Cell 5kg/10kg/20kg/30kg/50kg/100kg

Mounting for Compression Loadcell

The photo, pdf catalogue, and drawing don't clarify this, but what is the mounting for this compression/button-type loadcell (SKU: ATO-LC-BU02)? Press fit? Single M6 bolt concentric with the center of the loadcell? 3 M3 screws circularly patterned at x diameter?

From: Spencer | Date: 18/04/2023

Was this review helpful? Yes No (0/0)

ATO Responded

Its installation method is mosaic, please consult our technical team for specific installation details.

Load cell wiring

The question is about the ends of the sensors. One sensor has all 4 wires and a shielding wire. The other has no shielding wire and seems to be taped up. Is this something to be concerned about?

From: Ailsa | Date: 30/05/2022

Was this review helpful? Yes No (0/0)

ATO Responded

The lack of shielded wire will have no effect. You can leave the shielded wire unconnected, and the sensor can be used normally.

Use of load cell

Will your compression and tension load cell like SKU: ATO-LC-P02 work for both tension and compression for the same application/installation?
If yes, then what will be the difference if it is subjected to tension then to compression for the same application/installation?

From: Stevene | Date: 27/09/2021

Was this review helpful? Yes No (0/0)

ATO Responded

Yes, the load cell SKU: ATO-LC-P02 can work for both tension and compression in the same application/installation.
Its output signal has positive and negative points (maybe the tension is +, and the compression is -), if you switch the SIGN+/SING- wiring of the weighing sensor, you can switch this ±.
So when the sensor outputs 0V, it corresponds to zero load, and when it outputs ± 20mV, it corresponds to full tension or compression.

About compression button load cell

I just called asking if we would also get the cable of the load cell together with the ordered items? Will the load cell come precalibrated?

From: Carla | Date: 22/04/2021

Was this review helpful? Yes No (0/0)

ATO Responded

1. Yes, 2 meter cable is attached with the load cell.
2. The load cell will be calibrated before leaving the factory.
