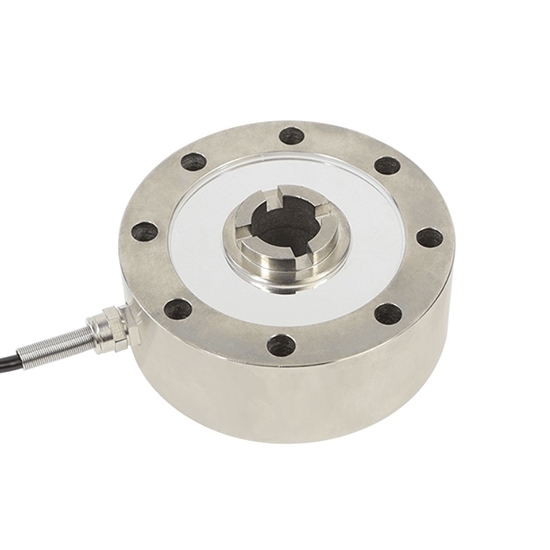

Precision Low Profile Load Cell, Spoke Type, 0-100KN

After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

High quality low profile spoke type load cell made of 42CrMo alloy steel, with 0-100KN capacity (optional 10/20/30/50/100KN), 10kHz response, and -20~80℃ range. Supports 120% safe and 150% ultimate overload, perfect for industrial weighing and automation.

The force measuring load cell itself outputs a mv signal, which is too small to be used directly and needs to be passed through an amplifier or an instrument before it can be used. After purchasing one precision low profile load cell, you can buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Specification

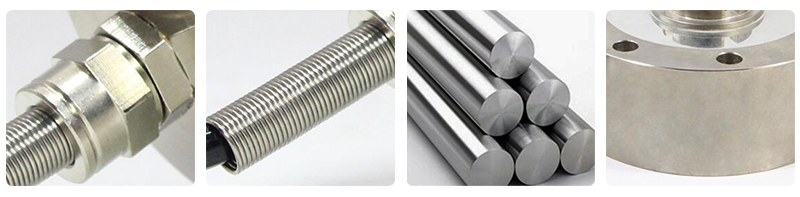

Feature

• High Accuracy, Stability, and Durability: Provides precise measurements with consistent performance, made from 42CrMo alloy steel for long-term reliability in harsh conditions.
• Anti-Interference Capability: Ensures reliable functionality against electromagnetic and mechanical disturbances.
• Wide Application Range: Ideal for crane scales, rail scales, and industrial automation systems.
• Waterproof Design: Includes a six-sided waterproof connector and durable cable protection.
• Bidirectional Measurement: Supports both tensile and compressive load measurements effectively.
• Optional TEDS Support: Integrates with Transducer Electronic Data Sheets for enhanced functionality.
• Wide Operating Temperature: Performs reliably between -20°C and 80°C for various industrial applications.

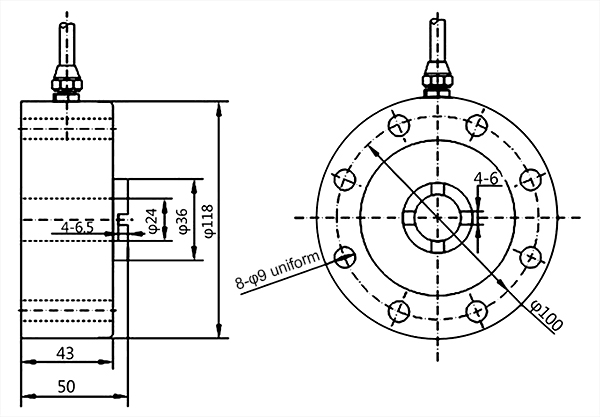

Dimension (unit: mm)

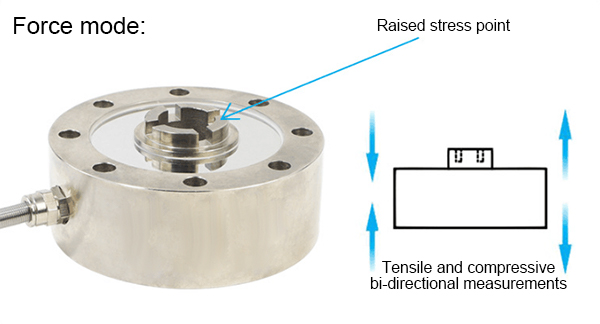

Force mode

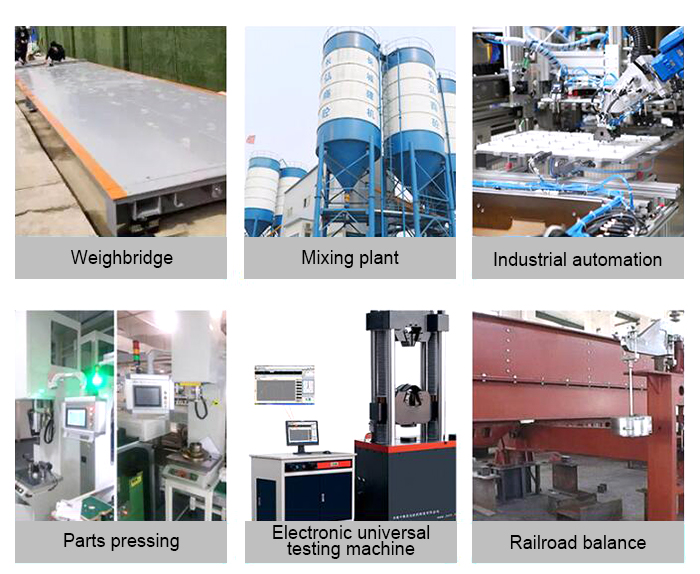

Application

Tips: What are the advantages of the spoke-type design?
